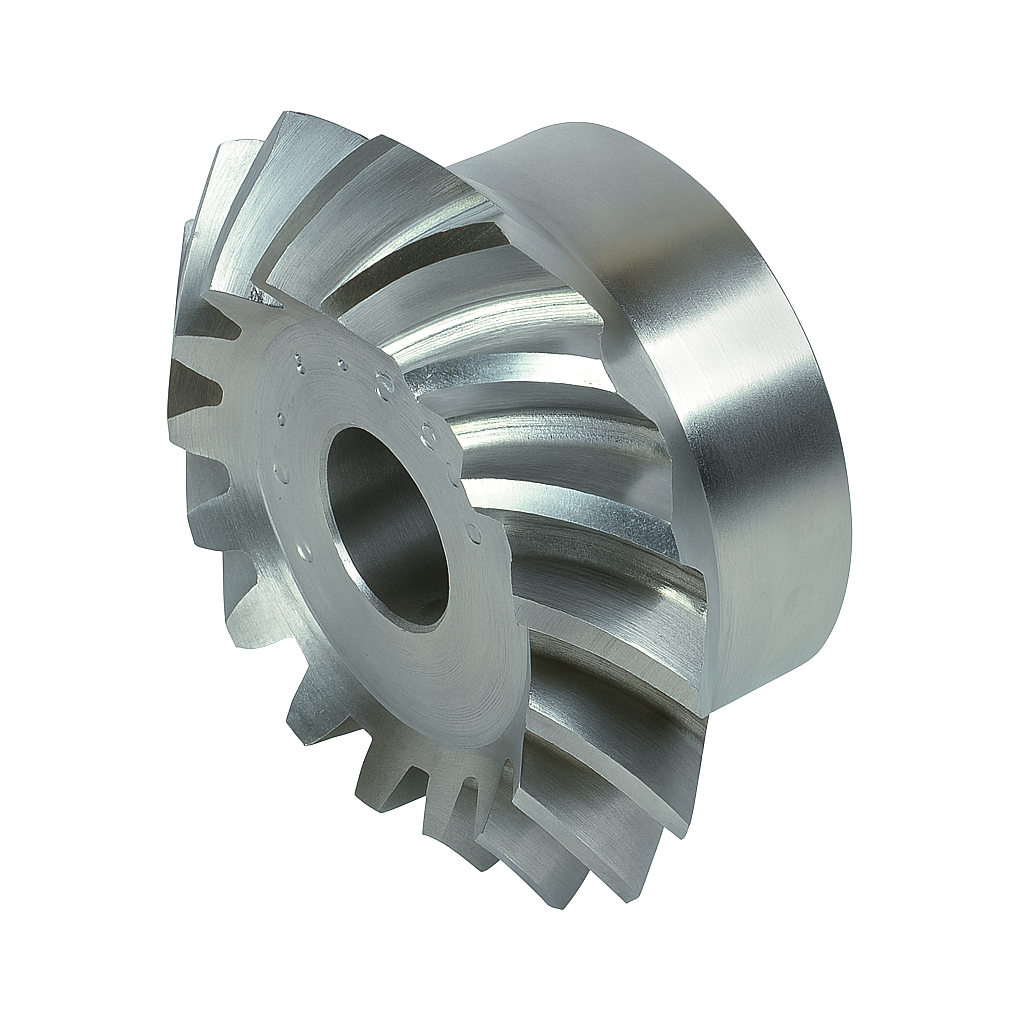

Chiaravalli Spiral Bevel Gear M4 1:2
Chiaravalli

Spiral Bevel Gear M4 1:2

Bevel Gears · M4 1:2

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31401216 16 64 mm 50 mm 20 mm 20 mm 71.5 mm 13.5 mm 32.2 mm 36.2 mm 81 -0,102 / -0,152 0.52 kg
31401232 32 128 mm 80 mm 20 mm 20 mm 129 mm 23 mm 38.7 mm 44.2 mm 66 -0,102 / -0,152 2.21 kg

Product Information

Module (m)
4.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:2
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M4 1:2
  • spiral bevel M4
  • M4 ratio 1:2 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
