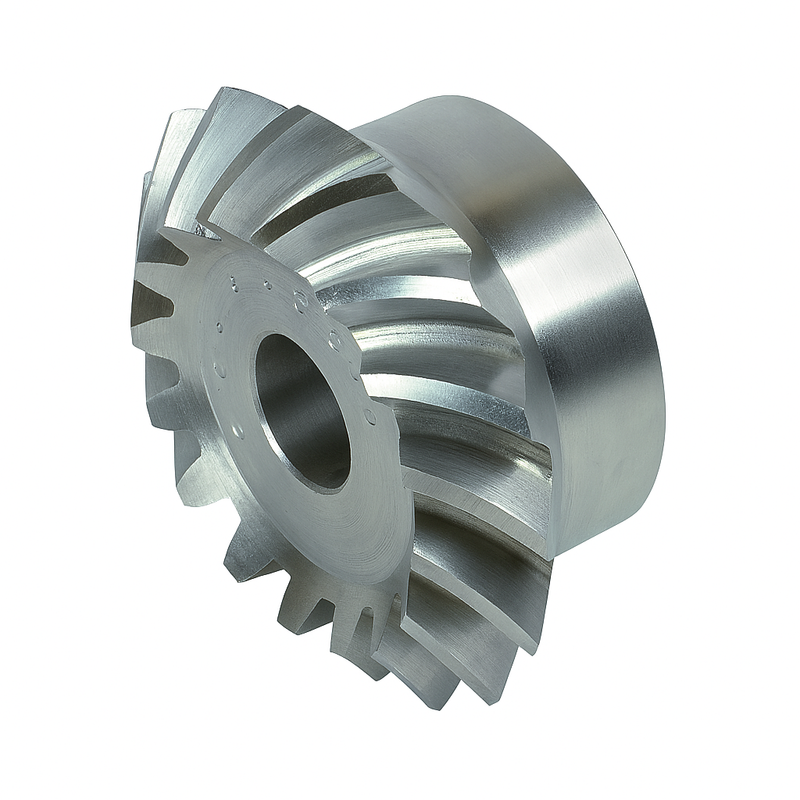

Chiaravalli Spiral Bevel Gear M5 1:1
Chiaravalli

Spiral Bevel Gear M5 1:1

Bevel Gears · M5 1:1

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31501117 16 80 mm 60 mm 20 mm 17 mm 85 mm 18.9 mm 35.5 mm 41.9 mm 68 0.88 kg
31501116 16 80 mm 60 mm 20 mm 17 mm 85 mm 18.9 mm 35.5 mm 41.9 mm 68 0.88 kg
31501121 20 100 mm 70 mm 20 mm 21 mm 105 mm 18.5 mm 37.7 mm 44.8 mm 78 -0,127 1.47 kg
31501120 20 100 mm 70 mm 20 mm 21 mm 105 mm 18.5 mm 37.7 mm 44.8 mm 78 -0,127 1.47 kg
31501126 25 125 mm 90 mm 20 mm 26 mm 130 mm 18.5 mm 41.8 mm 47.8 mm 90 -0,178 2.67 kg
31501125 25 125 mm 90 mm 20 mm 26 mm 130 mm 18.5 mm 41.8 mm 47.8 mm 90 -0,178 2.67 kg
31501131 30 150 mm 110 mm 30 mm 32 mm 155 mm 18 mm 45.7 mm 52.5 mm 103 4.25 kg
31501130 30 150 mm 110 mm 30 mm 32 mm 155 mm 18 mm 45.7 mm 52.5 mm 103 4.25 kg

Product Information

Module (m)
5.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:1
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M5 1:1
  • spiral bevel M5
  • M5 ratio 1:1 bevel
