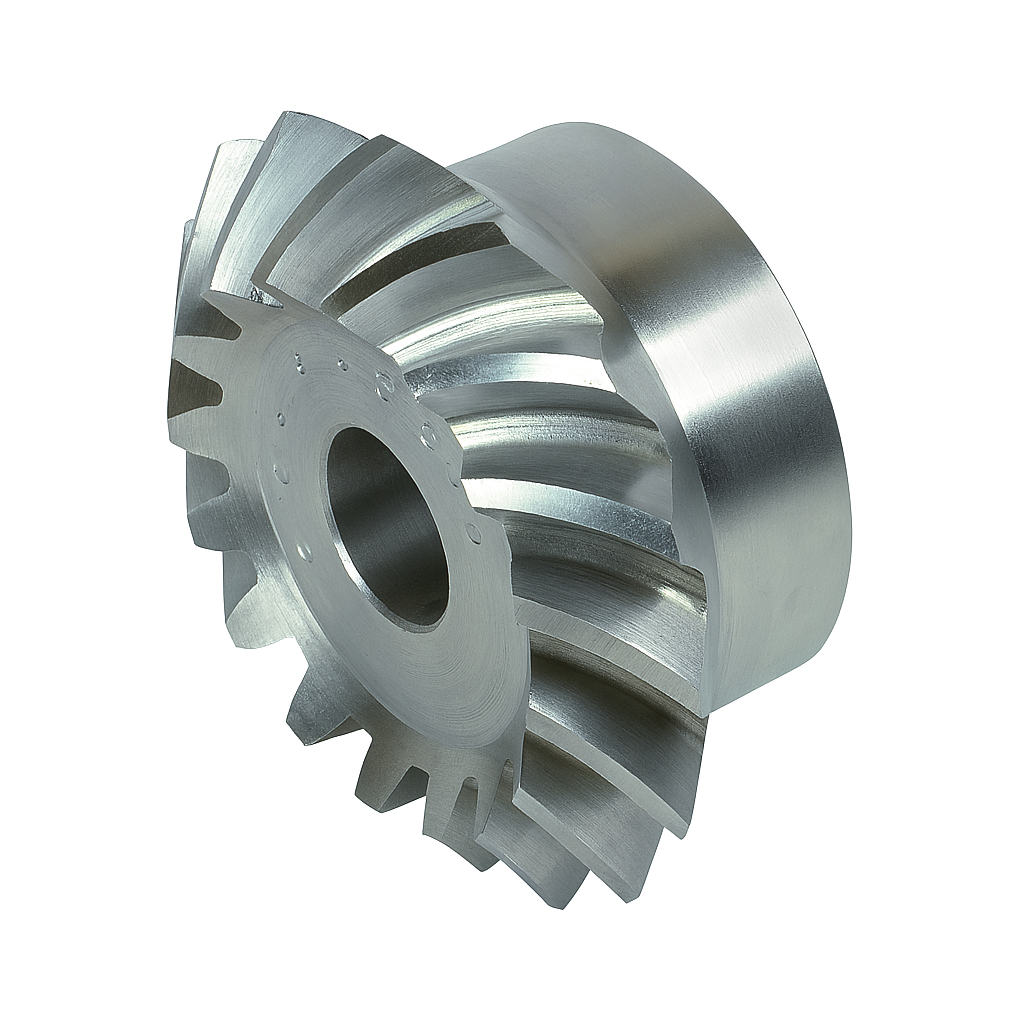

Chiaravalli Spiral Bevel Gear M5 1:2
Chiaravalli

Spiral Bevel Gear M5 1:2

Bevel Gears · M5 1:2

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31501216 16 80 mm 60 mm 20 mm 25 mm 89.5 mm 21 mm 45.3 mm 50 mm 106 -0,127 / -0,178 1.16 kg
31501232 32 160 mm 90 mm 25 mm 25 mm 162 mm 27 mm 46.8 mm 53.7 mm 81 -0,127 / -0,178 2.79 kg

Product Information

Module (m)
5.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:2
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M5 1:2
  • spiral bevel M5
  • M5 ratio 1:2 bevel
