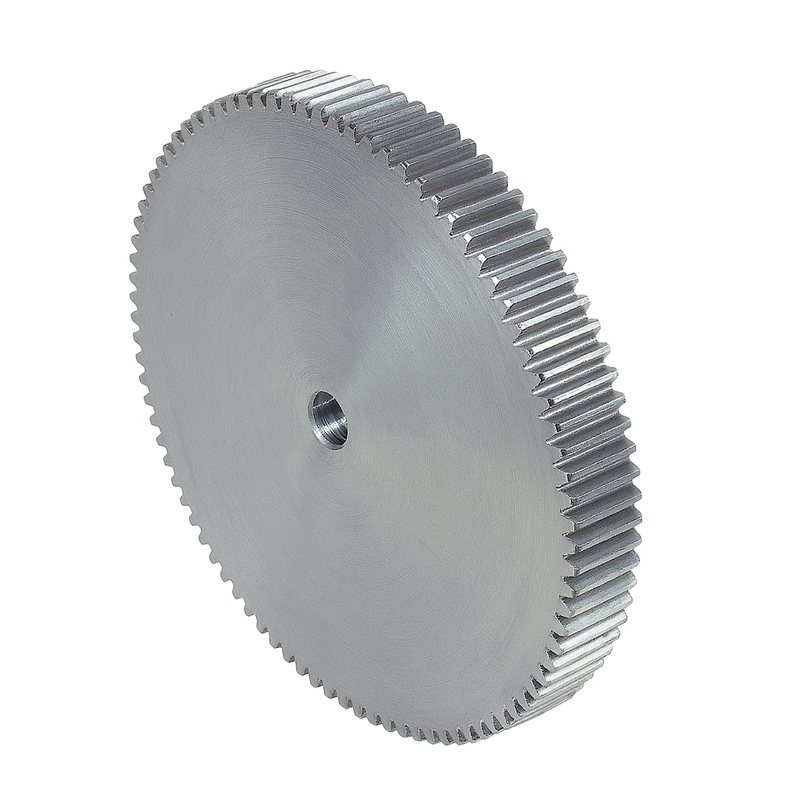

Chiaravalli Spur Gear M1.5 Without Hub
Chiaravalli

Spur Gear M1.5 Without Hub

Spur Gears · M1.5

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30215072 72 111 mm 108 mm 20 mm 1.19 kg
30215075 75 115.5 mm 112.5 mm 20 mm 1.3 kg
30215076 76 117 mm 114 mm 20 mm 1.33 kg
30215080 80 123 mm 120 mm 20 mm 1.48 kg
30215085 85 130.5 mm 127.5 mm 20 mm 1.67 kg
30215090 90 138 mm 135 mm 20 mm 1.78 kg
30215095 95 145.5 mm 142.5 mm 20 mm 2.09 kg
30215100 100 153 mm 150 mm 20 mm 2.32 kg
30215110 110 168 mm 165 mm 20 mm 2.82 kg
30215114 114 174 mm 171 mm 20 mm 3.03 kg
30215120 120 183 mm 180 mm 20 mm 3.36 kg
30215127 127 193.5 mm 190.5 mm 20 mm 3.77 kg

Product Information

Module (m)
1.5
Pressure Angle (α)
20°
Face Width (B)
17.0 mm
Total Width (A)
30.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M1.5
  • module 1.5 spur gear
  • M1.5 Z spur gear without hub
