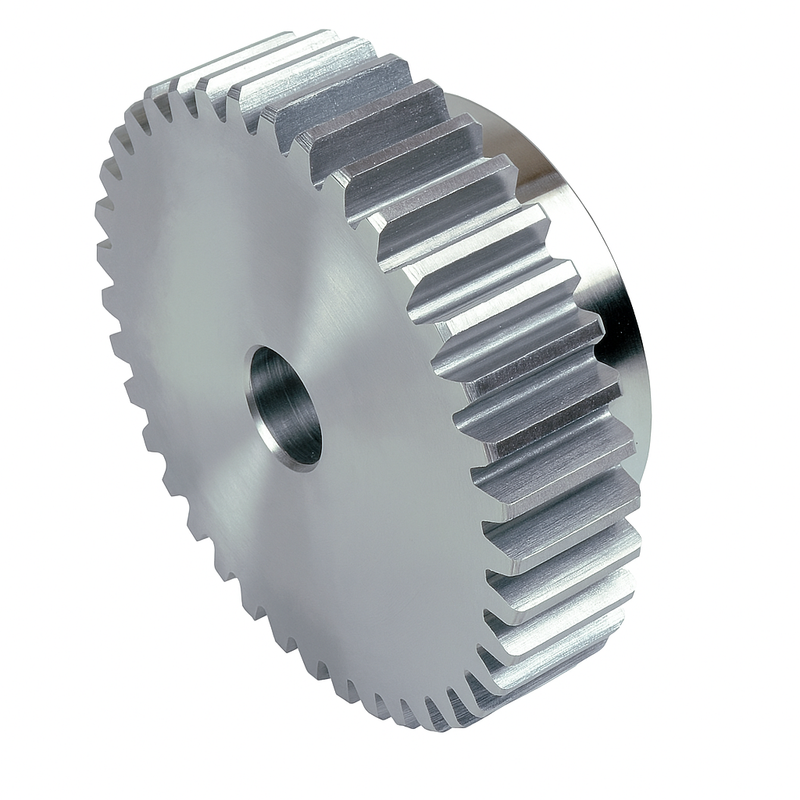

Chiaravalli Spur Gear M2.5 With Hub
Chiaravalli

Spur Gear M2.5 With Hub

Spur Gears · M2.5

Product Configuration

Select a row to add it to your quote

Code ZdedpdmØD1 Weight CAD
30125012 12 35 mm 30 mm 22 mm 10 mm 0.17 kg
30125013 13 37.5 mm 32.5 mm 25 mm 10 mm 0.21 kg
30125014 14 40 mm 35 mm 28 mm 10 mm 0.25 kg
30125015 15 42.5 mm 37.5 mm 30 mm 10 mm 0.3 kg
30125016 16 45 mm 40 mm 32 mm 12 mm 0.33 kg
30125017 17 47.5 mm 42.5 mm 35 mm 12 mm 0.38 kg
30125018 18 50 mm 45 mm 35 mm 12 mm 0.42 kg
30125019 19 52.5 mm 47.5 mm 35 mm 12 mm 0.45 kg
30125020 20 55 mm 50 mm 40 mm 14 mm 0.54 kg
30125021 21 57.5 mm 52.5 mm 40 mm 14 mm 0.56 kg
30125022 22 60 mm 55 mm 45 mm 14 mm 0.66 kg
30125023 23 62.5 mm 57.5 mm 45 mm 14 mm 0.7 kg
30125024 24 65 mm 60 mm 45 mm 14 mm 0.74 kg
30125025 25 67.5 mm 62.5 mm 50 mm 14 mm 0.85 kg
30125026 26 70 mm 65 mm 50 mm 14 mm 0.9 kg
30125027 27 72.5 mm 67.5 mm 50 mm 14 mm 0.95 kg
30125028 28 75 mm 70 mm 50 mm 14 mm 1.0 kg
30125029 29 77.5 mm 72.5 mm 50 mm 14 mm 1.06 kg
30125030 30 80 mm 75 mm 55 mm 16 mm 1.18 kg
30125031 31 82.5 mm 77.5 mm 55 mm 16 mm 1.22 kg
30125032 32 85 mm 80 mm 55 mm 16 mm 1.28 kg
30125033 33 87.5 mm 82.5 mm 55 mm 16 mm 1.34 kg
30125034 34 90 mm 85 mm 55 mm 16 mm 1.41 kg
30125035 35 92.5 mm 87.5 mm 60 mm 16 mm 1.54 kg
30125036 36 95 mm 90 mm 60 mm 16 mm 1.61 kg
30125037 37 97.5 mm 92.5 mm 60 mm 16 mm 1.68 kg
30125038 38 100 mm 95 mm 60 mm 16 mm 1.75 kg
30125039 39 102.5 mm 97.5 mm 60 mm 16 mm 1.83 kg
30125040 40 105 mm 100 mm 70 mm 20 mm 2.06 kg
30125041 41 107.5 mm 102.5 mm 70 mm 20 mm 2.14 kg
30125042 42 110 mm 105 mm 70 mm 20 mm 2.22 kg
30125043 43 112.5 mm 107.5 mm 70 mm 20 mm 2.3 kg
30125044 44 115 mm 110 mm 70 mm 20 mm 2.38 kg
30125045 45 117.5 mm 112.5 mm 70 mm 20 mm 2.47 kg
30125046 46 120 mm 115 mm 70 mm 20 mm 2.52 kg
30125047 47 122.5 mm 117.5 mm 80 mm 20 mm 2.8 kg
30125048 48 125 mm 120 mm 80 mm 20 mm 2.88 kg
30125049 49 127.5 mm 122.5 mm 80 mm 20 mm 2.98 kg
30125050 50 130 mm 125 mm 80 mm 20 mm 3.07 kg
30125051 51 132.5 mm 127.5 mm 90 mm 20 mm 3.17 kg
30125052 52 135 mm 130 mm 90 mm 20 mm 3.48 kg
30125053 53 137.5 mm 132.5 mm 90 mm 20 mm 3.58 kg
30125054 54 140 mm 135 mm 90 mm 20 mm 3.68 kg
30125055 55 142.5 mm 137.5 mm 90 mm 20 mm 3.78 kg
30125056 56 145 mm 140 mm 100 mm 20 mm 4.13 kg
30125057 57 147.5 mm 142.5 mm 100 mm 20 mm 4.23 kg
30125058 58 150 mm 145 mm 100 mm 20 mm 4.34 kg
30125059 59 152.5 mm 147.5 mm 100 mm 20 mm 4.46 kg
30125060 60 155 mm 150 mm 100 mm 20 mm 4.57 kg

Product Information

Module (m)
2.5
Pressure Angle (α)
20°
Face Width (B)
25.0 mm
Total Width (A)
40.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M2.5
  • module 2.5 spur gear
  • M2.5 Z spur gear with hub
