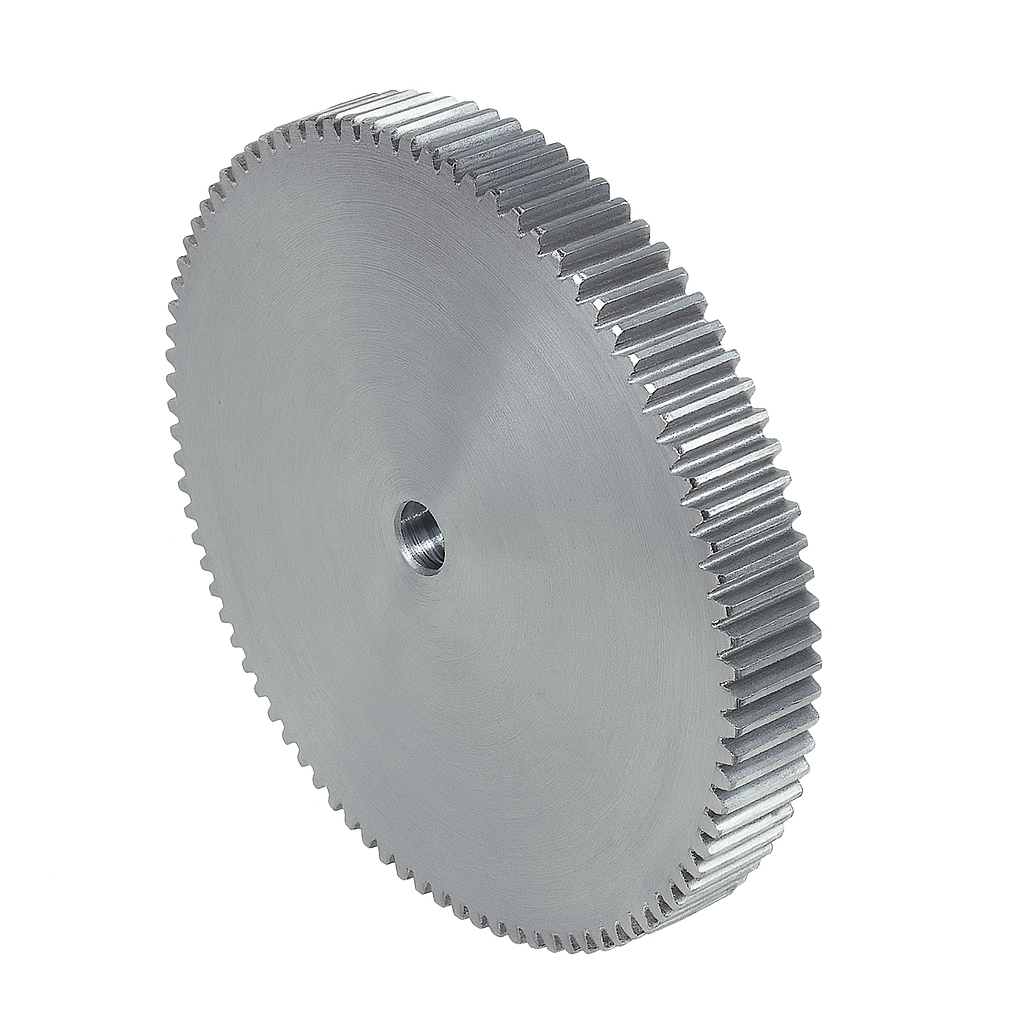

Chiaravalli Spur Gear M2.5 Without Hub
Chiaravalli

Spur Gear M2.5 Without Hub

Spur Gears · M2.5

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30225065 65 167.5 mm 162.5 mm 20 mm 3.99 kg
30225070 70 180 mm 175 mm 20 mm 4.64 kg
30225072 72 185 mm 180 mm 20 mm 4.91 kg
30225075 75 192.5 mm 187.5 mm 20 mm 5.33 kg
30225076 76 195 mm 190 mm 20 mm 5.48 kg
30225080 80 205 mm 200 mm 25 mm 6.04 kg
30225085 85 217.5 mm 212.5 mm 25 mm 6.84 kg
30225090 90 230 mm 225 mm 25 mm 7.68 kg
30225095 95 242.5 mm 237.5 mm 25 mm 8.57 kg
30225100 100 255 mm 250 mm 25 mm 9.51 kg
30225110 110 280 mm 275 mm 25 mm 11.53 kg
30225114 114 290 mm 285 mm 25 mm 12.39 kg
30225120 120 305 mm 300 mm 25 mm 13.74 kg
30225127 127 322.5 mm 317.5 mm 25 mm 15.4 kg

Product Information

Module (m)
2.5
Pressure Angle (α)
20°
Face Width (B)
25.0 mm
Total Width (A)
40.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M2.5
  • module 2.5 spur gear
  • M2.5 Z spur gear without hub

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
