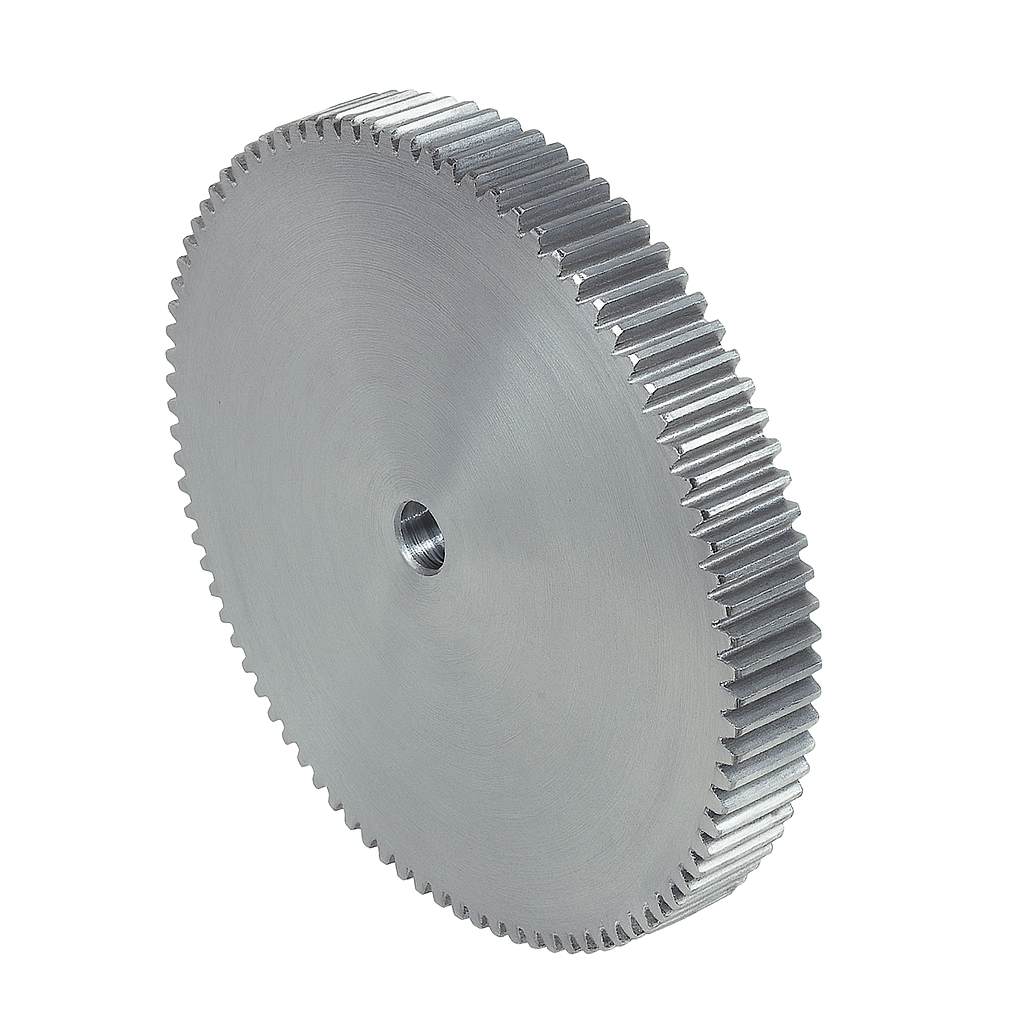

Chiaravalli Spur Gear M2 Without Hub
Chiaravalli

Spur Gear M2 Without Hub

Spur Gears · M2

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30220072 72 148 mm 144 mm 20 mm 2.5 kg
30220075 75 154 mm 150 mm 20 mm 2.61 kg
30220076 76 156 mm 152 mm 20 mm 2.79 kg
30220080 80 164 mm 160 mm 20 mm 3.09 kg
30220085 85 174 mm 170 mm 20 mm 3.5 kg
30220090 90 184 mm 180 mm 20 mm 3.93 kg
30220095 95 194 mm 190 mm 20 mm 4.39 kg
30220100 100 204 mm 200 mm 20 mm 4.87 kg
30220110 110 224 mm 220 mm 20 mm 5.9 kg
30220114 114 232 mm 228 mm 20 mm 6.34 kg
30220120 120 244 mm 240 mm 20 mm 7.03 kg
30220127 127 258 mm 254 mm 20 mm 7.89 kg

Product Information

Module (m)
2.0
Pressure Angle (α)
20°
Face Width (B)
20.0 mm
Total Width (A)
35.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M2
  • module 2 spur gear
  • M2 Z spur gear without hub

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
