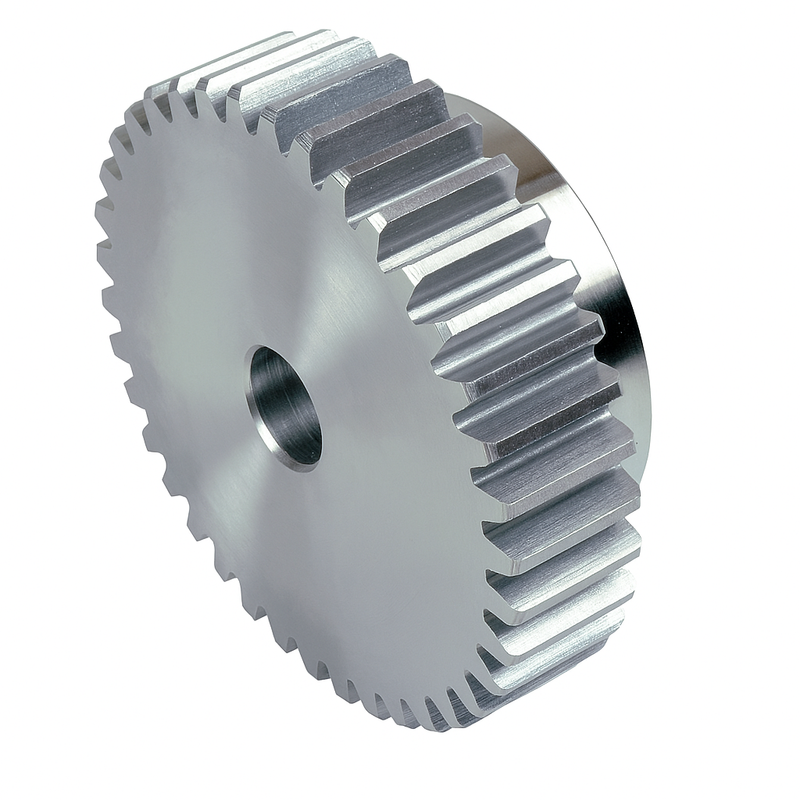

Chiaravalli Spur Gear M3 With Hub
Chiaravalli

Spur Gear M3 With Hub

Spur Gears · M3

Product Configuration

Select a row to add it to your quote

Code ZdedpdmØD1 Weight CAD
30130012 12 42 mm 36 mm 25 mm 12 mm 0.28 kg
30130013 13 45 mm 39 mm 25 mm 12 mm 0.34 kg
30130014 14 48 mm 42 mm 30 mm 12 mm 0.41 kg
30130015 15 51 mm 45 mm 35 mm 12 mm 0.47 kg
30130016 16 54 mm 48 mm 38 mm 15 mm 0.54 kg
30130017 17 57 mm 51 mm 42 mm 15 mm 0.63 kg
30130018 18 60 mm 54 mm 45 mm 15 mm 0.72 kg
30130019 19 63 mm 57 mm 45 mm 15 mm 0.78 kg
30130020 20 66 mm 60 mm 45 mm 15 mm 0.84 kg
30130021 21 69 mm 63 mm 45 mm 15 mm 0.89 kg
30130022 22 72 mm 66 mm 50 mm 15 mm 1.02 kg
30130023 23 75 mm 69 mm 50 mm 15 mm 1.1 kg
30130024 24 78 mm 72 mm 50 mm 16 mm 1.18 kg
30130025 25 81 mm 75 mm 60 mm 16 mm 1.39 kg
30130026 26 84 mm 78 mm 60 mm 16 mm 1.48 kg
30130027 27 87 mm 81 mm 60 mm 16 mm 1.56 kg
30130028 28 90 mm 84 mm 60 mm 16 mm 1.66 kg
30130029 29 93 mm 87 mm 60 mm 16 mm 1.75 kg
30130030 30 96 mm 90 mm 60 mm 16 mm 1.85 kg
30130031 31 99 mm 93 mm 70 mm 20 mm 1.95 kg
30130032 32 102 mm 96 mm 70 mm 20 mm 2.21 kg
30130033 33 105 mm 99 mm 70 mm 20 mm 2.32 kg
30130034 34 108 mm 102 mm 70 mm 20 mm 2.43 kg
30130035 35 111 mm 105 mm 70 mm 20 mm 2.55 kg
30130036 36 114 mm 108 mm 70 mm 20 mm 2.62 kg
30130037 37 117 mm 111 mm 80 mm 20 mm 2.74 kg
30130038 38 120 mm 114 mm 80 mm 20 mm 3.05 kg
30130039 39 123 mm 117 mm 80 mm 20 mm 3.18 kg
30130040 40 126 mm 120 mm 80 mm 20 mm 3.31 kg
30130041 41 129 mm 123 mm 90 mm 20 mm 3.44 kg
30130042 42 132 mm 126 mm 90 mm 20 mm 3.58 kg
30130043 43 135 mm 129 mm 90 mm 20 mm 3.72 kg
30130044 44 138 mm 132 mm 90 mm 20 mm 4.07 kg
30130045 45 141 mm 135 mm 90 mm 20 mm 4.22 kg
30130046 46 144 mm 138 mm 90 mm 20 mm 4.37 kg
30130047 47 147 mm 141 mm 90 mm 20 mm 4.76 kg
30130048 48 150 mm 144 mm 100 mm 20 mm 4.92 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Face Width (B)
30.0 mm
Total Width (A)
50.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M3
  • module 3 spur gear
  • M3 Z spur gear with hub

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
