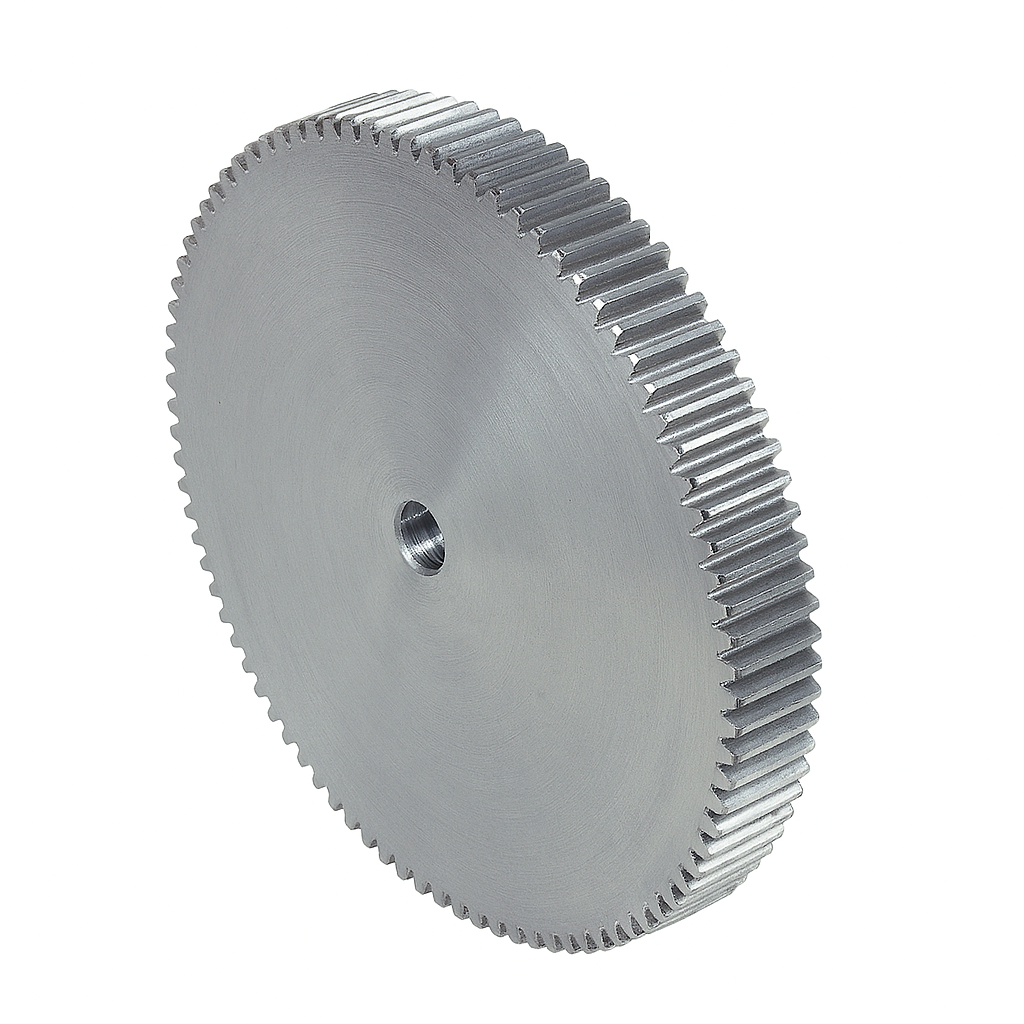

Chiaravalli Spur Gear M3 Without Hub
Chiaravalli

Spur Gear M3 Without Hub

Spur Gears · M3

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30230050 50 156 mm 150 mm 25 mm 4.06 kg
30230052 52 162 mm 156 mm 25 mm 4.4 kg
30230055 55 171 mm 165 mm 25 mm 4.93 kg
30230057 57 177 mm 171 mm 25 mm 5.3 kg
30230060 60 186 mm 180 mm 25 mm 5.89 kg
30230065 65 201 mm 195 mm 25 mm 6.92 kg
30230070 70 216 mm 210 mm 25 mm 8.0 kg
30230072 72 222 mm 216 mm 25 mm 8.47 kg
30230075 75 231 mm 225 mm 25 mm 9.21 kg
30230076 76 234 mm 228 mm 25 mm 9.46 kg
30230080 80 246 mm 240 mm 25 mm 10.49 kg
30230085 85 261 mm 255 mm 25 mm 11.76 kg
30230090 90 276 mm 270 mm 25 mm 13.82 kg
30230095 95 291 mm 285 mm 25 mm 14.86 kg
30230100 100 306 mm 300 mm 25 mm 16.48 kg
30230110 110 336 mm 330 mm 25 mm 19.97 kg
30230114 114 348 mm 342 mm 25 mm 21.4 kg
30230120 120 366 mm 360 mm 25 mm 23.74 kg
30230127 127 387 mm 381 mm 25 mm 26.61 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Face Width (B)
30.0 mm
Total Width (A)
45.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M3
  • module 3 spur gear
  • M3 Z spur gear without hub
