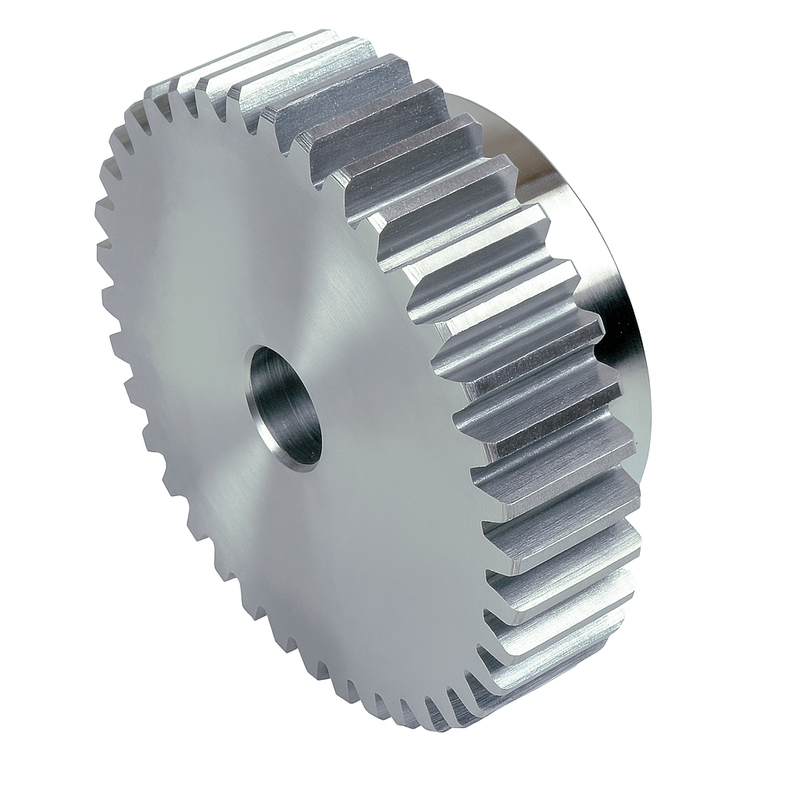

Chiaravalli Spur Gear M4 With Hub
Chiaravalli

Spur Gear M4 With Hub

Spur Gears · M4

Product Configuration

Select a row to add it to your quote

Code ZdedpdmØD1 Weight CAD
30140012 12 56 mm 48 mm 35 mm 14 mm 0.63 kg
30140013 13 60 mm 52 mm 40 mm 14 mm 0.78 kg
30140014 14 64 mm 56 mm 45 mm 14 mm 0.93 kg
30140015 15 68 mm 60 mm 45 mm 14 mm 1.05 kg
30140016 16 72 mm 64 mm 50 mm 15 mm 1.2 kg
30140017 17 76 mm 68 mm 50 mm 15 mm 1.33 kg
30140018 18 80 mm 72 mm 50 mm 15 mm 1.47 kg
30140019 19 84 mm 76 mm 60 mm 15 mm 1.75 kg
30140020 20 88 mm 80 mm 60 mm 15 mm 1.9 kg
30140021 21 92 mm 84 mm 70 mm 20 mm 2.22 kg
30140022 22 96 mm 88 mm 70 mm 20 mm 2.39 kg
30140023 23 100 mm 92 mm 75 mm 20 mm 2.6 kg
30140024 24 104 mm 96 mm 75 mm 20 mm 2.79 kg
30140025 25 108 mm 100 mm 75 mm 20 mm 2.98 kg
30140026 26 112 mm 104 mm 75 mm 20 mm 3.18 kg
30140027 27 116 mm 108 mm 75 mm 20 mm 3.39 kg
30140028 28 120 mm 112 mm 75 mm 20 mm 3.6 kg
30140029 29 124 mm 116 mm 75 mm 20 mm 3.83 kg
30140030 30 128 mm 120 mm 75 mm 20 mm 4.06 kg
30140031 31 132 mm 124 mm 80 mm 20 mm 4.39 kg
30140032 32 136 mm 128 mm 80 mm 20 mm 4.64 kg
30140033 33 140 mm 132 mm 80 mm 20 mm 4.9 kg
30140034 34 144 mm 136 mm 80 mm 20 mm 5.16 kg
30140035 35 148 mm 140 mm 80 mm 20 mm 5.43 kg
30140036 36 152 mm 144 mm 80 mm 20 mm 5.63 kg

Product Information

Module (m)
4.0
Pressure Angle (α)
20°
Face Width (B)
40.0 mm
Total Width (A)
60.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M4
  • module 4 spur gear
  • M4 Z spur gear with hub
