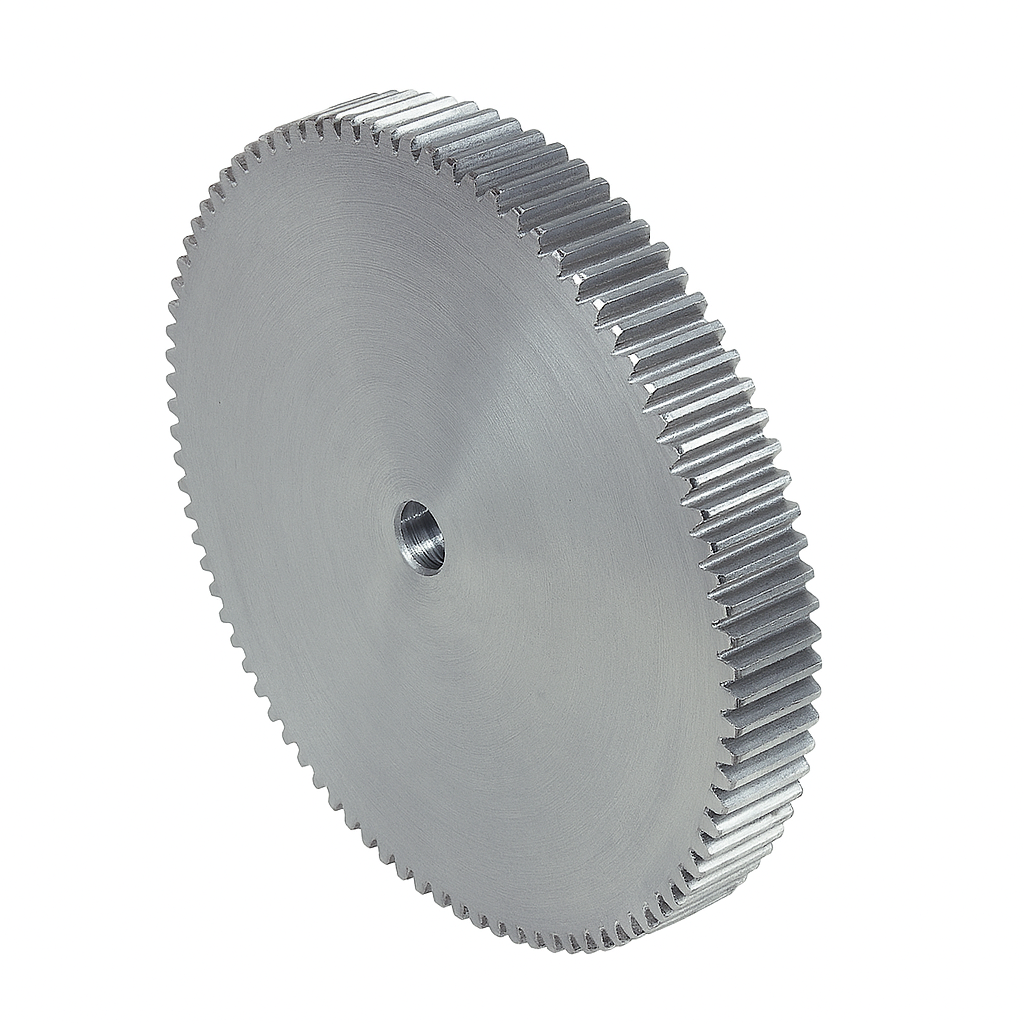

Chiaravalli Spur Gear M4 Without Hub
Chiaravalli

Spur Gear M4 Without Hub

Spur Gears · M4

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30240038 38 160 mm 152 mm 25 mm 5.2 kg
30240040 40 168 mm 160 mm 25 mm 6.11 kg
30240045 45 188 mm 180 mm 25 mm 7.68 kg
30240048 48 200 mm 192 mm 25 mm 8.87 kg
30240050 50 208 mm 200 mm 25 mm 9.65 kg
30240052 52 216 mm 208 mm 25 mm 10.45 kg
30240055 55 228 mm 220 mm 25 mm 11.01 kg
30240057 57 236 mm 228 mm 25 mm 12.59 kg
30240060 60 248 mm 240 mm 25 mm 13.97 kg
30240065 65 268 mm 260 mm 25 mm 16.43 kg
30240070 70 288 mm 280 mm 25 mm 19.09 kg
30240075 75 308 mm 300 mm 25 mm 21.94 kg
30240076 76 312 mm 304 mm 25 mm 22.47 kg
30240080 80 328 mm 320 mm 25 mm 24.83 kg
30240085 85 348 mm 340 mm 25 mm 28.18 kg
30240090 90 368 mm 360 mm 25 mm 31.62 kg
30240095 95 388 mm 380 mm 25 mm 35.26 kg
30240100 100 408 mm 400 mm 25 mm 39.11 kg
30240110 110 448 mm 440 mm 25 mm 47.38 kg
30240114 114 464 mm 456 mm 25 mm 50.91 kg

Product Information

Module (m)
4.0
Pressure Angle (α)
20°
Face Width (B)
40.0 mm
Total Width (A)
55.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M4
  • module 4 spur gear
  • M4 Z spur gear without hub
