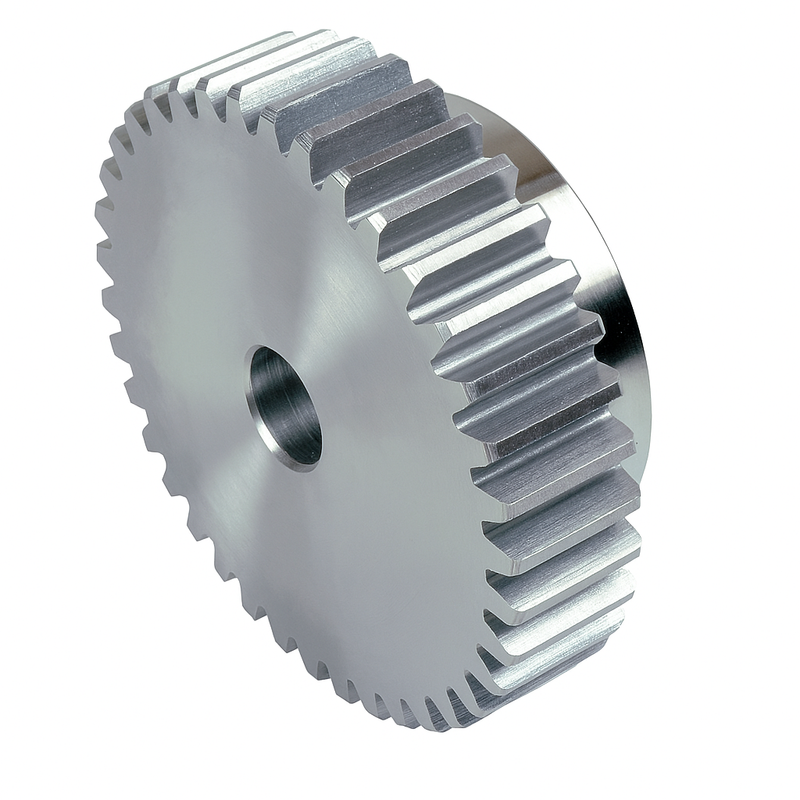

Chiaravalli Spur Gear M5 With Hub
Chiaravalli

Spur Gear M5 With Hub

Spur Gears · M5

Product Configuration

Select a row to add it to your quote

Code ZdedpdmØD1 Weight CAD
30150012 12 70 mm 60 mm 45 mm 16 mm 1.21 kg
30150013 13 75 mm 65 mm 50 mm 16 mm 1.47 kg
30150014 14 80 mm 70 mm 55 mm 20 mm 1.76 kg
30150015 15 85 mm 75 mm 60 mm 20 mm 2.07 kg
30150016 16 90 mm 80 mm 65 mm 20 mm 2.4 kg
30150017 17 95 mm 85 mm 70 mm 20 mm 2.75 kg
30150018 18 100 mm 90 mm 70 mm 20 mm 3.02 kg
30150019 19 105 mm 95 mm 70 mm 20 mm 3.3 kg
30150020 20 110 mm 100 mm 80 mm 20 mm 3.83 kg
30150021 21 115 mm 105 mm 80 mm 20 mm 4.15 kg
30150022 22 120 mm 110 mm 80 mm 25 mm 4.48 kg
30150023 23 125 mm 115 mm 90 mm 25 mm 5.08 kg
30150024 24 130 mm 120 mm 90 mm 25 mm 5.44 kg
30150025 25 135 mm 125 mm 90 mm 25 mm 5.82 kg
30150026 26 140 mm 130 mm 100 mm 25 mm 6.5 kg
30150027 27 145 mm 135 mm 100 mm 25 mm 6.91 kg
30150028 28 150 mm 140 mm 100 mm 25 mm 7.22 kg
30150029 29 155 mm 145 mm 100 mm 25 mm 7.98 kg
30150030 30 160 mm 150 mm 100 mm 25 mm 8.44 kg

Product Information

Module (m)
5.0
Pressure Angle (α)
20°
Face Width (B)
50.0 mm
Total Width (A)
75.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M5
  • module 5 spur gear
  • M5 Z spur gear with hub
