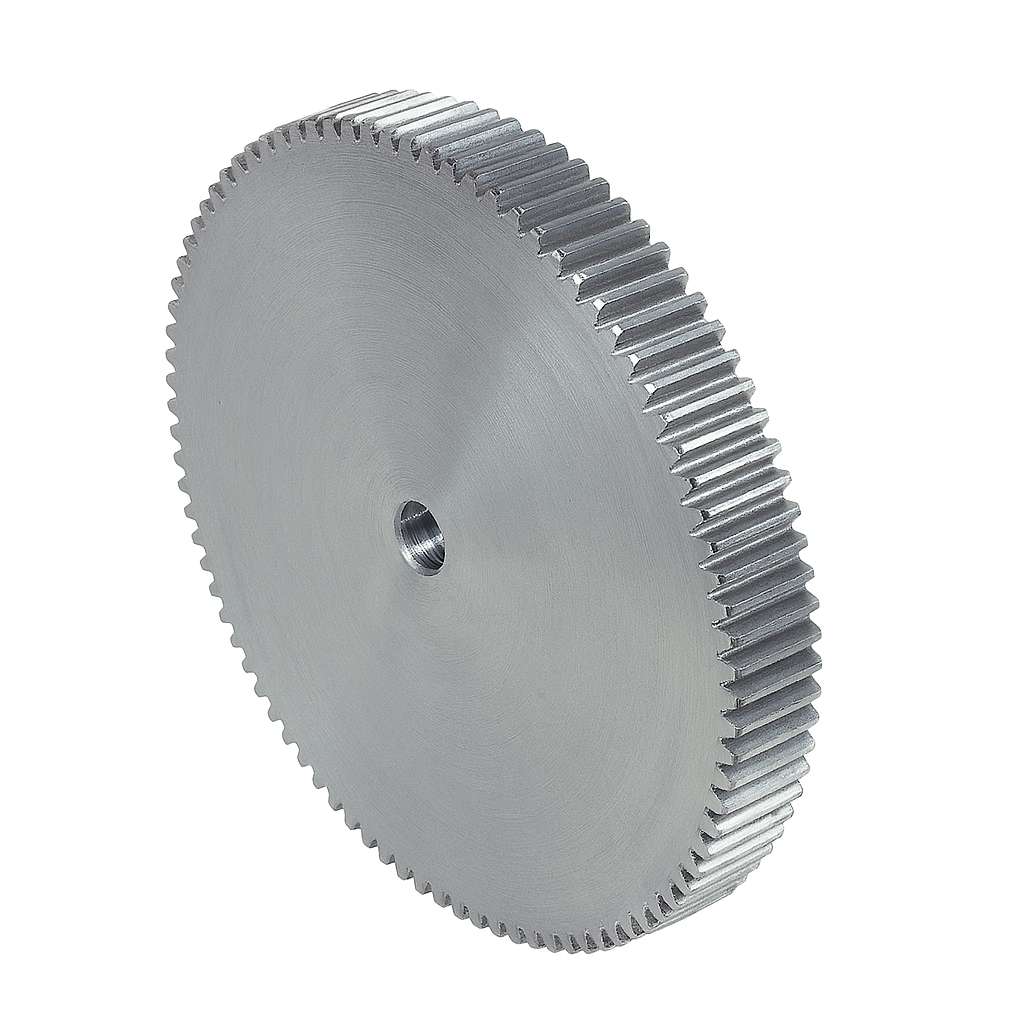

Chiaravalli Spur Gear M5 Without Hub
Chiaravalli

Spur Gear M5 Without Hub

Spur Gears · M5

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30250032 32 170 mm 160 mm 25 mm 7.62 kg
30250035 35 185 mm 175 mm 25 mm 9.16 kg
30250038 38 200 mm 190 mm 30 mm 10.84 kg
30250040 40 210 mm 200 mm 30 mm 12.04 kg
30250045 45 235 mm 225 mm 30 mm 15.3 kg
30250048 48 250 mm 240 mm 30 mm 17.44 kg
30250050 50 260 mm 250 mm 30 mm 18.69 kg
30250052 52 270 mm 260 mm 30 mm 20.43 kg
30250055 55 285 mm 275 mm 30 mm 22.89 kg
30250057 57 295 mm 285 mm 30 mm 24.62 kg
30250060 60 310 mm 300 mm 30 mm 27.31 kg
30250065 65 335 mm 325 mm 30 mm 32.12 kg
30250070 70 360 mm 350 mm 30 mm 37.31 kg
30250075 75 385 mm 375 mm 30 mm 42.88 kg
30250076 76 390 mm 380 mm 30 mm 44.04 kg
30250080 80 410 mm 400 mm 30 mm 48.84 kg
30250085 85 435 mm 425 mm 30 mm 55.19 kg
30250090 90 460 mm 450 mm 30 mm 61.92 kg
30250095 95 485 mm 475 mm 30 mm 69.03 kg
30250100 100 510 mm 500 mm 30 mm 76.53 kg
30250110 110 560 mm 550 mm 30 mm 92.69 kg
30250114 114 580 mm 570 mm 30 mm 99.59 kg

Product Information

Module (m)
5.0
Pressure Angle (α)
20°
Face Width (B)
50.0 mm
Total Width (A)
70.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M5
  • module 5 spur gear
  • M5 Z spur gear without hub
