Chiaravalli

Spur Gear M6 With Hub

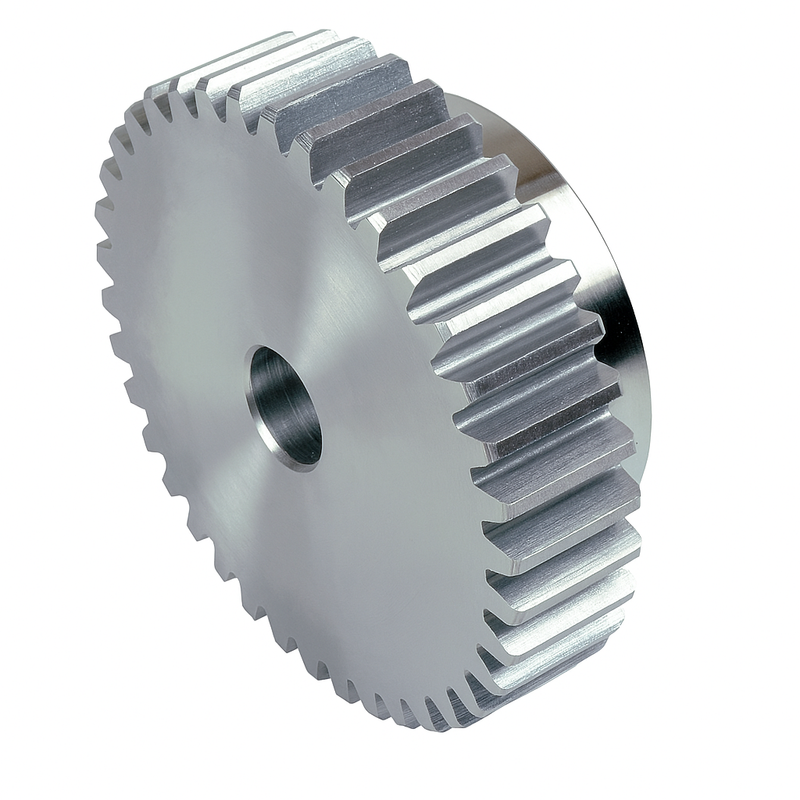

Name: Chiaravalli Spur Gear M6 With Hub
Brand: Chiaravalli

Spur Gears · M6

Select a row to add it to your quote

Teeth

Code	Z	de	dp	dm	ØD1	Weight
`30160012`	`12`	`84` mm	`72` mm	`54` mm	`16` mm	`1.98` kg
`30160013`	`13`	`90` mm	`78` mm	`60` mm	`16` mm	`2.38` kg
`30160015`	`15`	`102` mm	`90` mm	`70` mm	`20` mm	`3.29` kg
`30160016`	`16`	`108` mm	`96` mm	`75` mm	`20` mm	`3.8` kg
`30160018`	`18`	`120` mm	`108` mm	`80` mm	`20` mm	`4.76` kg
`30160020`	`20`	`132` mm	`120` mm	`90` mm	`20` mm	`5.99` kg
`30160024`	`24`	`156` mm	`144` mm	`110` mm	`25` mm	`8.7` kg
`30160025`	`25`	`162` mm	`150` mm	`110` mm	`25` mm	`9.33` kg

Cross-References

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
