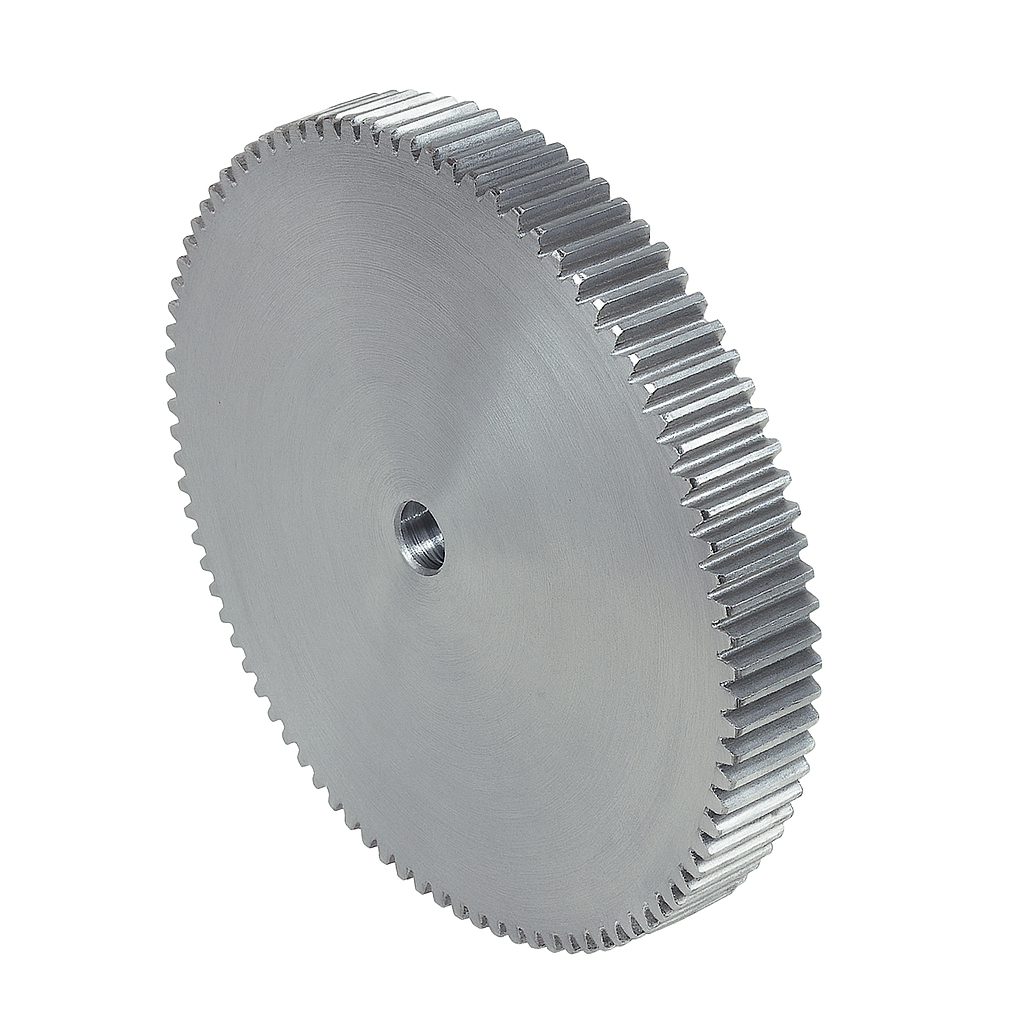

Chiaravalli Spur Gear M6 Without Hub
Chiaravalli

Spur Gear M6 Without Hub

Spur Gears · M6

Product Configuration

Select a row to add it to your quote

Code ZdedpØD1 Weight CAD
30260028 28 180 mm 168 mm 25 mm 10.0 kg
30260030 30 192 mm 180 mm 25 mm 11.55 kg
30260032 32 204 mm 192 mm 25 mm 13.22 kg
30260035 35 222 mm 210 mm 25 mm 15.79 kg
30260038 38 240 mm 228 mm 25 mm 18.74 kg
30260040 40 252 mm 240 mm 25 mm 20.75 kg

Product Information

Module (m)
6.0
Pressure Angle (α)
20°
Face Width (B)
60.0 mm
Total Width (A)
85.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M6
  • module 6 spur gear
  • M6 Z spur gear without hub
