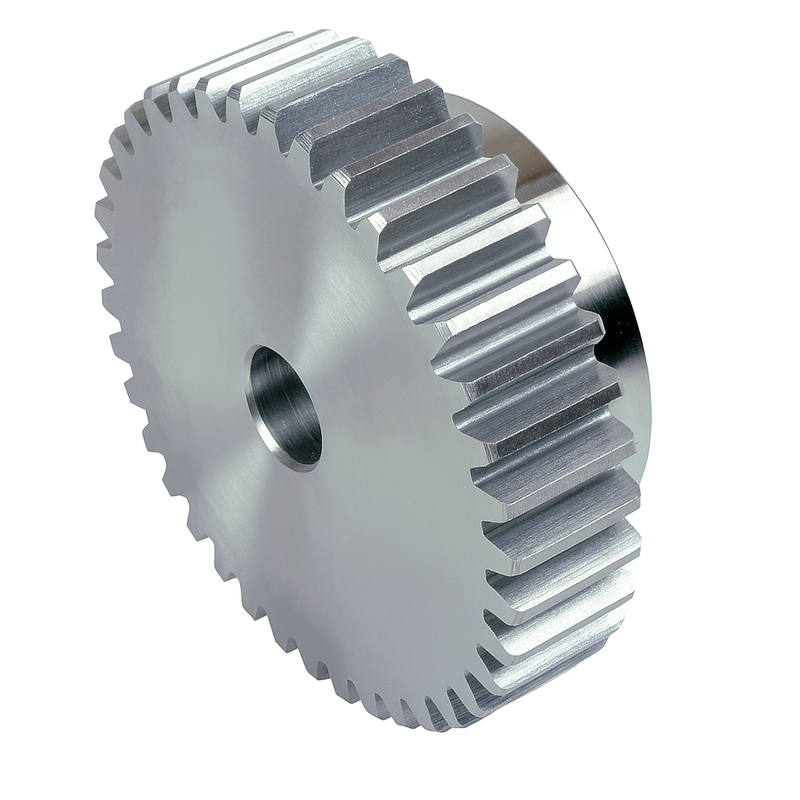

Chiaravalli Spur Gear M8 With Hub
Chiaravalli

Spur Gear M8 With Hub

Spur Gears · M8

Product Configuration

Select a row to add it to your quote

Code ZdedpdmØD1 Weight CAD
30180015 15 136 mm 120 mm 90 mm 25 mm 8.2 kg
30180018 18 160 mm 144 mm 100 mm 25 mm 11.7 kg
30180020 20 176 mm 160 mm 120 mm 30 mm 14.6 kg
30180024 24 208 mm 192 mm 150 mm 30 mm 21.7 kg
30180025 25 216 mm 200 mm 150 mm 30 mm 23.3 kg
30180028 28 240 mm 224 mm 170 mm 30 mm 29.5 kg
30180030 30 256 mm 240 mm 190 mm 30 mm 34.4 kg

Product Information

Module (m)
8.0
Pressure Angle (α)
20°
Face Width (B)
80.0 mm
Total Width (A)
110.0 mm
Standard
DIN 867 / UNI 6773
Material
C45 UNI 7845

Cross-References

Also Known As

  • spur gear M8
  • module 8 spur gear
  • M8 Z spur gear with hub
