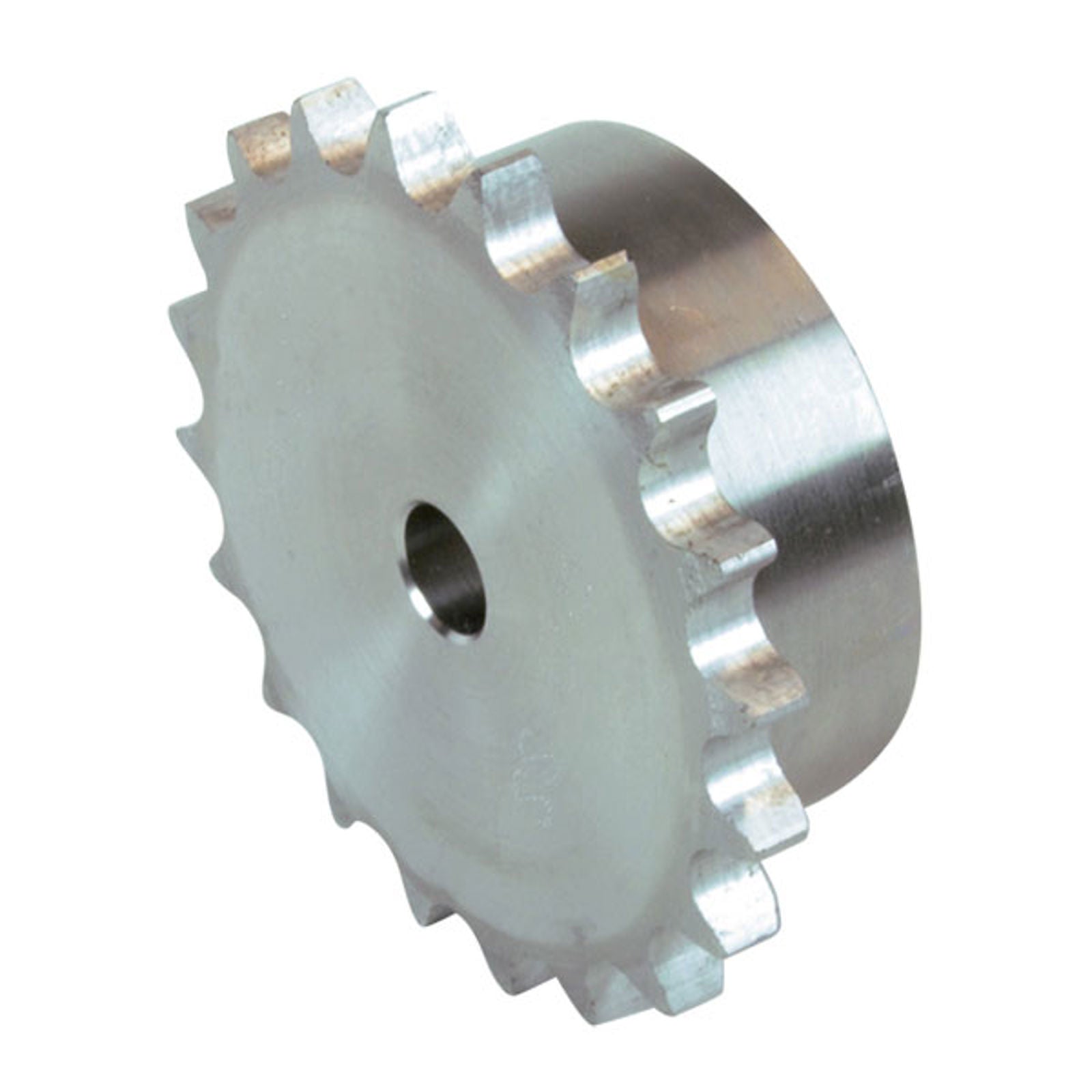

Chiaravalli Stainless Steel Chain Sprocket 06B-1 Simplex (3/8″ × 7/32″)
Chiaravalli

Stainless Steel Chain Sprocket 06B-1 Simplex (3/8″ × 7/32″)

Chain Sprockets

Simplex stainless steel chain sprocket for 06B-1 roller chain (3/8″ × 7/32″), in compliance with DIN 8187 - ISO/R 606.

Product Configuration

Select a row to add it to your quote

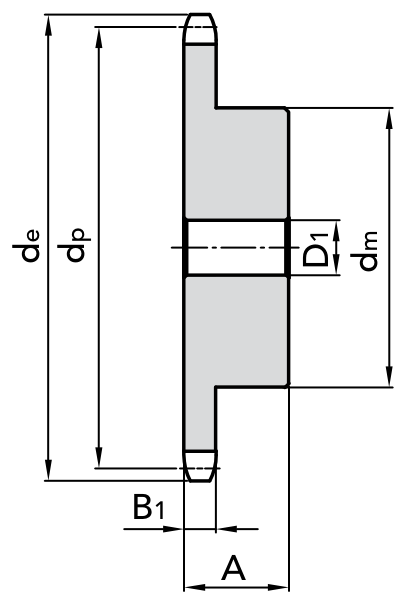

Code ZdedpdmD1AB1 Weight CAD
14109012 12 40 mm 36.8 mm 25 mm 8 mm 25 mm 5.3 mm 0.12 kg
14109013 13 43 mm 39.79 mm 28 mm 10 mm 25 mm 5.3 mm 0.13 kg
14109015 15 49 mm 45.81 mm 34 mm 10 mm 25 mm 5.3 mm 0.19 kg
14109016 16 52.3 mm 48.82 mm 37 mm 10 mm 28 mm 5.3 mm 0.24 kg
14109017 17 55.3 mm 51.83 mm 40 mm 10 mm 28 mm 5.3 mm 0.28 kg
14109018 18 58.3 mm 54.85 mm 43 mm 10 mm 28 mm 5.3 mm 0.33 kg
14109019 19 61.3 mm 57.87 mm 45 mm 10 mm 28 mm 5.3 mm 0.36 kg
14109020 20 64.3 mm 60.89 mm 46 mm 10 mm 28 mm 5.3 mm 0.39 kg
14109021 21 68 mm 63.91 mm 48 mm 12 mm 28 mm 5.3 mm 0.42 kg
14109023 23 73.5 mm 69.65 mm 52 mm 12 mm 28 mm 5.3 mm 0.5 kg
14109025 25 80 mm 76 mm 57 mm 12 mm 28 mm 5.3 mm 0.6 kg
14109030 30 94.7 mm 91.12 mm 60 mm 12 mm 30 mm 5.3 mm 0.72 kg

Product Information

Material
Stainless steel AISI 304 L

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
