Stainless Steel Chain Sprocket 08B-1 Simplex (1/2″ × 5/16″)

Name: Chiaravalli Stainless Steel Chain Sprocket 08B-1 Simplex (1/2″ × 5/16″)
Brand: Chiaravalli

Chain Sprockets

Simplex stainless steel chain sprocket for 08B-1 roller chain (1/2″ × 5/16″), in compliance with DIN 8187 - ISO/R 606.

Select a row to add it to your quote

Teeth

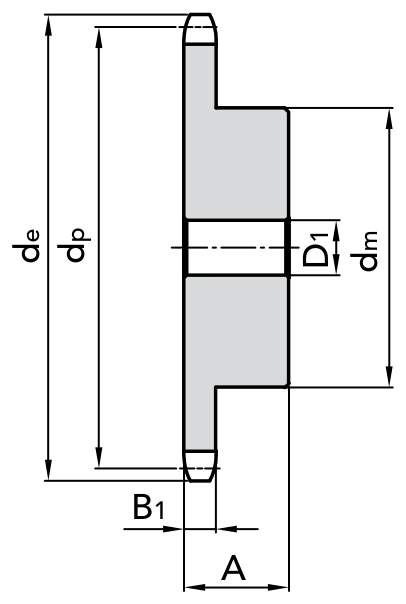

Code	Z	de	dp	dm	D1	A	B1	Weight
`14112012`	`12`	`53` mm	`49.07` mm	`33` mm	`10` mm	`28` mm	`7.2` mm	`0.21` kg
`14112013`	`13`	`57.9` mm	`53.06` mm	`37` mm	`10` mm	`28` mm	`7.2` mm	`0.26` kg
`14112015`	`15`	`65.9` mm	`61.09` mm	`45` mm	`10` mm	`28` mm	`7.2` mm	`0.38` kg
`14112016`	`16`	`69.9` mm	`65.1` mm	`50` mm	`12` mm	`28` mm	`7.2` mm	`0.46` kg
`14112017`	`17`	`74` mm	`69.11` mm	`52` mm	`12` mm	`28` mm	`7.2` mm	`0.51` kg
`14112018`	`18`	`78` mm	`73.14` mm	`56` mm	`12` mm	`28` mm	`7.2` mm	`0.59` kg
`14112019`	`19`	`82` mm	`77.16` mm	`60` mm	`12` mm	`28` mm	`7.2` mm	`0.67` kg
`14112020`	`20`	`86` mm	`81.19` mm	`64` mm	`12` mm	`28` mm	`7.2` mm	`0.76` kg
`14112021`	`21`	`90.01` mm	`85.22` mm	`68` mm	`14` mm	`28` mm	`7.2` mm	`0.85` kg
`14112023`	`23`	`98.01` mm	`93.27` mm	`70` mm	`14` mm	`28` mm	`7.2` mm	`0.94` kg
`14112025`	`25`	`106.2` mm	`101.33` mm	`70` mm	`14` mm	`28` mm	`7.2` mm	`1.01` kg
`14112030`	`30`	`126.3` mm	`121.5` mm	`80` mm	`16` mm	`30` mm	`7.2` mm	`1.46` kg
