Stainless Steel Chain Sprocket 10B-1 Simplex (5/8″ × 3/8″)

Name: Chiaravalli Stainless Steel Chain Sprocket 10B-1 Simplex (5/8″ × 3/8″)
Brand: Chiaravalli

Chain Sprockets

Simplex stainless steel chain sprocket for 10B-1 roller chain (5/8″ × 3/8″), in compliance with DIN 8187 - ISO/R 606.

Select a row to add it to your quote

Teeth

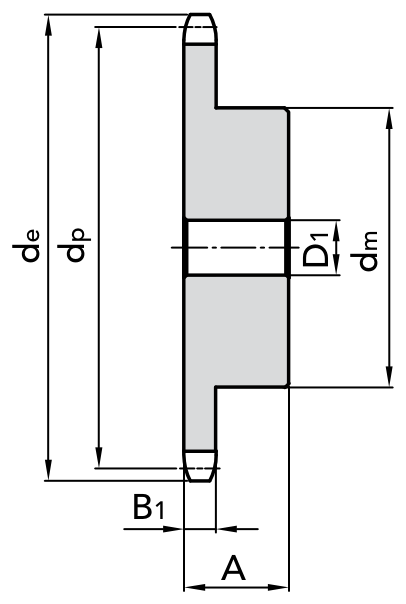

Code	Z	de	dp	dm	D1	A	B1	Weight
`14115012`	`12`	`68` mm	`61.34` mm	`42` mm	`12` mm	`30` mm	`9.1` mm	`0.37` kg
`14115013`	`13`	`73` mm	`66.32` mm	`47` mm	`12` mm	`30` mm	`9.1` mm	`0.46` kg
`14115015`	`15`	`83` mm	`76.36` mm	`57` mm	`12` mm	`30` mm	`9.1` mm	`0.67` kg
`14115016`	`16`	`88` mm	`81.37` mm	`60` mm	`12` mm	`30` mm	`9.1` mm	`0.76` kg
`14115017`	`17`	`93` mm	`86.39` mm	`60` mm	`12` mm	`30` mm	`9.1` mm	`0.88` kg
`14115018`	`18`	`98.3` mm	`91.42` mm	`70` mm	`12` mm	`30` mm	`9.1` mm	`1.01` kg
`14115019`	`19`	`103.3` mm	`96.45` mm	`70` mm	`14` mm	`30` mm	`9.1` mm	`1.15` kg
`14115020`	`20`	`108.4` mm	`101.49` mm	`75` mm	`14` mm	`30` mm	`9.1` mm	`1.21` kg
`14115021`	`21`	`113.4` mm	`106.52` mm	`80` mm	`16` mm	`30` mm	`9.1` mm	`1.35` kg
`14115023`	`23`	`123.4` mm	`116.58` mm	`80` mm	`16` mm	`30` mm	`9.1` mm	`1.47` kg
`14115025`	`25`	`134` mm	`126.66` mm	`80` mm	`16` mm	`30` mm	`9.1` mm	`1.6` kg
`14115030`	`30`	`158.8` mm	`151.87` mm	`90` mm	`20` mm	`35` mm	`9.1` mm	`2.41` kg
