Chiaravalli

Stainless Steel Chain Sprocket 12B-1 Simplex (3/4″ × 7/16″)

Name: Chiaravalli Stainless Steel Chain Sprocket 12B-1 Simplex (3/4″ × 7/16″)
Brand: Chiaravalli

Chain Sprockets

Simplex stainless steel chain sprocket for 12B-1 roller chain (3/4″ × 7/16″), in compliance with DIN 8187 - ISO/R 606.

Select a row to add it to your quote

Teeth

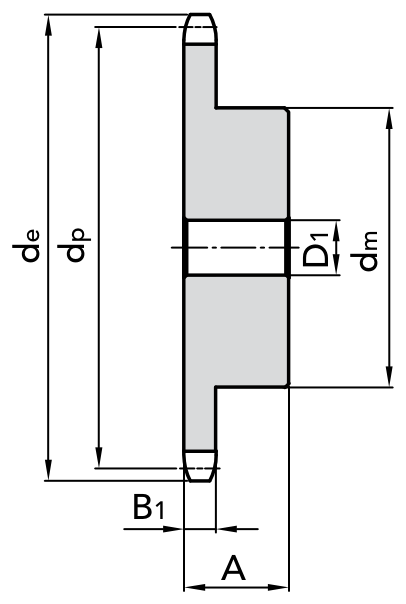

Code	Z	de	dp	dm	D1	A	B1	Weight
`14119012`	`12`	`81.5` mm	`73.61` mm	`52` mm	`14` mm	`35` mm	`11.1` mm	`0.65` kg
`14119013`	`13`	`87.5` mm	`79.59` mm	`58` mm	`16` mm	`35` mm	`11.1` mm	`0.8` kg
`14119015`	`15`	`99.8` mm	`91.63` mm	`70` mm	`16` mm	`35` mm	`11.1` mm	`1.16` kg
`14119016`	`16`	`105.5` mm	`97.65` mm	`75` mm	`16` mm	`35` mm	`11.1` mm	`1.34` kg
`14119017`	`17`	`111.5` mm	`103.67` mm	`80` mm	`16` mm	`35` mm	`11.1` mm	`1.53` kg
`14119018`	`18`	`118` mm	`109.71` mm	`80` mm	`16` mm	`35` mm	`11.1` mm	`1.61` kg
`14119019`	`19`	`124.2` mm	`115.75` mm	`80` mm	`16` mm	`35` mm	`11.1` mm	`1.7` kg
`14119020`	`20`	`129.7` mm	`121.78` mm	`80` mm	`16` mm	`35` mm	`11.1` mm	`1.8` kg
`14119021`	`21`	`136` mm	`127.82` mm	`90` mm	`20` mm	`40` mm	`11.1` mm	`2.35` kg
`14119023`	`23`	`149` mm	`139.9` mm	`90` mm	`20` mm	`40` mm	`11.1` mm	`2.56` kg
`14119025`	`25`	`160` mm	`152` mm	`90` mm	`20` mm	`40` mm	`11.1` mm	`2.8` kg
`14119030`	`30`	`189.78` mm	`182.25` mm	`95` mm	`20` mm	`40` mm	`11.1` mm	`2.63` kg
