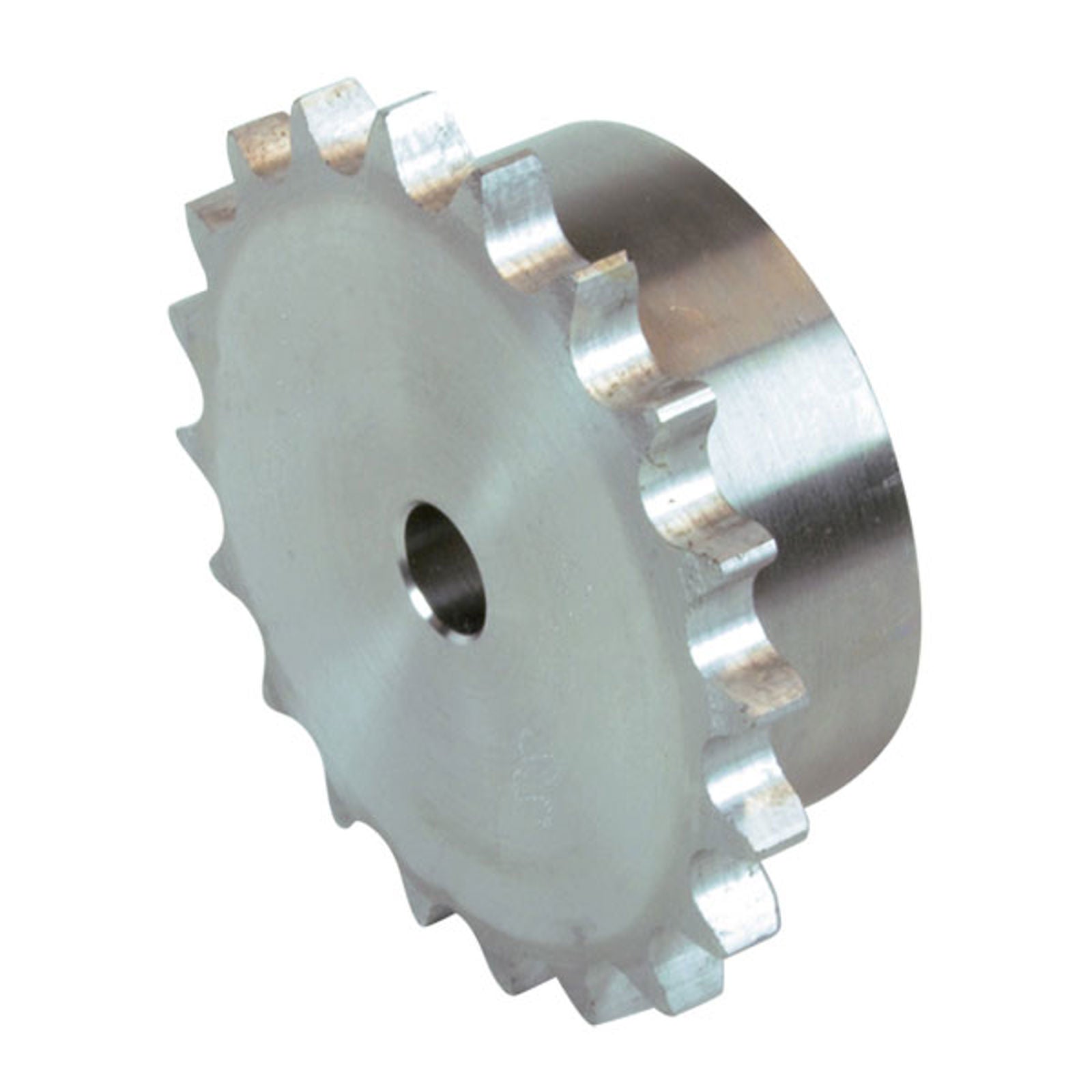

Chiaravalli Stainless Steel Chain Sprocket 16B-1 Simplex (1″ × 17.02)
Chiaravalli

Stainless Steel Chain Sprocket 16B-1 Simplex (1″ × 17.02)

Chain Sprockets

Simplex stainless steel chain sprocket for 16B-1 roller chain (1″ × 17.02), in compliance with DIN 8187 - ISO/R 606.

Product Configuration

Select a row to add it to your quote

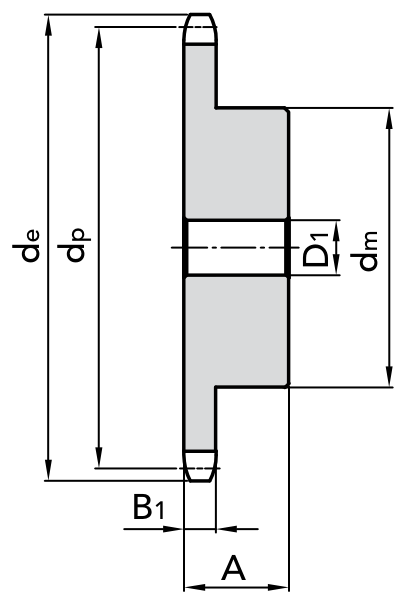

Code ZdedpdmD1AB1 Weight CAD
14125012 12 109 mm 98.14 mm 69 mm 16 mm 40 mm 16.2 mm 1.43 kg
14125013 13 117 mm 106.12 mm 78 mm 16 mm 40 mm 16.2 mm 1.77 kg
14125015 15 133 mm 122.17 mm 92 mm 16 mm 40 mm 16.2 mm 2.46 kg
14125016 16 141 mm 130.2 mm 100 mm 19 mm 45 mm 16.2 mm 3.14 kg
14125017 17 149 mm 138.22 mm 100 mm 20 mm 45 mm 16.2 mm 3.34 kg
14125018 18 157 mm 146.28 mm 100 mm 20 mm 45 mm 16.2 mm 3.56 kg
14125019 19 165.2 mm 154.33 mm 100 mm 20 mm 45 mm 16.2 mm 3.78 kg
14125020 20 173.5 mm 162.38 mm 100 mm 20 mm 45 mm 16.2 mm 4.03 kg
14125021 21 181.2 mm 170.43 mm 110 mm 20 mm 50 mm 16.2 mm 5.01 kg
14125023 23 197.5 mm 182.25 mm 110 mm 20 mm 50 mm 16.2 mm 5.56 kg
14125025 25 213.5 mm 202.66 mm 110 mm 20 mm 50 mm 16.2 mm 6.16 kg
14125030 30 254 mm 243 mm 120 mm 20 mm 55 mm 16.2 mm 8.38 kg

Product Information

Material
Stainless steel AISI 304 L

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
