Chiaravalli Standard Bevel Gear M1.5 1:2
Chiaravalli

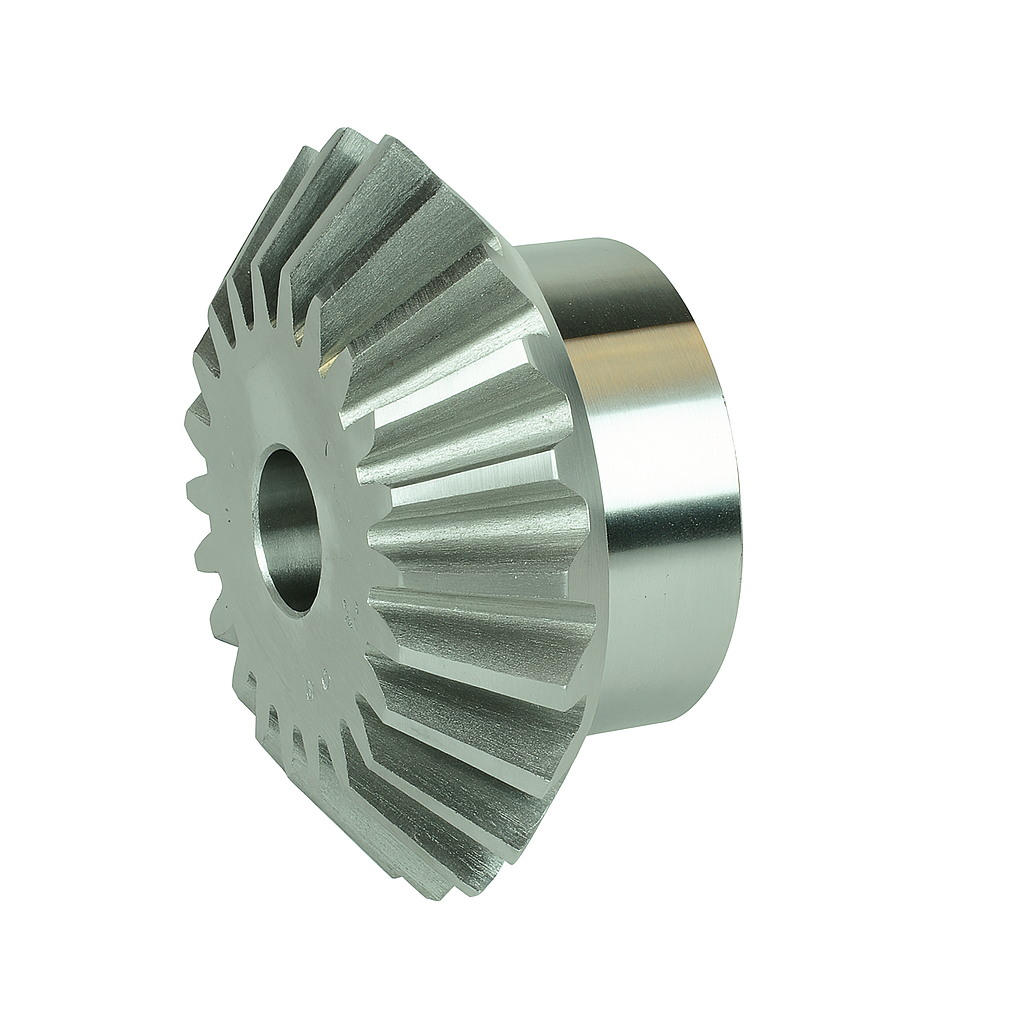

Standard Bevel Gear M1.5 1:2

Bevel Gears · M1.5 1:2

Product Configuration

Select a row to add it to your quote

Code ZdpdeFAdmD1LVSLm Weight CAD
32151216 16 24 mm 26.68 mm 8 mm 19.5 mm 21 mm 10 mm 18 mm 16.33 mm 1.5 mm 11.3 mm 0.04 kg
33151232 32 48 mm 49.34 mm 8 mm 20 mm 32 mm 12 mm 17 mm 7.45 mm 3 mm 10 mm 0.14 kg

Product Information

Module (m)
1.5
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:2
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M1.5 1:2
  • standard bevel M1.5
  • M1.5 ratio 1:2 bevel
