Chiaravalli

Standard Bevel Gear M3 1:1

Name: Chiaravalli Standard Bevel Gear M3 1:1
Brand: Chiaravalli

Bevel Gears · M3 1:1

Select a row to add it to your quote

Teeth

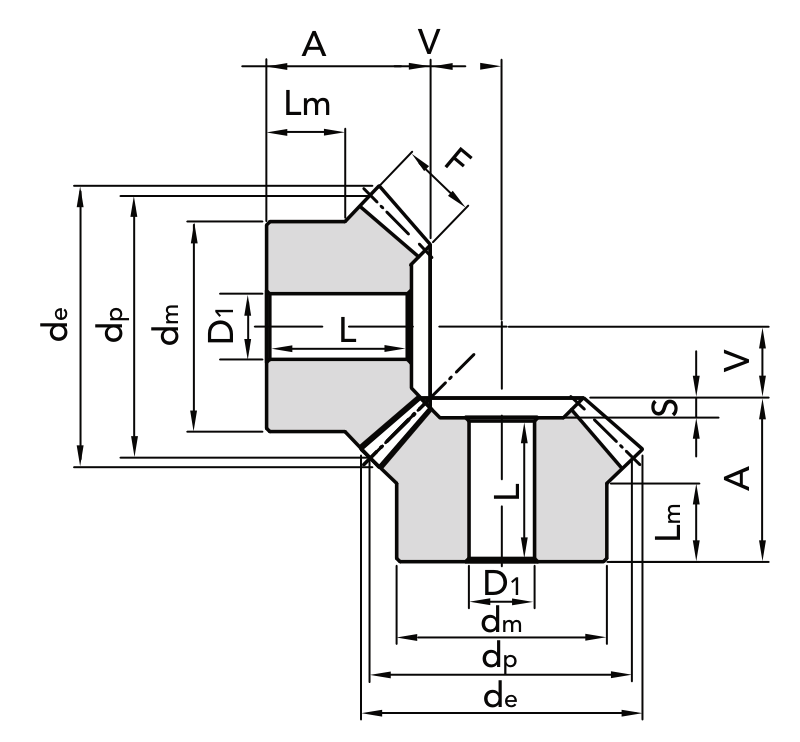

Code	Z	dp	de	F	A	dm	D1	L	V	S	Lm	Weight
`35301116`	`16`	`48` mm	`52.25` mm	`12` mm	`31.7` mm	`40.3` mm	`12` mm	—	`14.3` mm	—	`18` mm	`0.24` kg
`32301120`	`20`	`60` mm	`64.24` mm	`18` mm	`35` mm	`45` mm	`15` mm	`31` mm	`16` mm	`4` mm	`13.6` mm	`0.41` kg
`32301125`	`25`	`75` mm	`79.24` mm	`20` mm	`38` mm	`55` mm	`15` mm	`34` mm	`22` mm	`4` mm	`16` mm	`0.72` kg
`32301130`	`30`	`90` mm	`94.24` mm	`22` mm	`40` mm	`60` mm	`20` mm	`36` mm	`28` mm	`4` mm	`17` mm	`0.99` kg

Cross-References

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
