Chiaravalli Standard Bevel Gear M3 1:2
Chiaravalli

Standard Bevel Gear M3 1:2

Bevel Gears · M3 1:2

Product Configuration

Select a row to add it to your quote

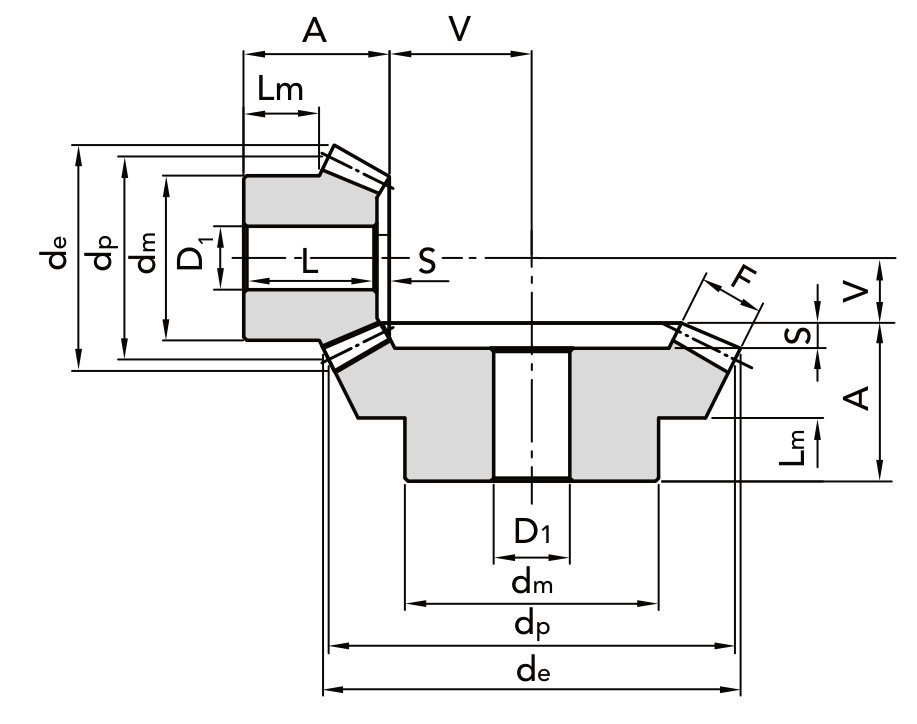

Code ZdpdeFAdmD1LVSLm Weight CAD
32301216 16 48 mm 53.36 mm 15 mm 28 mm 40 mm 15 mm 25 mm 33.64 mm 3 mm 11.6 mm 0.23 kg
33301232 32 96 mm 98.68 mm 15 mm 30 mm 60 mm 15 mm 24 mm 15.31 mm 6 mm 10 mm 1.05 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:2
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M3 1:2
  • standard bevel M3
  • M3 ratio 1:2 bevel
