Chiaravalli Standard Bevel Gear M3 1:3
Chiaravalli

Standard Bevel Gear M3 1:3

Bevel Gears · M3 1:3

Product Configuration

Select a row to add it to your quote

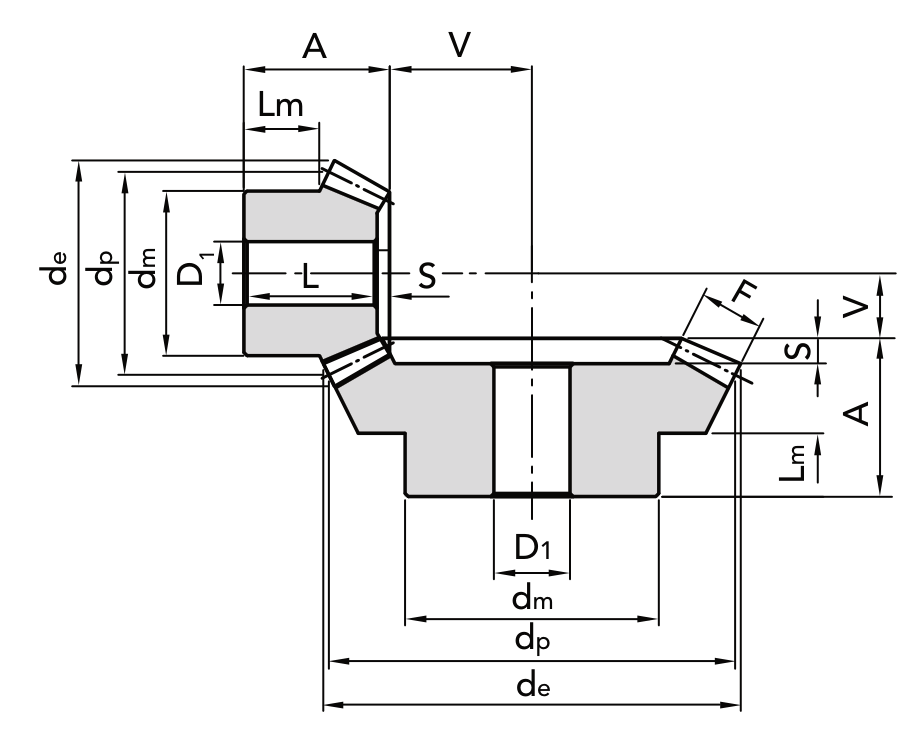

Code ZdpdeFAdmD1LVSLm Weight CAD
32301316 16 48 mm 53.69 mm 18 mm 32 mm 40 mm 15 mm 30 mm 54.25 mm 2 mm 12.1 mm 0.27 kg
33301348 48 144 mm 145.9 mm 18 mm 29 mm 80 mm 20 mm 23 mm 16.2 mm 6 mm 10 mm 2.01 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:3
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M3 1:3
  • standard bevel M3
  • M3 ratio 1:3 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
