Chiaravalli Standard Bevel Gear M3 1:4
Chiaravalli

Standard Bevel Gear M3 1:4

Bevel Gears · M3 1:4

Product Configuration

Select a row to add it to your quote

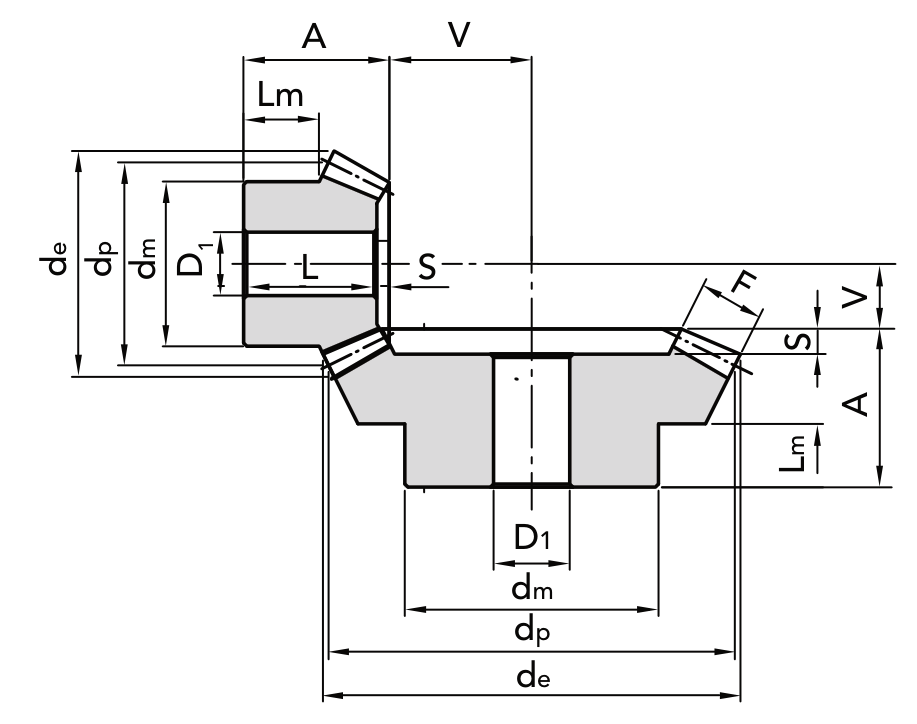

Code ZdpdeFAdmD1LVSLm Weight CAD
32301416 16 48 mm 53.82 mm 22 mm 34 mm 40 mm 15 mm 32 mm 74.1 mm 2 mm 11 mm 0.29 kg
33301464 64 192 mm 193.45 mm 22 mm 30 mm 100 mm 20 mm 24 mm 16.41 mm 6 mm 10 mm 4.12 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:4
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M3 1:4
  • standard bevel M3
  • M3 ratio 1:4 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
