Chiaravalli Standard Bevel Gear M3.5 1:1
Chiaravalli

Standard Bevel Gear M3.5 1:1

Bevel Gears · M3.5 1:1

Product Configuration

Select a row to add it to your quote

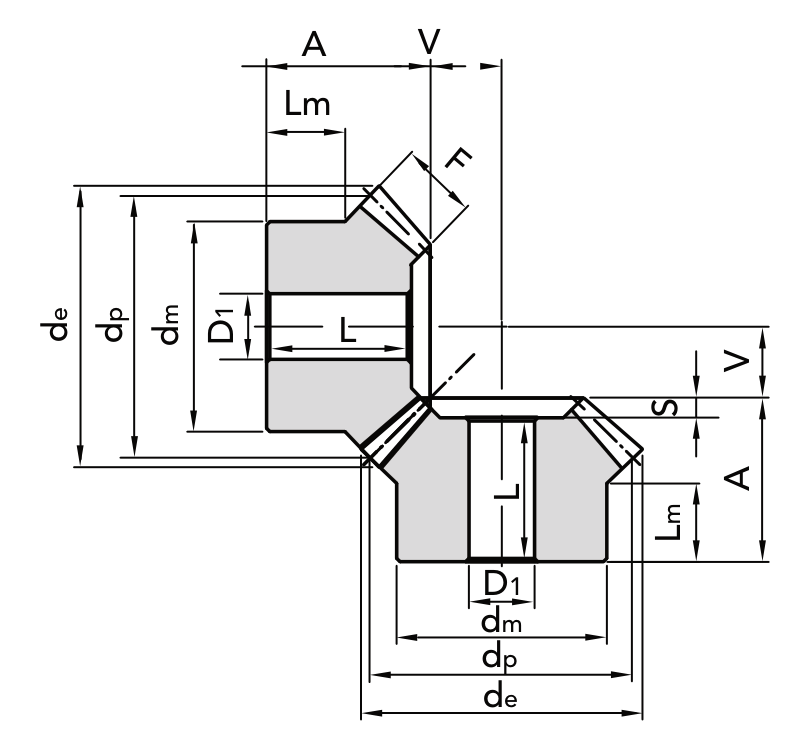

Code ZdpdeFAdmD1LVSLm Weight CAD
35351116 16 56 mm 60.95 mm 14 mm 36.4 mm 45.3 mm 16 mm — 16.6 mm — 20 mm 0.38 kg
32351120 20 70 mm 74.95 mm 22 mm 40.5 mm 55 mm 15 mm 36 mm 18.13 mm 4.5 mm 16.1 mm 0.68 kg
32351125 25 87.5 mm 92.45 mm 26 mm 43.5 mm 65 mm 20 mm 39 mm 23.97 mm 4.5 mm 18 mm 1.1 kg
32351130 30 105 mm 109.95 mm 30 mm 48 mm 70 mm 20 mm 43.5 mm 30.02 mm 4.5 mm 19 mm 1.61 kg

Product Information

Module (m)
3.5
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:1
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M3.5 1:1
  • standard bevel M3.5
  • M3.5 ratio 1:1 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
