Chiaravalli

Standard Bevel Gear M4 1:1

Name: Chiaravalli Standard Bevel Gear M4 1:1
Brand: Chiaravalli

Bevel Gears · M4 1:1

Select a row to add it to your quote

Teeth

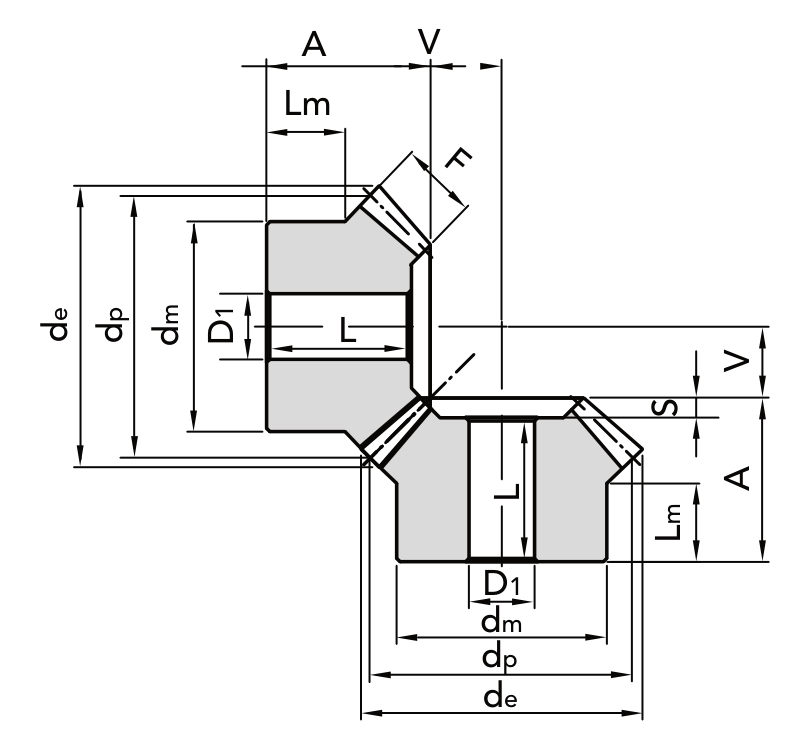

Code	Z	dp	de	F	A	dm	D1	L	V	S	Lm	Weight	CAD
`35401116`	`16`	`64` mm	`69.65` mm	`15` mm	`44.3` mm	`50.3` mm	`16` mm	—	`19.7` mm	—	`25` mm	`0.52` kg
`32401120`	`20`	`80` mm	`85.65` mm	`25` mm	`43` mm	`60` mm	`18` mm	`38` mm	`20.74` mm	`5` mm	`18` mm	`0.9` kg	—
`32401125`	`25`	`100` mm	`105.65` mm	`28` mm	`45` mm	`70` mm	`20` mm	`40` mm	`28.5` mm	`5` mm	`18` mm	`1.45` kg
`32401130`	`30`	`120` mm	`125.65` mm	`32` mm	`48` mm	`80` mm	`20` mm	`43` mm	`35.67` mm	`5` mm	`16` mm	`2.66` kg
