Chiaravalli

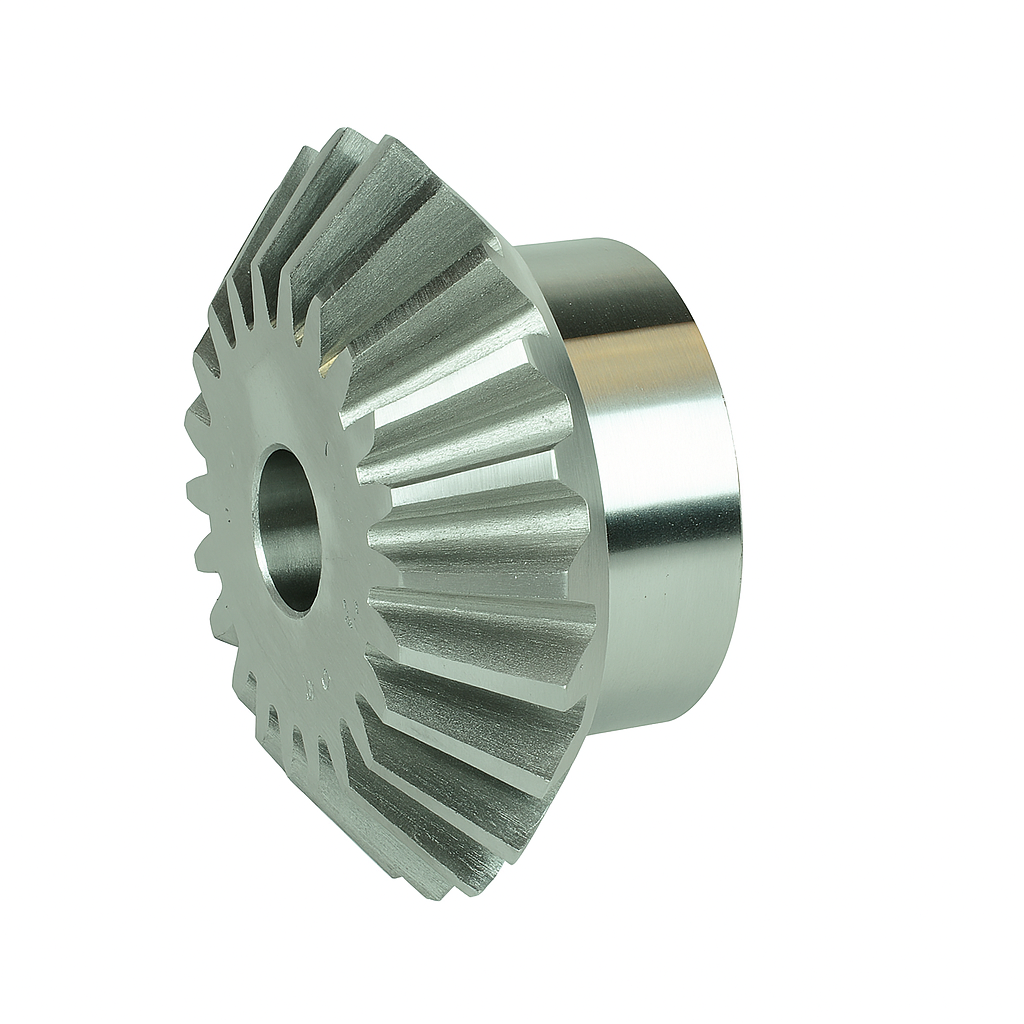

Standard Bevel Gear M4 1:2

Name: Chiaravalli Standard Bevel Gear M4 1:2
Brand: Chiaravalli

Bevel Gears · M4 1:2

Select a row to add it to your quote

Teeth

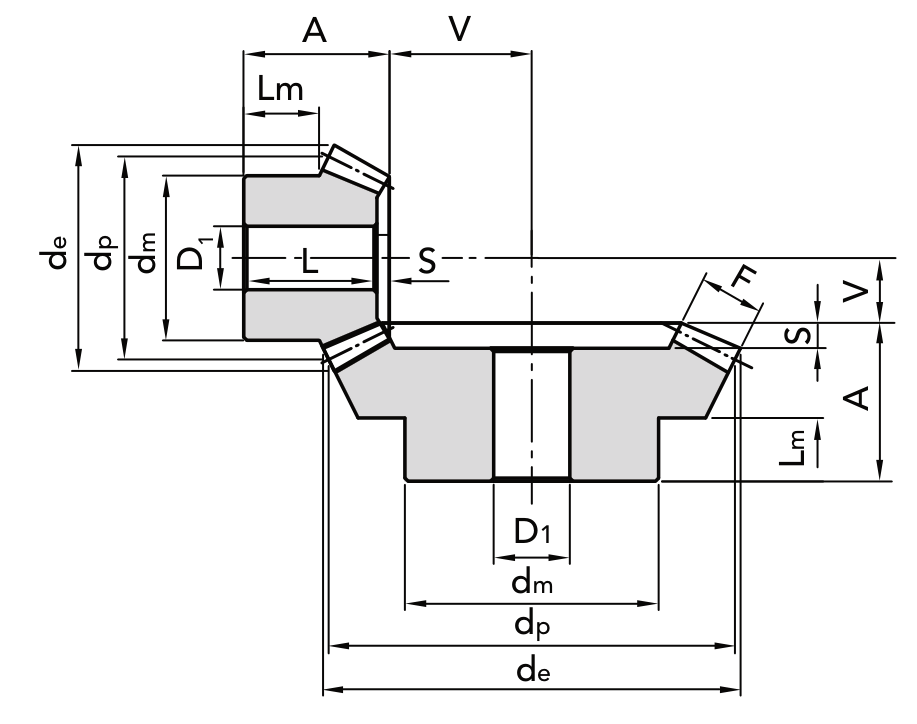

Code	Z	dp	de	F	A	dm	D1	L	V	S	Lm	Weight	CAD
`32401216`	`16`	`64` mm	`71.15` mm	`20` mm	`36` mm	`50` mm	`15` mm	`32` mm	`44.81` mm	`4` mm	`13.4` mm	`0.49` kg
`33401232`	`32`	`128` mm	`131.57` mm	`20` mm	`32` mm	`80` mm	`20` mm	`24` mm	`20.42` mm	`8` mm	`10` mm	`2.29` kg

Cross-References

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
