Chiaravalli Standard Bevel Gear M4 1:3
Chiaravalli

Standard Bevel Gear M4 1:3

Bevel Gears · M4 1:3

Product Configuration

Select a row to add it to your quote

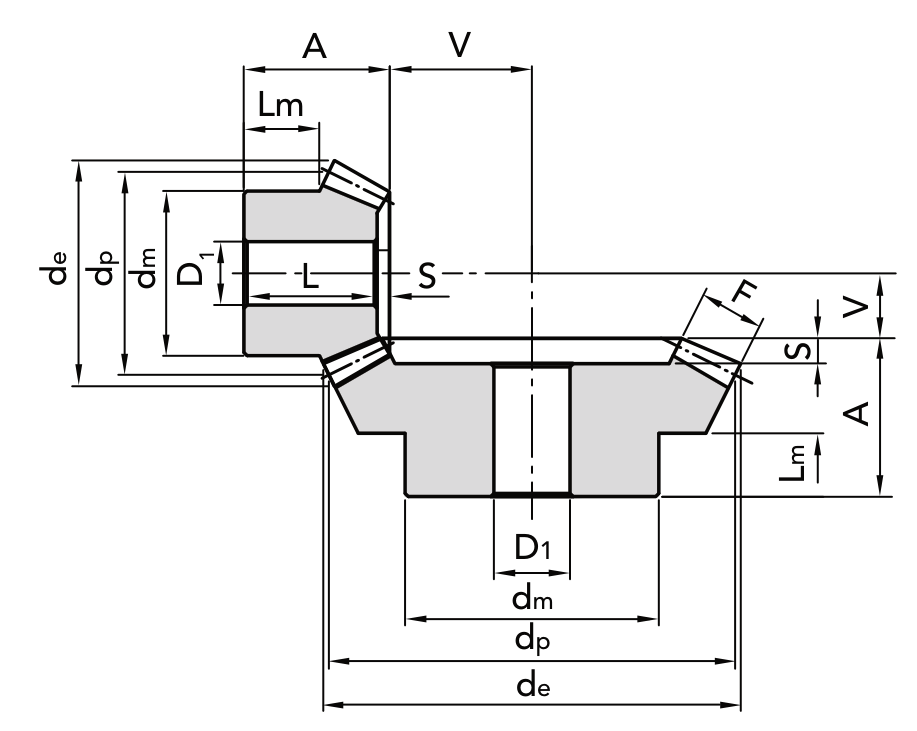

Code ZdpdeFAdmD1LVSLm Weight CAD
32401316 16 64 mm 71.59 mm 25 mm 41.5 mm 55 mm 20 mm 38.5 mm 71.23 mm 3 mm 15.2 mm 0.67 kg
33401348 48 192 mm 194.53 mm 25 mm 33 mm 100 mm 20 mm 25 mm 21.2 mm 8 mm 10 mm 4.4 kg

Product Information

Module (m)
4.0
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:3
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M4 1:3
  • standard bevel M4
  • M4 ratio 1:3 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
