Chiaravalli

Standard Bevel Gear M4 1:4

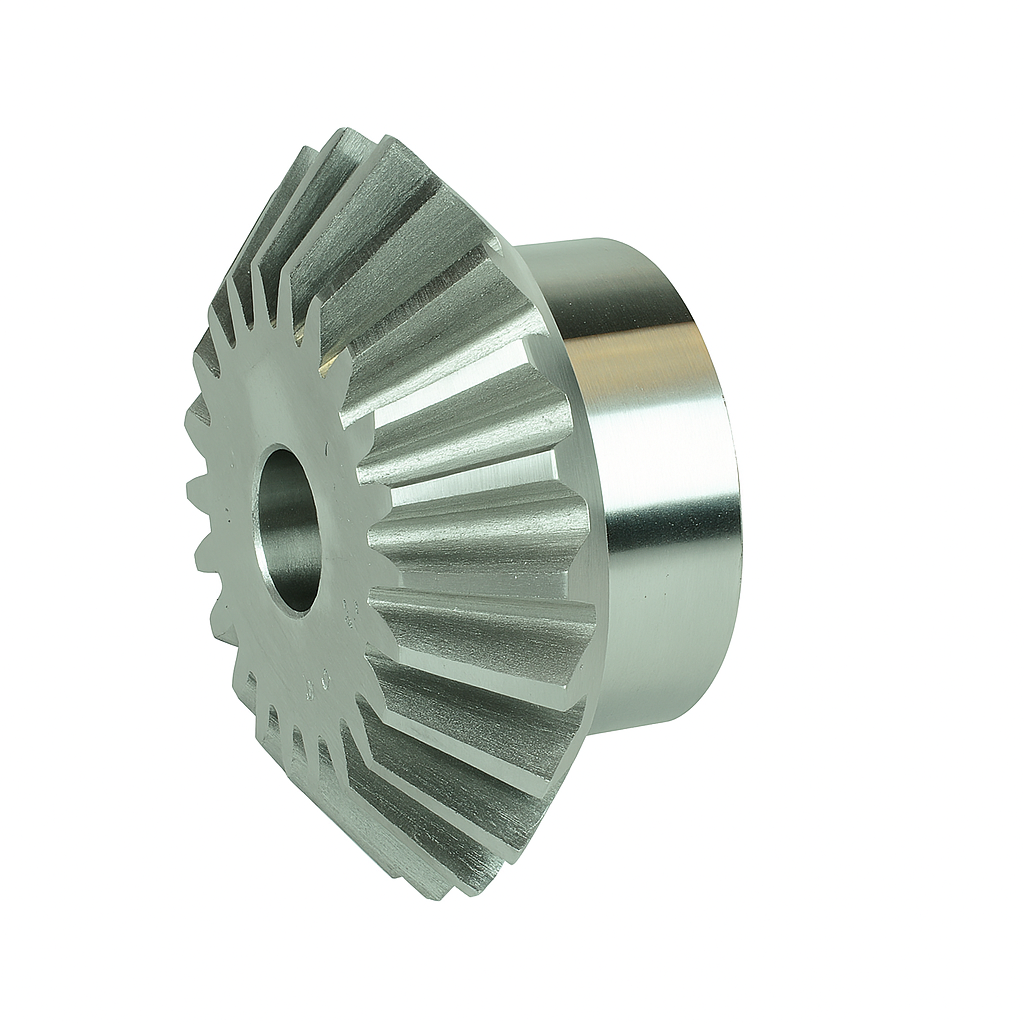

Name: Chiaravalli Standard Bevel Gear M4 1:4
Brand: Chiaravalli

Bevel Gears · M4 1:4

Select a row to add it to your quote

Teeth

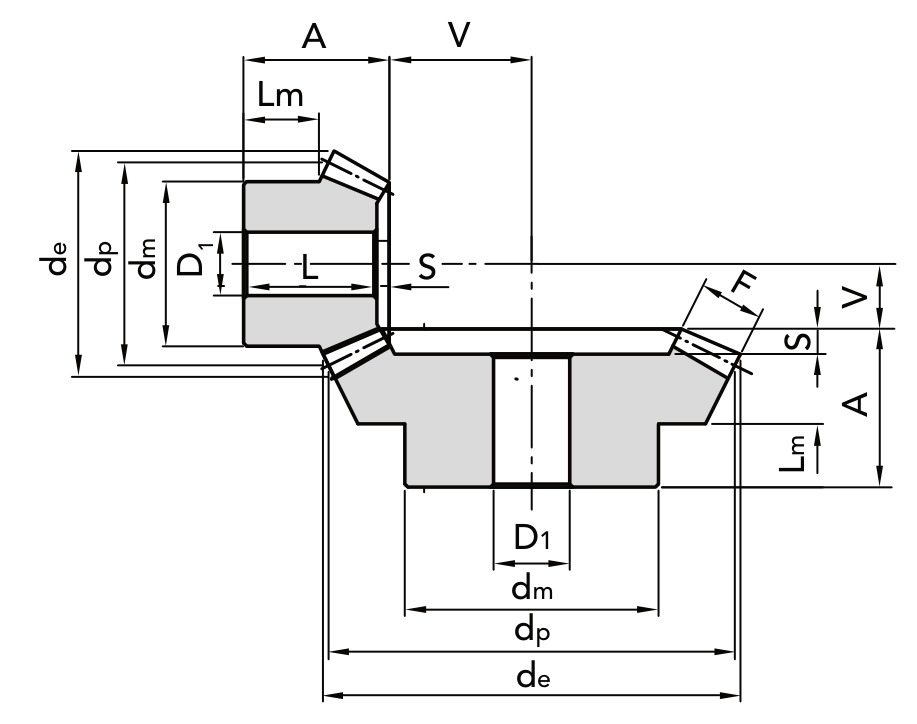

Code	Z	dp	de	F	A	dm	D1	L	V	S	Lm	Weight	CAD
`32401416`	`16`	`64` mm	`71.76` mm	`30` mm	`50` mm	`50` mm	`20` mm	`48` mm	`98.17` mm	`2` mm	`18.5` mm	`0.75` kg
`33401464`	`64`	`256` mm	`257.94` mm	`30` mm	`50` mm	`120` mm	`20` mm	`42` mm	`21.76` mm	`8` mm	`20` mm	`10.66` kg

Cross-References

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
