Chiaravalli

Standard Bevel Gear M4.5 1:1

Name: Chiaravalli Standard Bevel Gear M4.5 1:1
Brand: Chiaravalli

Bevel Gears · M4.5 1:1

Select a row to add it to your quote

Teeth

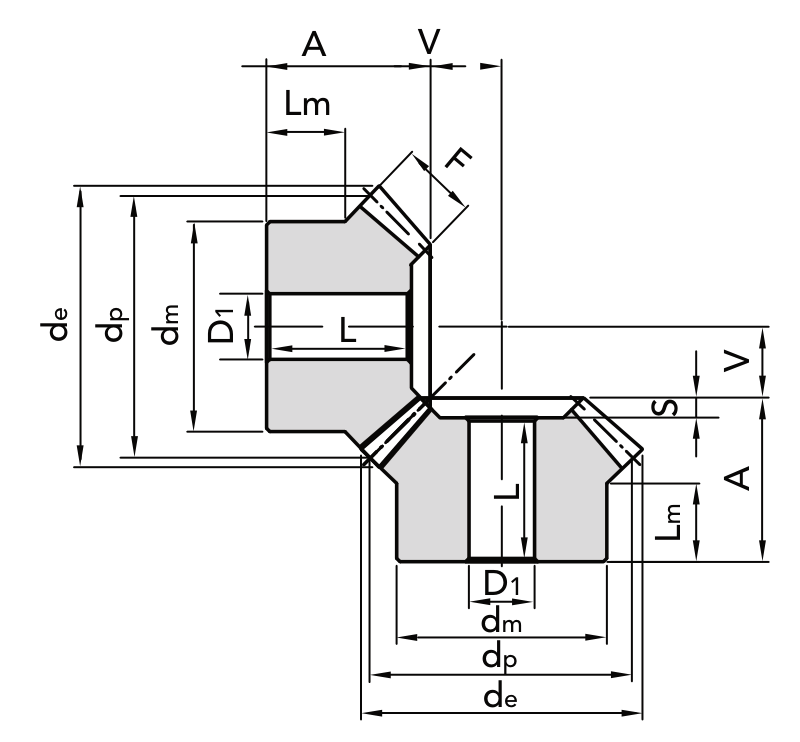

Code	Z	dp	de	F	A	dm	D1	L	V	S	Lm	Weight
`35451116`	`16`	`72` mm	`78.38` mm	`17.5` mm	`46.3` mm	`55.3` mm	`20` mm	—	`21.7` mm	—	`25` mm	`0.73` kg
`32451120`	`20`	`90` mm	`96.38` mm	`28` mm	`48` mm	`65` mm	`20` mm	`42` mm	`23.41` mm	`6` mm	`18` mm	`1.25` kg
`32451125`	`25`	`112.5` mm	`118.8` mm	`32` mm	`50` mm	`75` mm	`20` mm	`44` mm	`31.76` mm	`6` mm	`18` mm	`2.04` kg
`32451130`	`30`	`135` mm	`141.38` mm	`35` mm	`53` mm	`90` mm	`20` mm	`47` mm	`40.82` mm	`6` mm	`17` mm	`3.24` kg

Cross-References

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
