Chiaravalli Standard Bevel Gear M4.5 1:3
Chiaravalli

Standard Bevel Gear M4.5 1:3

Bevel Gears · M4.5 1:3

Product Configuration

Select a row to add it to your quote

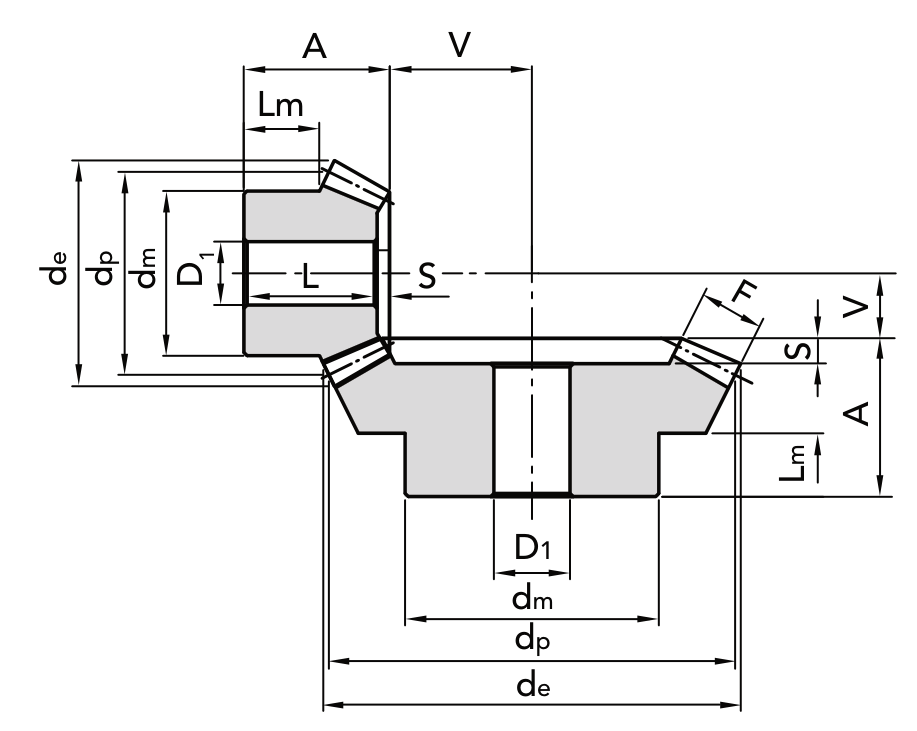

Code ZdpdeFAdmD1LVSLm Weight CAD
32451316 16 72 mm 80.53 mm 28 mm 53 mm 60 mm 20 mm 50 mm 80.27 mm 3 mm 23.4 mm 1.05 kg
33451348 48 216 mm 218.84 mm 28 mm 49 mm 100 mm 20 mm 40 mm 23.93 mm 9 mm 18 mm 7.23 kg

Product Information

Module (m)
4.5
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:3
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M4.5 1:3
  • standard bevel M4.5
  • M4.5 ratio 1:3 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
