Chiaravalli Standard Bevel Gear M4.5 1:4
Chiaravalli

Standard Bevel Gear M4.5 1:4

Bevel Gears · M4.5 1:4

Product Configuration

Select a row to add it to your quote

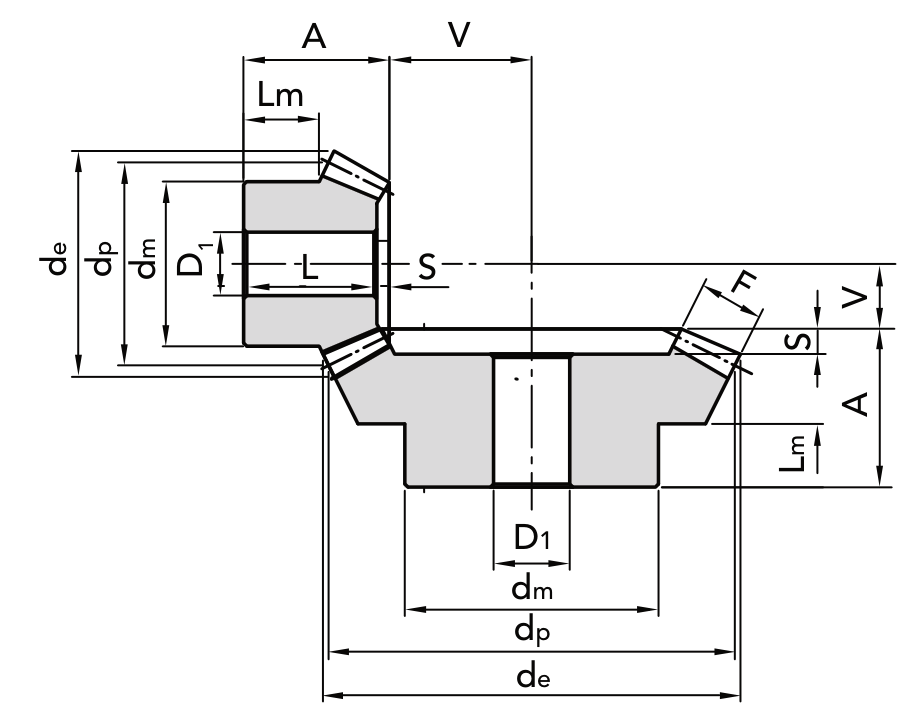

Code ZdpdeFAdmD1LVSLm Weight CAD
32451416 16 72 mm 80.73 mm 32 mm 53 mm 55 mm 20 mm 50.5 mm 112.08 mm 2.5 mm 19 mm 1.12 kg
33451464 64 288 mm 290.18 mm 32 mm 53 mm 130 mm 20 mm 44 mm 24.83 mm 9 mm 23 mm 13.8 kg

Product Information

Module (m)
4.5
Pressure Angle (α)
20°
Bevel Type
Standard
Ratio (i)
1:4
Standard
UNI 6588
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M4.5 1:4
  • standard bevel M4.5
  • M4.5 ratio 1:4 bevel
