Chiaravalli

Standard Bevel Gear M5 1:1

Name: Chiaravalli Standard Bevel Gear M5 1:1
Brand: Chiaravalli

Bevel Gears · M5 1:1

Select a row to add it to your quote

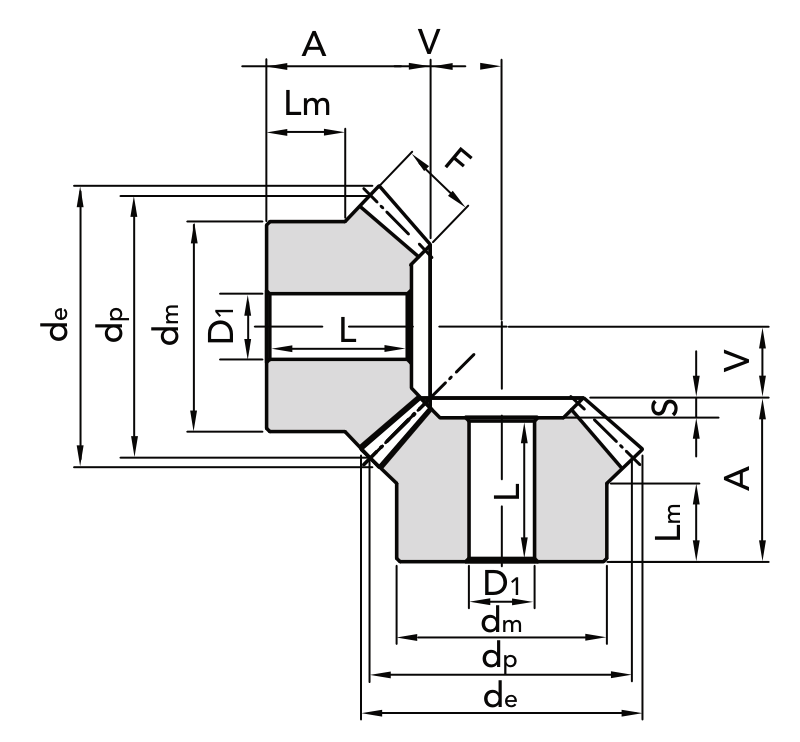

Teeth

Code	Z	dp	de	F	A	dm	D1	L	V	S	Lm	Weight
`35501116`	`16`	`80` mm	`87.07` mm	`18` mm	`48.9` mm	`60.3` mm	`20` mm	—	`25.1` mm	—	`25` mm	`0.94` kg
`32501120`	`20`	`100` mm	`107.07` mm	`30` mm	`50.5` mm	`70` mm	`20` mm	`44` mm	`26.86` mm	`6.5` mm	`18.5` mm	`1.61` kg
`32501125`	`25`	`125` mm	`132.07` mm	`34` mm	`53.5` mm	`90` mm	`20` mm	`47` mm	`36.36` mm	`6.5` mm	`18` mm	`2.94` kg
`32501130`	`30`	`150` mm	`157.07` mm	`38` mm	`56.5` mm	`110` mm	`20` mm	`50` mm	`45.97` mm	`6.5` mm	`18` mm	`4.46` kg

Cross-References

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
