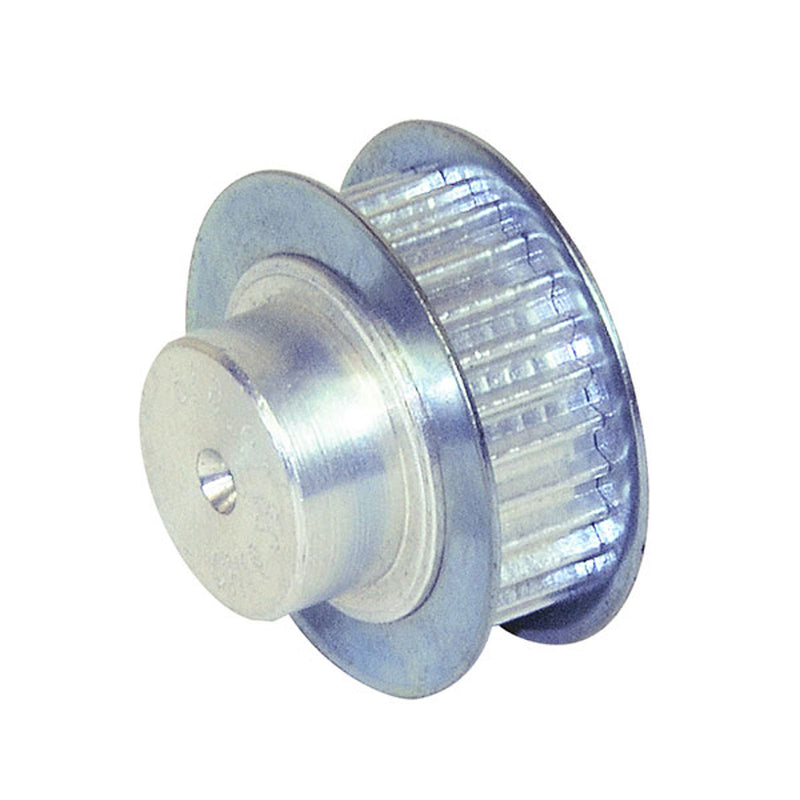

Chiaravalli T Metric Timing Pulley 16 T2,5 (2.5 mm pitch, 6 mm belt) — product photo
Chiaravalli

T Metric Timing Pulley 16 T2,5 (2.5 mm pitch, 6 mm belt)

Timing Pulleys

16 T2,5 metric timing pulley (T2.5 profile, 2.5 mm pitch, for 6 mm belt width) with pilot bore, teeth Z 12–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
45021612 12 0F 9.6 mm 9 mm 13 mm 13 mm 9 mm 16 mm — 0.01 kg
45021614 14 0F 11.2 mm 10.6 mm 15 mm 15 mm 9 mm 16 mm — 0.01 kg
45021615 15 0F 12 mm 11.4 mm 15 mm 15 mm 9 mm 16 mm — 0.01 kg
45021616 16 0F 12.8 mm 12.2 mm 16 mm 16 mm 9 mm 16 mm — 0.01 kg
45021618 18 1F 14.4 mm 13.8 mm 17.5 mm 10 mm 10 mm 16 mm — 0.01 kg
45021619 19 1F 15.2 mm 14.6 mm 20 mm 10 mm 10 mm 16 mm — 0.01 kg
45021620 20 1F 16 mm 15.4 mm 20 mm 11 mm 10 mm 16 mm — 0.01 kg
45021622 22 1F 17.6 mm 17 mm 22 mm 11 mm 10 mm 16 mm — 0.01 kg
45021624 24 1F 19.15 mm 18.55 mm 22 mm 12 mm 10 mm 16 mm 4 mm 0.01 kg
45021625 25 1F 19.95 mm 19.35 mm 25 mm 13 mm 10 mm 16 mm 4 mm 0.01 kg
45021626 26 1F 20.75 mm 20.15 mm 26 mm 14 mm 10 mm 16 mm 4 mm 0.01 kg
45021628 28 1F 22.35 mm 21.75 mm 26 mm 14 mm 10 mm 16 mm 4 mm 0.02 kg
45021630 30 1F 23.95 mm 23.35 mm 26 mm 16 mm 10 mm 16 mm 6 mm 0.02 kg
45021632 32 1F 25.55 mm 24.95 mm 32 mm 16 mm 10 mm 16 mm 6 mm 0.02 kg
45021636 36 1F 28.75 mm 28.1 mm 36 mm 20 mm 10 mm 16 mm 6 mm 0.03 kg
45021640 40 1F 31.9 mm 31.3 mm 38 mm 22 mm 10 mm 16 mm 6 mm 0.03 kg
45021644 44 2 35.1 mm 34.5 mm — 24 mm 10 mm 16 mm 6 mm 0.04 kg
45021648 48 2 38.3 mm 37.7 mm — 26 mm 10 mm 16 mm 6 mm 0.05 kg
45021660 60 2 47.85 mm 47.25 mm — 34 mm 10 mm 16 mm 8 mm 0.07 kg

Product Information

Material
Aluminium
Pitch
2.5 mm
