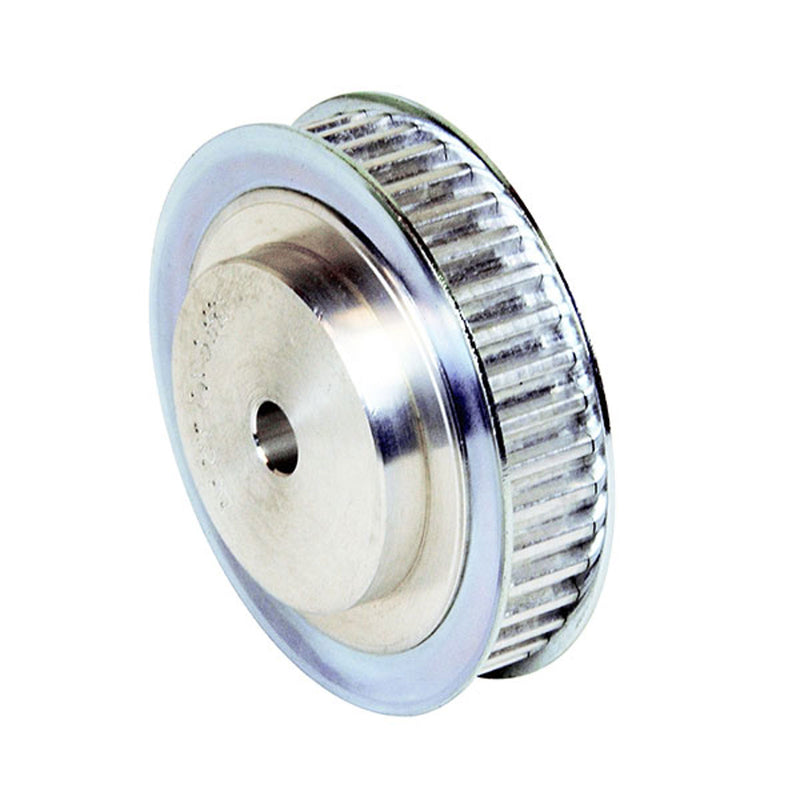

Chiaravalli T Metric Timing Pulley 21 T5 (5 mm pitch, 10 mm belt) — product photo
Chiaravalli

T Metric Timing Pulley 21 T5 (5 mm pitch, 10 mm belt)

Timing Pulleys

21 T5 metric timing pulley (T5 profile, 5 mm pitch, for 10 mm belt width) with pilot bore, teeth Z 10–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
45052110 10 1F 15.92 mm 15.05 mm 19.5 mm 8 mm 15 mm 21 mm — 0.01 kg
45052112 12 1F 19.1 mm 18.25 mm 23 mm 11 mm 15 mm 21 mm — 0.01 kg
45052114 14 1F 22.29 mm 21.45 mm 25 mm 13 mm 15 mm 21 mm — 0.02 kg
45052115 15 1F 23.88 mm 23.05 mm 28 mm 16 mm 15 mm 21 mm 6 mm 0.02 kg
45052116 16 1F 25.47 mm 24.6 mm 32 mm 18 mm 15 mm 21 mm 6 mm 0.03 kg
45052118 18 1F 28.65 mm 27.8 mm 32 mm 20 mm 15 mm 21 mm 6 mm 0.03 kg
45052119 19 1F 30.25 mm 29.4 mm 36 mm 22 mm 15 mm 21 mm 6 mm 0.04 kg
45052120 20 1F 31.83 mm 31 mm 36 mm 23 mm 15 mm 21 mm 6 mm 0.04 kg
45052122 22 1F 35.02 mm 34.15 mm 38 mm 24 mm 15 mm 21 mm 6 mm 0.05 kg
45052124 24 1F 38.21 mm 37.4 mm 42 mm 26 mm 15 mm 21 mm 6 mm 0.06 kg
45052125 25 1F 39.8 mm 38.95 mm 44 mm 26 mm 15 mm 21 mm 6 mm 0.06 kg
45052126 26 1F 41.39 mm 40.6 mm 44 mm 26 mm 15 mm 21 mm 6 mm 0.06 kg
45052127 27 1F 42.98 mm 42.2 mm 48 mm 30 mm 15 mm 21 mm 8 mm 0.07 kg
45052128 28 1F 44.58 mm 43.75 mm 48 mm 32 mm 15 mm 21 mm 8 mm 0.07 kg
45052130 30 1F 47.76 mm 46.95 mm 51 mm 34 mm 15 mm 21 mm 8 mm 0.07 kg
45052132 32 1F 50.94 mm 50.1 mm 54 mm 38 mm 15 mm 21 mm 8 mm 0.09 kg
45052136 36 1F 57.31 mm 56.45 mm 64 mm 38 mm 15 mm 21 mm 8 mm 0.11 kg
45052140 40 1F 63.66 mm 62.85 mm 66.5 mm 40 mm 15 mm 21 mm 8 mm 0.14 kg
45052142 42 1F 66.86 mm 66 mm 70 mm 40 mm 15 mm 21 mm 8 mm 0.18 kg
45052144 44 2 70.05 mm 69.2 mm — 45 mm 15 mm 21 mm 8 mm 0.18 kg
45052148 48 2 76.42 mm 75.55 mm — 50 mm 15 mm 21 mm 8 mm 0.2 kg
45052160 60 2 95.52 mm 94.65 mm — 65 mm 15 mm 21 mm 8 mm 0.31 kg

Product Information

Material
Aluminium
Pitch
5.0 mm
