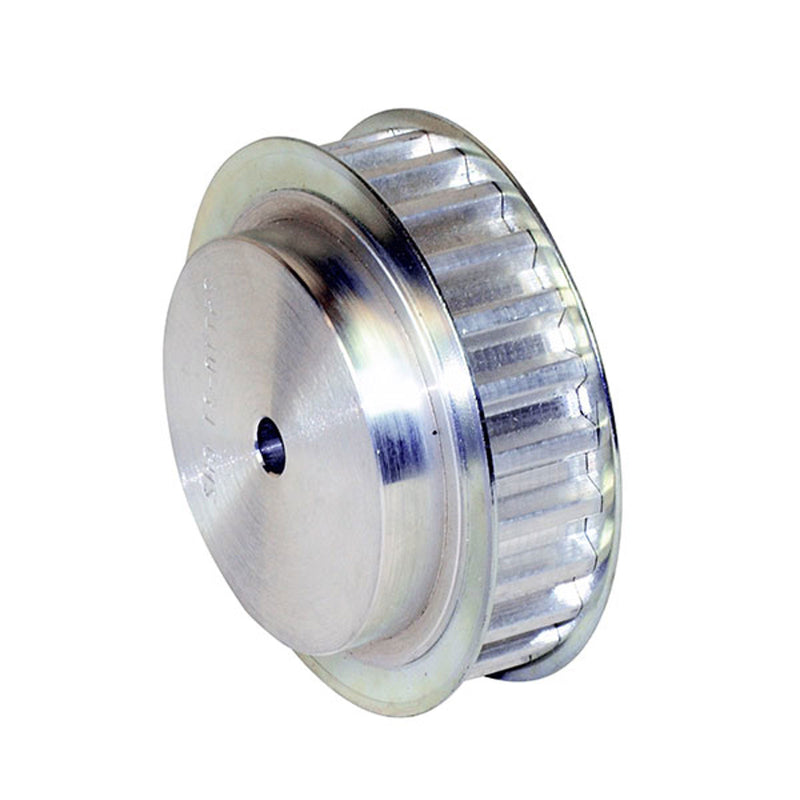

Chiaravalli T Metric Timing Pulley 31 T10 (10 mm pitch, 16 mm belt) — product photo
Chiaravalli

T Metric Timing Pulley 31 T10 (10 mm pitch, 16 mm belt)

Timing Pulleys

31 T10 metric timing pulley (T10 profile, 10 mm pitch, for 16 mm belt width) with pilot bore, teeth Z 12–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
45103112 12 1F 38.2 mm 36.35 mm 42 mm 28 mm 21 mm 31 mm 6 mm 0.08 kg
45103114 14 1F 44.56 mm 42.7 mm 48 mm 32 mm 21 mm 31 mm 8 mm 0.1 kg
45103115 15 1F 47.75 mm 45.9 mm 51 mm 32 mm 21 mm 31 mm 8 mm 0.12 kg
45103116 16 1F 50.93 mm 49.1 mm 54 mm 35 mm 21 mm 31 mm 8 mm 0.13 kg
45103118 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 21 mm 31 mm 8 mm 0.17 kg
45103119 19 1F 60.48 mm 58.65 mm 66 mm 44 mm 21 mm 31 mm 8 mm 0.18 kg
45103120 20 1F 63.66 mm 61.8 mm 66 mm 46 mm 21 mm 31 mm 8 mm 0.21 kg
45103122 22 1F 70.03 mm 68.2 mm 75 mm 52 mm 21 mm 31 mm 8 mm 0.25 kg
45103124 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 21 mm 31 mm 8 mm 0.29 kg
45103125 25 1F 79.58 mm 77.75 mm 83 mm 60 mm 21 mm 31 mm 8 mm 0.31 kg
45103126 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 21 mm 31 mm 8 mm 0.36 kg
45103127 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 21 mm 31 mm 8 mm 0.37 kg
45103128 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 21 mm 31 mm 8 mm 0.4 kg
45103130 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 21 mm 31 mm 8 mm 0.44 kg
45103132 32 1F 101.86 mm 100 mm 106 mm 65 mm 21 mm 31 mm 10 mm 0.49 kg
45103136 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 21 mm 31 mm 10 mm 0.62 kg
45103140 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 21 mm 31 mm 10 mm 0.77 kg
45103144 44 2 140.05 mm 138.2 mm — 88 mm 21 mm 31 mm 10 mm 1.0 kg
45103148 48 2 152.78 mm 150.95 mm — 95 mm 21 mm 31 mm 16 mm 1.1 kg
45103160 60 2 190.98 mm 189.1 mm — 110 mm 21 mm 31 mm 16 mm 1.7 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
