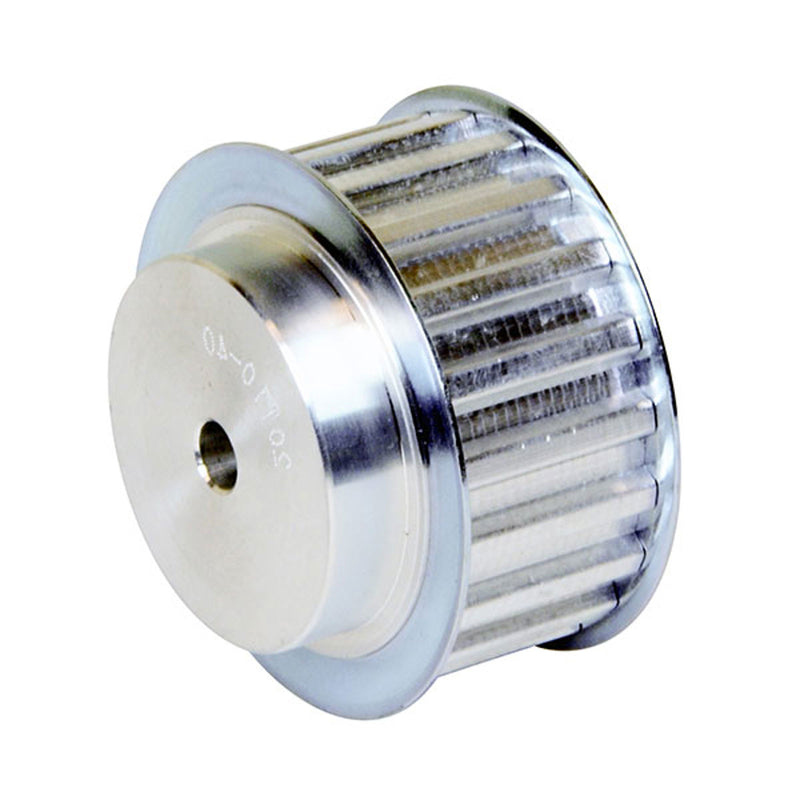

Chiaravalli T Metric Timing Pulley 40 T10 (10 mm pitch, 25 mm belt) — product photo
Chiaravalli

T Metric Timing Pulley 40 T10 (10 mm pitch, 25 mm belt)

Timing Pulleys

40 T10 metric timing pulley (T10 profile, 10 mm pitch, for 25 mm belt width) with pilot bore, teeth Z 12–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
45104012 12 1F 38.2 mm 36.35 mm 42 mm 28 mm 30 mm 40 mm 6 mm 0.1 kg
45104014 14 1F 44.56 mm 42.7 mm 48 mm 32 mm 30 mm 40 mm 8 mm 0.13 kg
45104015 15 1F 47.75 mm 45.9 mm 51 mm 32 mm 30 mm 40 mm 8 mm 0.15 kg
45104016 16 1F 50.93 mm 49.1 mm 54 mm 35 mm 30 mm 40 mm 8 mm 0.18 kg
45104018 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 30 mm 40 mm 8 mm 0.22 kg
45104019 19 1F 60.48 mm 58.65 mm 66 mm 44 mm 30 mm 40 mm 8 mm 0.25 kg
45104020 20 1F 63.66 mm 61.8 mm 66 mm 46 mm 30 mm 40 mm 8 mm 0.28 kg
45104022 22 1F 70.03 mm 68.2 mm 75 mm 52 mm 30 mm 40 mm 8 mm 0.34 kg
45104024 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 30 mm 40 mm 8 mm 0.39 kg
45104025 25 1F 79.58 mm 77.75 mm 83 mm 60 mm 30 mm 40 mm 8 mm 0.42 kg
45104026 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 30 mm 40 mm 8 mm 0.48 kg
45104027 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 30 mm 40 mm 8 mm 0.54 kg
45104028 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 30 mm 40 mm 8 mm 0.55 kg
45104030 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 30 mm 40 mm 8 mm 0.64 kg
45104032 32 1F 101.86 mm 100 mm 106 mm 65 mm 30 mm 40 mm 10 mm 0.69 kg
45104036 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 30 mm 40 mm 10 mm 0.87 kg
45104040 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 30 mm 40 mm 10 mm 1.07 kg
45104044 44 2 140.05 mm 138.2 mm — 88 mm 30 mm 40 mm 10 mm 1.35 kg
45104048 48 2 152.78 mm 150.95 mm — 95 mm 30 mm 40 mm 16 mm 1.52 kg
45104060 60 2 190.98 mm 189.15 mm — 110 mm 30 mm 40 mm 16 mm 2.34 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
