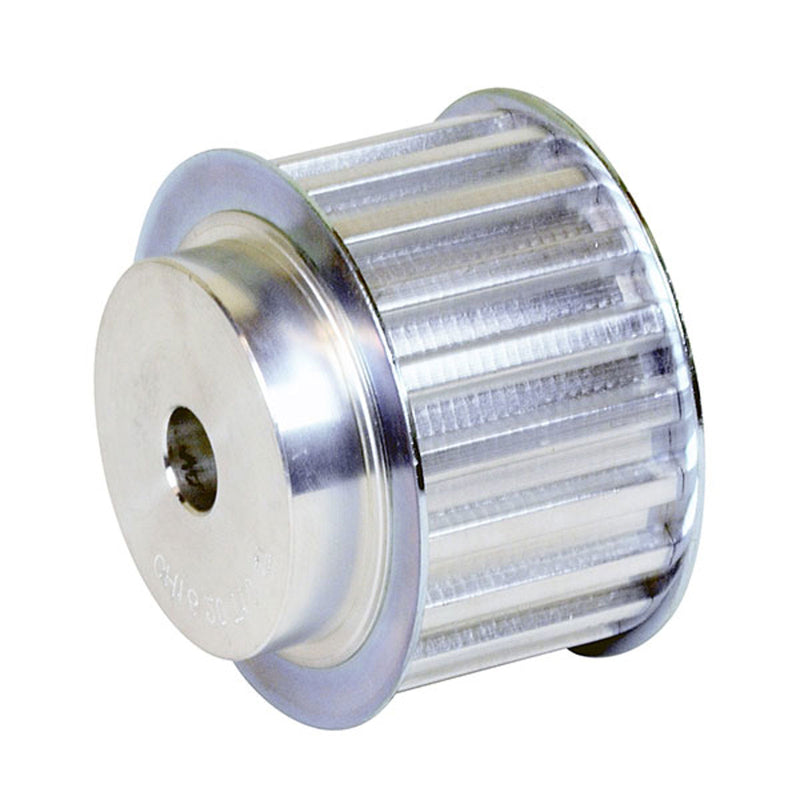

Chiaravalli T Metric Timing Pulley 47 T10 (10 mm pitch, 32 mm belt) — product photo
Chiaravalli

T Metric Timing Pulley 47 T10 (10 mm pitch, 32 mm belt)

Timing Pulleys

47 T10 metric timing pulley (T10 profile, 10 mm pitch, for 32 mm belt width) with pilot bore, teeth Z 18–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
45104718 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 37 mm 47 mm 10 mm 0.25 kg
45104719 19 1F 60.48 mm 58.6 mm 66 mm 44 mm 37 mm 47 mm 10 mm 0.29 kg
45104720 20 1F 63.66 mm 61.8 mm 66 mm 46 mm 37 mm 47 mm 12 mm 0.32 kg
45104722 22 1F 70.03 mm 68.2 mm 75 mm 52 mm 37 mm 47 mm 12 mm 0.39 kg
45104724 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 37 mm 47 mm 12 mm 0.47 kg
45104725 25 1F 79.58 mm 77.75 mm 83 mm 60 mm 37 mm 47 mm 12 mm 0.53 kg
45104726 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 37 mm 47 mm 12 mm 0.56 kg
45104727 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 37 mm 47 mm 12 mm 0.6 kg
45104728 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 37 mm 47 mm 12 mm 0.64 kg
45104730 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 37 mm 47 mm 12 mm 0.74 kg
45104732 32 1F 101.86 mm 100 mm 106 mm 65 mm 37 mm 47 mm 12 mm 0.84 kg
45104736 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 37 mm 47 mm 16 mm 1.06 kg
45104740 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 37 mm 47 mm 16 mm 1.32 kg
45104744 44 2 140.05 mm 138.2 mm — 88 mm 37 mm 47 mm 16 mm 1.61 kg
45104748 48 2 152.78 mm 150.95 mm — 95 mm 37 mm 47 mm 16 mm 1.93 kg
45104760 60 2 190.98 mm 189.1 mm — 110 mm 37 mm 47 mm 16 mm 3.0 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
