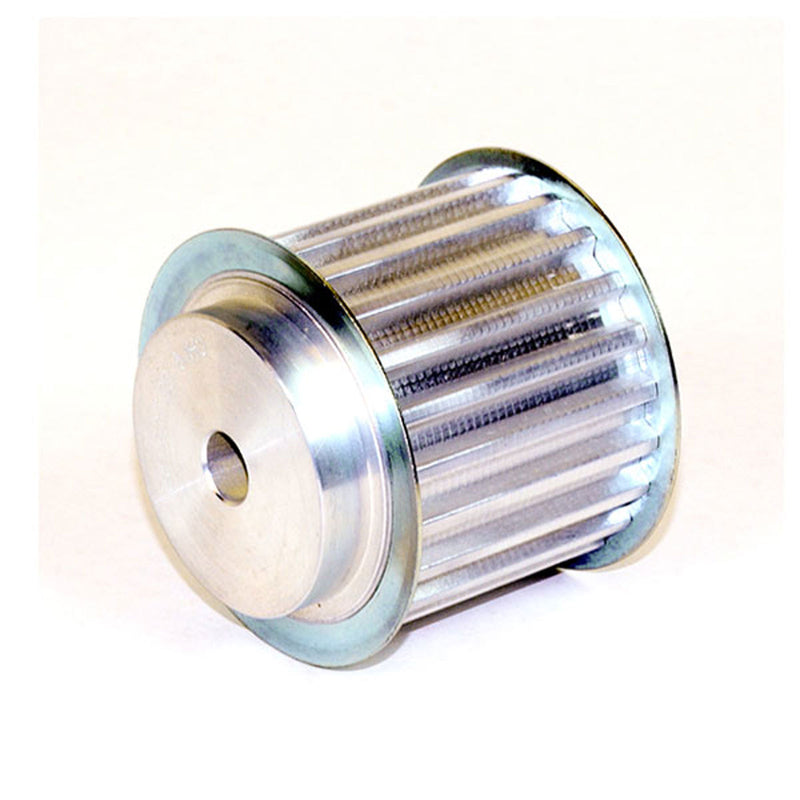

Chiaravalli T Metric Timing Pulley 66 T10 (10 mm pitch, 50 mm belt) — product photo
Chiaravalli

T Metric Timing Pulley 66 T10 (10 mm pitch, 50 mm belt)

Timing Pulleys

66 T10 metric timing pulley (T10 profile, 10 mm pitch, for 50 mm belt width) with pilot bore, teeth Z 18–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
45106618 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 56 mm 66 mm 10 mm 0.42 kg
45106619 19 1F 60.48 mm 58.65 mm 66 mm 44 mm 56 mm 66 mm 10 mm 0.47 kg
45106620 20 1F 63.66 mm 61.8 mm 66 mm 46 mm 56 mm 66 mm 12 mm 0.52 kg
45106622 22 1F 70.03 mm 68.2 mm 75 mm 52 mm 56 mm 66 mm 12 mm 0.57 kg
45106624 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 56 mm 66 mm 12 mm 0.74 kg
45106625 25 1F 79.58 mm 77.7 mm 83 mm 60 mm 56 mm 66 mm 12 mm 0.77 kg
45106626 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 56 mm 66 mm 12 mm 0.82 kg
45106627 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 56 mm 66 mm 12 mm 0.95 kg
45106628 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 56 mm 66 mm 12 mm 0.96 kg
45106630 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 56 mm 66 mm 12 mm 1.17 kg
45106632 32 1F 101.86 mm 100 mm 106 mm 65 mm 56 mm 66 mm 12 mm 1.3 kg
45106636 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 56 mm 66 mm 16 mm 1.64 kg
45106640 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 56 mm 66 mm 16 mm 2.0 kg
45106644 44 2 140.05 mm 138.2 mm — 88 mm 56 mm 66 mm 16 mm 2.36 kg
45106648 48 2 152.78 mm 150.95 mm — 95 mm 56 mm 66 mm 16 mm 2.83 kg
45106660 60 2 190.98 mm 189.1 mm — 110 mm 56 mm 66 mm 16 mm 4.37 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
