Chiaravalli Taper-Lock® Chain Sprocket 06B-1 Simplex (3/8″)
Chiaravalli

Taper-Lock® Chain Sprocket 06B-1 Simplex (3/8″)

Chain Sprockets

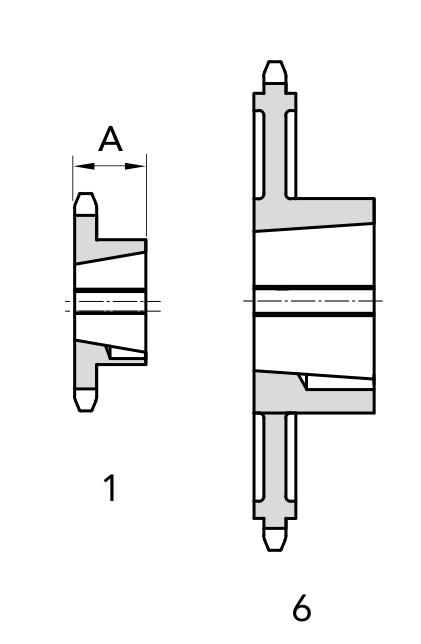

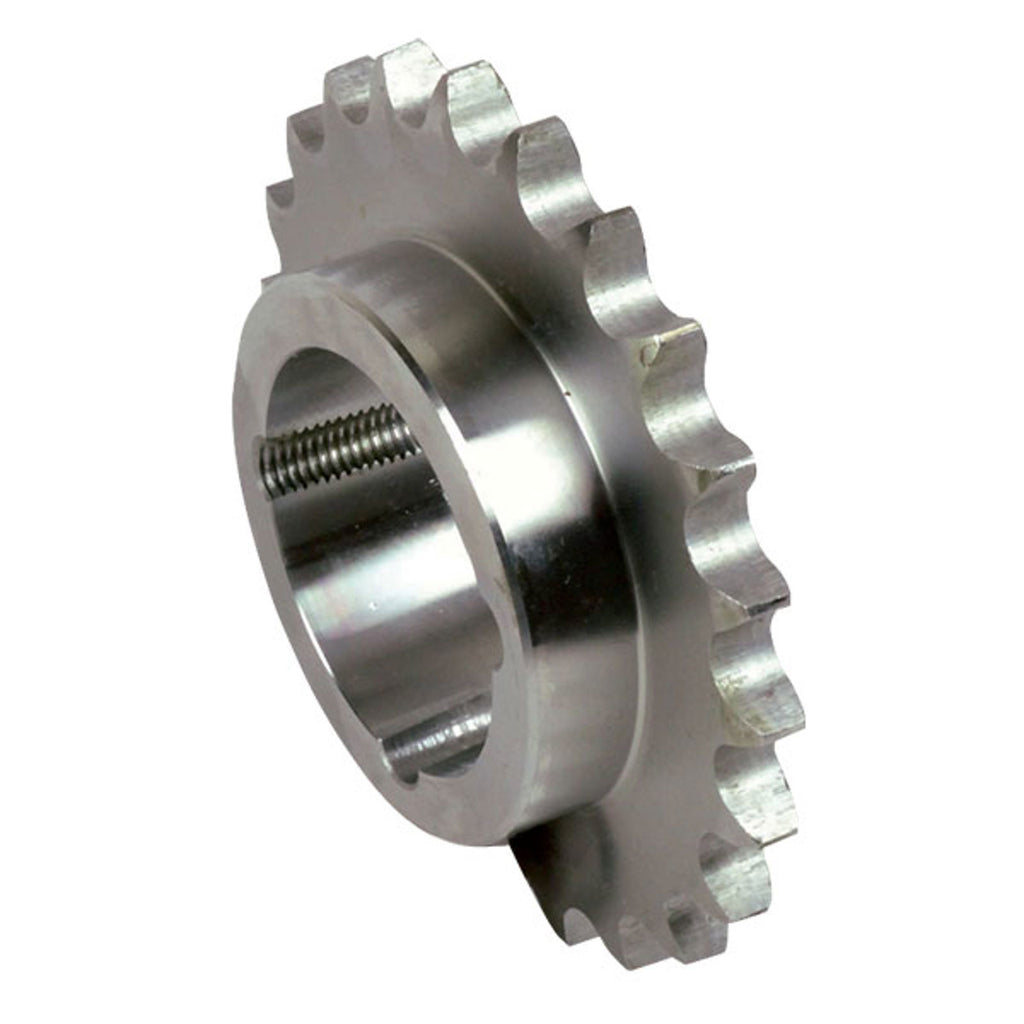

Simplex Taper-Lock® chain sprocket for 06B-1 roller chain (3/8″ pitch). The Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).

An induction-hardened-teeth version exists for part of the range — see the Hardened Teeth Taper-Lock® category.

Product Configuration

Select a row to add it to your quote

Code ZCod. pitchFor taper bushExec. typeDm Ø hubAMaterial Weight
17109017 17 031-17 1008 1 44.5 mm 22 mm Steel C 45 UNI 5007 0.11 kg
17109018 18 031-18 1008 1 43 mm 22 mm Steel C 45 UNI 5007 0.14 kg
17109019 19 031-19 1008 1 46 mm 22 mm Steel C 45 UNI 5007 0.15 kg
17109020 20 031-20 1008 1 46 mm 22 mm Steel C 45 UNI 5007 0.16 kg
17109021 21 031-21 1008 1 46 mm 22 mm Steel C 45 UNI 5007 0.18 kg
17109022 22 031-22 1108 1 50 mm 22 mm Steel C 45 UNI 5007 0.25 kg
17109023 23 031-23 1210 1 62 mm 25 mm Steel C 45 UNI 5007 0.27 kg
17109024 24 031-24 1210 1 62 mm 25 mm Steel C 45 UNI 5007 0.3 kg
17109025 25 031-25 1210 1 63 mm 25 mm Steel C 45 UNI 5007 0.32 kg
17109026 26 031-26 1210 1 60 mm 25 mm Steel C 45 UNI 5007 0.33 kg
17109027 27 031-27 1210 1 60 mm 25 mm Steel C 45 UNI 5007 0.34 kg
17109028 28 031-28 1210 1 60 mm 25 mm Steel C 45 UNI 5007 0.37 kg
17109030 30 031-30 1210 1 63 mm 25 mm Steel C 45 UNI 5007 0.39 kg
17109038 38 031-38 1210 1 73 mm 25 mm Steel C 45 UNI 5007 0.65 kg
17109045 45 031-45 1210 1 73 mm 25 mm Steel C 45 UNI 5007 1.01 kg
17109057 57 031-57 1210 6 83 mm 25 mm Cast iron GG20 UNI 5007 1.34 kg
17109076 76 031-76 1210 6 83 mm 25 mm Cast iron GG20 UNI 5007 1.84 kg
17109095 95 031-95 1210 6 83 mm 25 mm Cast iron GG20 UNI 5007 2.3 kg
17109114 114 031-114 1215 6 83 mm 38 mm Cast iron GG20 UNI 5007 3.5 kg
