Chiaravalli Taper-Lock® Chain Sprocket 06B-2 Duplex (3/8″) — dimension drawing
Chiaravalli

Taper-Lock® Chain Sprocket 06B-2 Duplex (3/8″)

Chain Sprockets

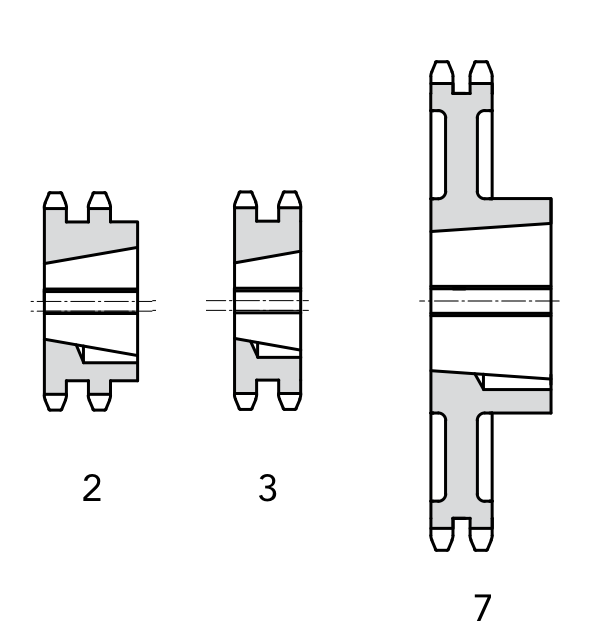

Duplex Taper-Lock® chain sprocket for 06B-2 roller chain (3/8″ pitch). The Exec. type column refers to the hub execution figures 2, 3 and 7 on the dimension drawing (Dm = Ø hub).

Product Configuration

Select a row to add it to your quote

Code ZCod. pitchFor taper bushExec. typeDm Ø hubAMaterial Weight
17209017 17 032-17 1008 2 42.5 mm 22 mm Steel C 45 UNI 5007 0.11 kg
17209018 18 032-18 1008 2 43 mm 22 mm Steel C 45 UNI 5007 0.15 kg
17209019 19 032-19 1008 2 46 mm 22 mm Steel C 45 UNI 5007 0.18 kg
17209020 20 032-20 1008 2 48 mm 22 mm Steel C 45 UNI 5007 0.22 kg
17209021 21 032-21 1008 2 49 mm 22 mm Steel C 45 UNI 5007 0.16 kg
17209022 22 032-22 1108 2 52 mm 22 mm Steel C 45 UNI 5007 0.28 kg
17209023 23 032-23 1210 2 58 mm 25 mm Steel C 45 UNI 5007 0.27 kg
17209024 24 032-24 1210 2 61 mm 25 mm Steel C 45 UNI 5007 0.32 kg
17209025 25 032-25 1210 2 64 mm 25 mm Steel C 45 UNI 5007 0.37 kg
17209026 26 032-26 1210 2 65 mm 25 mm Steel C 45 UNI 5007 0.44 kg
17209027 27 032-27 1210 2 65 mm 25 mm Steel C 45 UNI 5007 0.5 kg
17209028 28 032-28 1210 2 65 mm 25 mm Steel C 45 UNI 5007 0.57 kg
17209030 30 032-30 1210 2 65 mm 25 mm Steel C 45 UNI 5007 0.68 kg
17209038 38 032-38 1610 2 76 mm 25 mm Steel C 45 UNI 5007 1.03 kg
17209045 45 032-45 1610 2 89 mm 25 mm Steel C 45 UNI 5007 1.08 kg
17209057 57 032-57 1610 7 89 mm 25 mm Cast iron GG20 UNI 5007 1.16 kg
17209076 76 032-76 1610 7 89 mm 25 mm Cast iron GG20 UNI 5007 2.19 kg
17209095 95 032-95 1610 7 89 mm 25 mm Cast iron GG20 UNI 5007 3.0 kg
17209114 114 032-114 1615 7 89 mm 38 mm Cast iron GG20 UNI 5007 5.0 kg
