Taper-Lock® Chain Sprocket 08B-1 Simplex (1/2″)

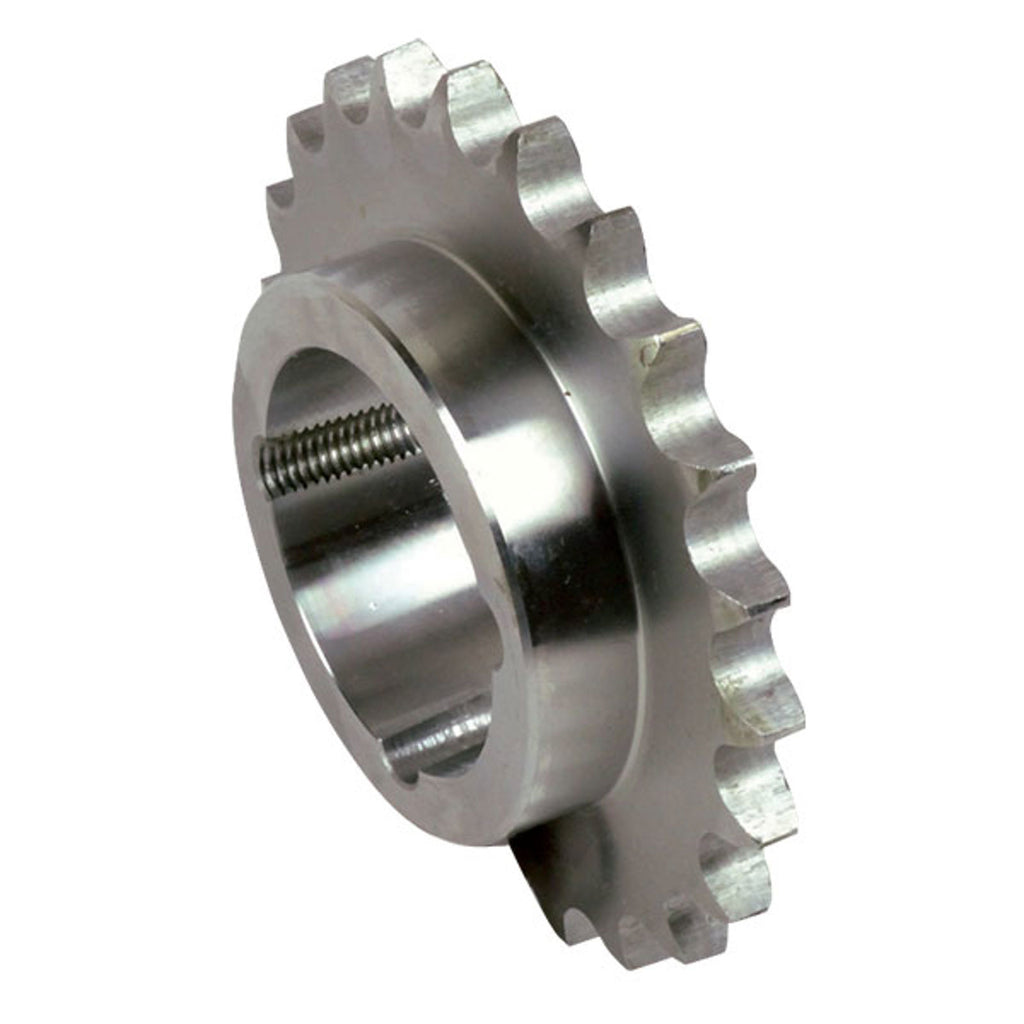

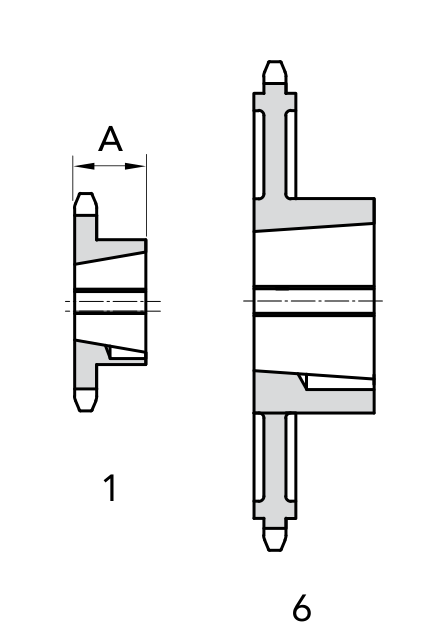

Simplex Taper-Lock® chain sprocket for 08B-1 roller chain (1/2″ pitch). The Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
An induction-hardened-teeth version exists for part of the range — see the Hardened Teeth Taper-Lock® category.
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Material | Weight |
|---|---|---|---|---|---|---|---|---|
17112015 |
15
|
041-15
|
1008
|
1
|
46 mm
|
22 mm
|
Steel C 45 UNI 5007
|
0.16 kg
|
17112016 |
16
|
041-16
|
1108
|
1
|
50 mm
|
22 mm
|
Steel C 45 UNI 5007
|
0.2 kg
|
17112017 |
17
|
041-17
|
1210
|
1
|
59.5 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.22 kg
|
17112018 |
18
|
041-18
|
1210
|
1
|
60 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.27 kg
|
17112019 |
19
|
041-19
|
1210
|
1
|
63 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.33 kg
|
17112020 |
20
|
041-20
|
1610
|
1
|
71 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.36 kg
|
17112021 |
21
|
041-21
|
1610
|
1
|
71 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.36 kg
|
17112022 |
22
|
041-22
|
1610
|
1
|
70 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.36 kg
|
17112023 |
23
|
041-23
|
1610
|
1
|
76 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.5 kg
|
17112024 |
24
|
041-24
|
1610
|
1
|
70 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.53 kg
|
17112025 |
25
|
041-25
|
1610
|
1
|
76 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.56 kg
|
17112026 |
26
|
041-26
|
1610
|
1
|
70 mm
|
32 mm
|
Steel C 45 UNI 5007
|
0.6 kg
|
17112027 |
27
|
041-27
|
1610
|
1
|
76 mm
|
32 mm
|
Steel C 45 UNI 5007
|
0.63 kg
|
17112028 |
28
|
041-28
|
2012
|
1
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
0.87 kg
|
17112030 |
30
|
041-30
|
2012
|
1
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
0.91 kg
|
17112038 |
38
|
041-38
|
2012
|
1
|
102 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.25 kg
|
17112045 |
45
|
041-45
|
2012
|
1
|
102 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.68 kg
|
17112057 |
57
|
041-57
|
2012
|
6
|
111 mm
|
32 mm
|
Cast iron GG20 UNI 5007
|
2.78 kg
|
17112076 |
76
|
041-76
|
2012
|
6
|
111 mm
|
32 mm
|
Cast iron GG20 UNI 5007
|
3.81 kg
|
17112095 |
95
|
041-95
|
2012
|
6
|
111 mm
|
32 mm
|
Cast iron GG20 UNI 5007
|
5.0 kg
|
17112114 |
114
|
041-114
|
2517
|
6
|
124 mm
|
45 mm
|
Cast iron GG20 UNI 5007
|
6.5 kg
|
No products match the selected filters.
