Chiaravalli

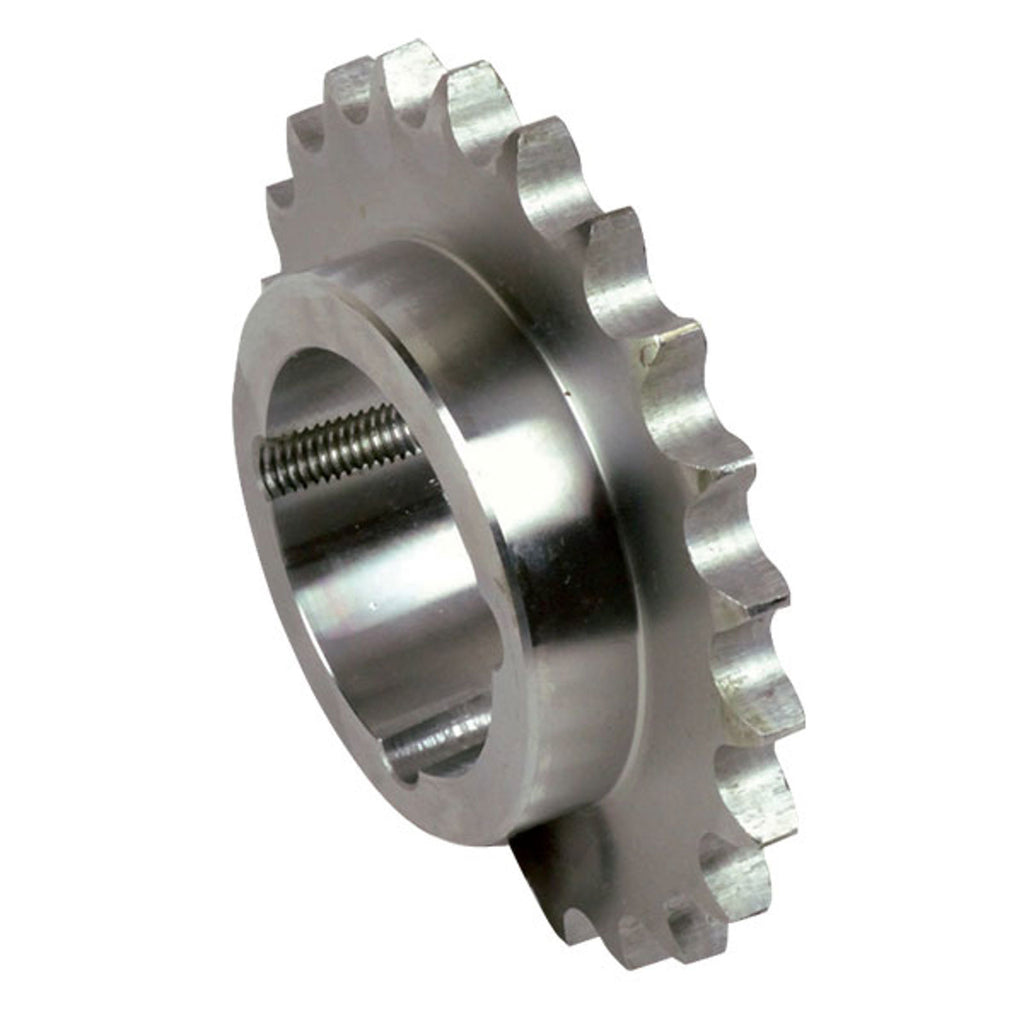

Taper-Lock® Chain Sprocket 10B-1 Simplex (5/8″)

Name: Chiaravalli Taper-Lock® Chain Sprocket 10B-1 Simplex (5/8″)
Brand: Chiaravalli

Chain Sprockets

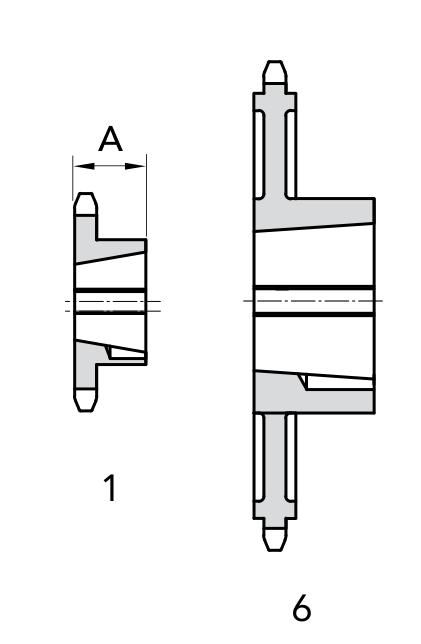

Simplex Taper-Lock® chain sprocket for 10B-1 roller chain (5/8″ pitch). The Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).

An induction-hardened-teeth version exists for part of the range — see the Hardened Teeth Taper-Lock® category.

Select a row to add it to your quote

Teeth

Code	Z	Cod. pitch	For taper bush	Exec. type	Dm Ø hub	A	Material	Weight
`17115013`	`13`	`051-13`	`1008`	`1`	`46` mm	`22` mm	`Steel C 45 UNI 5007`	`0.23` kg
`17115014`	`14`	`051-14`	`1108`	`1`	`52` mm	`22` mm	`Steel C 45 UNI 5007`	`0.27` kg
`17115015`	`15`	`051-15`	`1210`	`1`	`63` mm	`25` mm	`Steel C 45 UNI 5007`	`0.3` kg
`17115016`	`16`	`051-16`	`1610`	`1`	`70` mm	`25` mm	`Steel C 45 UNI 5007`	`0.38` kg
`17115017`	`17`	`051-17`	`1610`	`1`	`71` mm	`25` mm	`Steel C 45 UNI 5007`	`0.38` kg
`17115018`	`18`	`051-18`	`1610`	`1`	`75` mm	`25` mm	`Steel C 45 UNI 5007`	`0.43` kg
`17115019`	`19`	`051-19`	`1610`	`1`	`76` mm	`25` mm	`Steel C 45 UNI 5007`	`0.54` kg
`17115020`	`20`	`051-20`	`1610`	`1`	`75` mm	`25` mm	`Steel C 45 UNI 5007`	`0.61` kg
`17115021`	`21`	`051-21`	`1610`	`1`	`76` mm	`25` mm	`Steel C 45 UNI 5007`	`0.65` kg
`17115022`	`22`	`051-22`	`1610`	`1`	`76` mm	`25` mm	`Steel C 45 UNI 5007`	`0.72` kg
`17115023`	`23`	`051-23`	`1610`	`1`	`76` mm	`25` mm	`Steel C 45 UNI 5007`	`0.77` kg
`17115024`	`24`	`051-24`	`2012`	`1`	`90` mm	`32` mm	`Steel C 45 UNI 5007`	`0.98` kg
`17115025`	`25`	`051-25`	`2012`	`1`	`90` mm	`32` mm	`Steel C 45 UNI 5007`	`1.05` kg
`17115026`	`26`	`051-26`	`2012`	`1`	`85` mm	`32` mm	`Steel C 45 UNI 5007`	`1.11` kg
`17115027`	`27`	`051-27`	`2012`	`1`	`90` mm	`32` mm	`Steel C 45 UNI 5007`	`1.17` kg
`17115028`	`28`	`051-28`	`2012`	`1`	`90` mm	`32` mm	`Steel C 45 UNI 5007`	`1.29` kg
`17115030`	`30`	`051-30`	`2012`	`1`	`90` mm	`32` mm	`Steel C 45 UNI 5007`	`1.4` kg
`17115038`	`38`	`051-38`	`2012`	`1`	`102` mm	`32` mm	`Steel C 45 UNI 5007`	`2.43` kg
`17115045`	`45`	`051-45`	`2012`	`1`	`111` mm	`32` mm	`Steel C 45 UNI 5007`	`3.55` kg
`17115057`	`57`	`051-57`	`2012`	`6`	`111` mm	`32` mm	`Cast iron GG20 UNI 5007`	`4.28` kg
`17115076`	`76`	`051-76`	`2012`	`6`	`111` mm	`32` mm	`Cast iron GG20 UNI 5007`	`5.95` kg
`17115095`	`95`	`051-95`	`2517`	`6`	`124` mm	`45` mm	`Cast iron GG20 UNI 5007`	`7.5` kg
`17115114`	`114`	`051-114`	`2517`	`6`	`124` mm	`45` mm	`Cast iron GG20 UNI 5007`	`11.2` kg
