Taper-Lock® Chain Sprocket 10B-2 Duplex (5/8″)

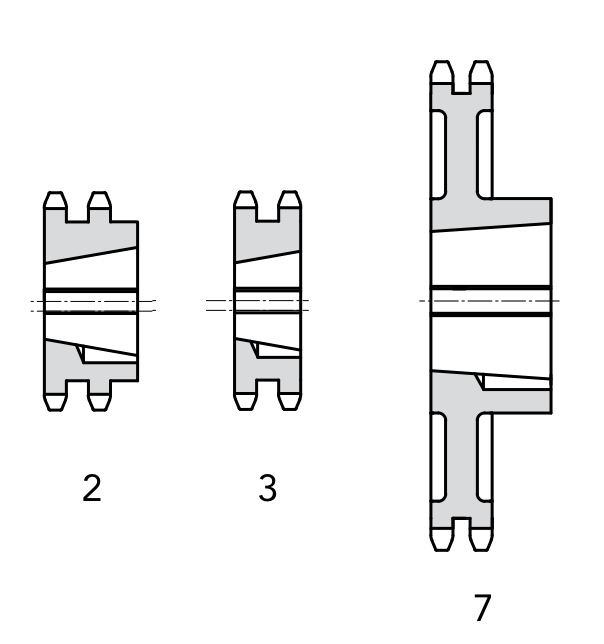

Duplex Taper-Lock® chain sprocket for 10B-2 roller chain (5/8″ pitch). The Exec. type column refers to the hub execution figures 2, 3 and 7 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Material | Weight |
|---|---|---|---|---|---|---|---|---|
17215015 |
15
|
052-15
|
1210
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
0.38 kg
|
17215016 |
16
|
052-16
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
0.42 kg
|
17215017 |
17
|
052-17
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
0.47 kg
|
17215018 |
18
|
052-18
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
0.66 kg
|
17215019 |
19
|
052-19
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
0.72 kg
|
17215020 |
20
|
052-20
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
0.87 kg
|
17215021 |
21
|
052-21
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
1.01 kg
|
17215022 |
22
|
052-22
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
1.18 kg
|
17215023 |
23
|
052-23
|
1610
|
3
|
— | 25.5 mm
|
Steel C 45 UNI 5007
|
1.35 kg
|
17215024 |
24
|
052-24
|
2012
|
2
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.45 kg
|
17215025 |
25
|
052-25
|
2012
|
2
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.55 kg
|
17215026 |
26
|
052-26
|
2012
|
2
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.75 kg
|
17215027 |
27
|
052-27
|
2012
|
2
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.98 kg
|
17215028 |
28
|
052-28
|
2012
|
2
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
2.03 kg
|
17215030 |
30
|
052-30
|
2012
|
2
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
2.63 kg
|
17215038 |
38
|
052-38
|
2517
|
2
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
3.1 kg
|
17215045 |
45
|
052-45
|
2517
|
7
|
110 mm
|
45 mm
|
Cast iron GG20 UNI 5007
|
4.0 kg
|
17215057 |
57
|
052-57
|
2517
|
7
|
124 mm
|
45 mm
|
Cast iron GG20 UNI 5007
|
5.88 kg
|
17215076 |
76
|
052-76
|
3020
|
7
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
9.9 kg
|
17215095 |
95
|
052-95
|
3020
|
7
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
12.8 kg
|
17215114 |
114
|
052-114
|
3020
|
7
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
16.5 kg
|
