Taper-Lock® Chain Sprocket 12B-1 Simplex (3/4″)

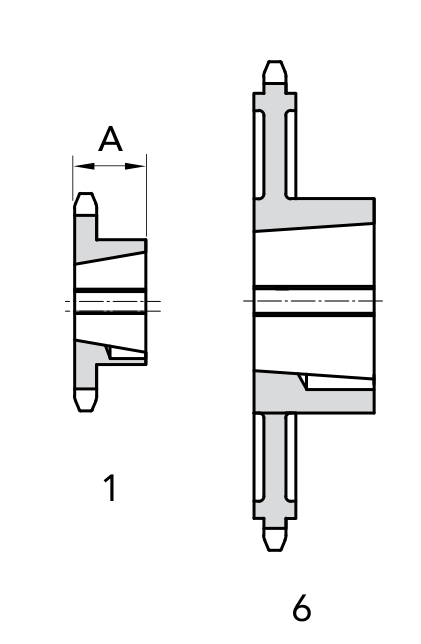

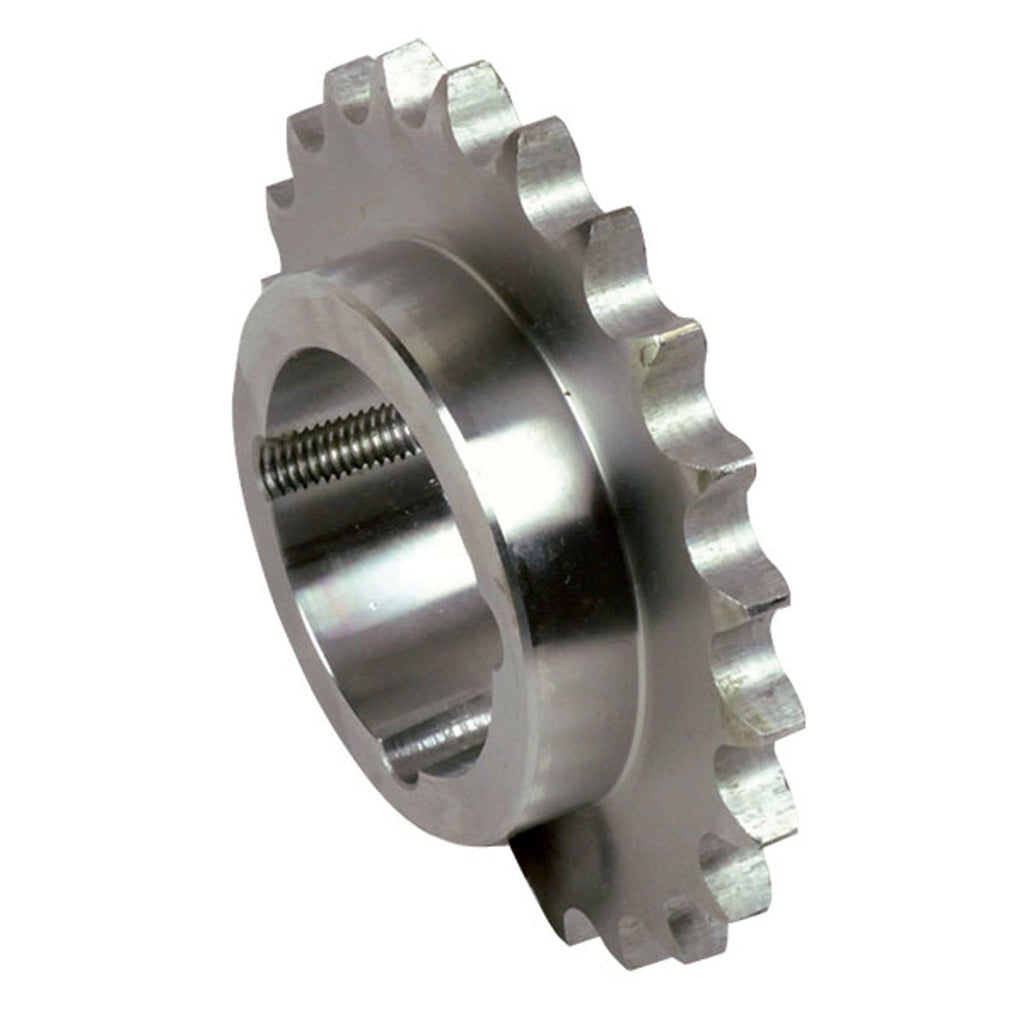

Simplex Taper-Lock® chain sprocket for 12B-1 roller chain (3/4″ pitch). The Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
An induction-hardened-teeth version exists for part of the range — see the Hardened Teeth Taper-Lock® category.
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Material | Weight |
|---|---|---|---|---|---|---|---|---|
17119013 |
13
|
061-13
|
1210
|
1
|
63 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.35 kg
|
17119014 |
14
|
061-14
|
1610
|
1
|
71 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.4 kg
|
17119015 |
15
|
061-15
|
1610
|
1
|
71 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.44 kg
|
17119016 |
16
|
061-16
|
1610
|
1
|
75 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.53 kg
|
17119017 |
17
|
061-17
|
1610
|
1
|
76 mm
|
25 mm
|
Steel C 45 UNI 5007
|
0.66 kg
|
17119018 |
18
|
061-18
|
2012
|
1
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
0.86 kg
|
17119019 |
19
|
061-19
|
2012
|
1
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
0.94 kg
|
17119020 |
20
|
061-20
|
2012
|
1
|
90 mm
|
32 mm
|
Steel C 45 UNI 5007
|
1.04 kg
|
17119021 |
21
|
061-21
|
2517
|
1
|
102 mm
|
45 mm
|
Steel C 45 UNI 5007
|
1.24 kg
|
17119022 |
22
|
061-22
|
2517
|
1
|
102 mm
|
45 mm
|
Steel C 45 UNI 5007
|
1.6 kg
|
17119023 |
23
|
061-23
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
1.7 kg
|
17119024 |
24
|
061-24
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
1.81 kg
|
17119025 |
25
|
061-25
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
1.93 kg
|
17119026 |
26
|
061-26
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
2.04 kg
|
17119027 |
27
|
061-27
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
2.14 kg
|
17119028 |
28
|
061-28
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
2.37 kg
|
17119030 |
30
|
061-30
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
2.6 kg
|
17119038 |
38
|
061-38
|
2517
|
1
|
124 mm
|
45 mm
|
Steel C 45 UNI 5007
|
3.93 kg
|
17119045 |
45
|
061-45
|
2517
|
1
|
124 mm
|
45 mm
|
Steel C 45 UNI 5007
|
5.54 kg
|
17119057 |
57
|
061-57
|
2517
|
6
|
124 mm
|
45 mm
|
Cast iron GG20 UNI 5007
|
6.48 kg
|
17119076 |
76
|
061-76
|
2517
|
6
|
124 mm
|
45 mm
|
Cast iron GG20 UNI 5007
|
9.71 kg
|
17119095 |
95
|
061-95
|
2517
|
6
|
124 mm
|
45 mm
|
Cast iron GG20 UNI 5007
|
12.2 kg
|
17119114 |
114
|
061-114
|
2525
|
6
|
124 mm
|
63 mm
|
Cast iron GG20 UNI 5007
|
16.8 kg
|
No products match the selected filters.
