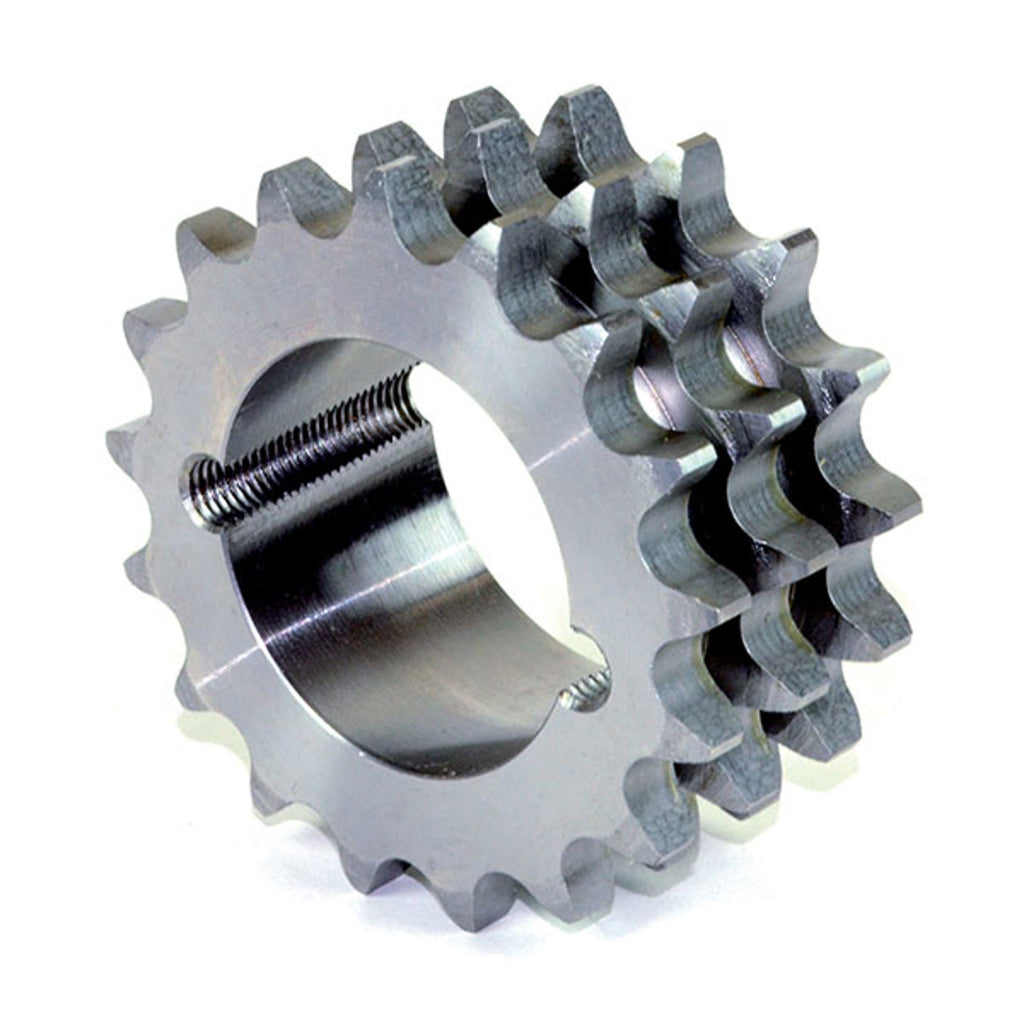

Taper-Lock® Chain Sprocket 12B-3 Triplex (3/4″)

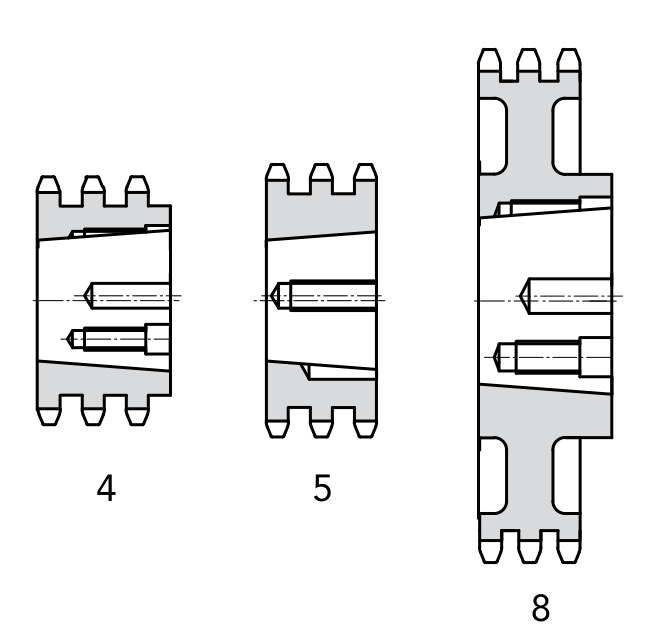

Triplex Taper-Lock® chain sprocket for 12B-3 roller chain (3/4″ pitch). The Exec. type column refers to the hub execution figures 4, 5 and 8 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Material | Weight |
|---|---|---|---|---|---|---|---|---|
17319015 |
15
|
063-15
|
1615
|
5
|
— | 49.8 mm
|
Steel C 45 UNI 5007
|
1.11 kg
|
17319017 |
17
|
063-17
|
2012
|
5
|
— | 49.8 mm
|
Steel C 45 UNI 5007
|
1.75 kg
|
17319019 |
19
|
063-19
|
2012
|
5
|
— | 49.8 mm
|
Steel C 45 UNI 5007
|
2.02 kg
|
17319021 |
21
|
063-21
|
2517
|
5
|
— | 49.8 mm
|
Steel C 45 UNI 5007
|
2.49 kg
|
17319023 |
23
|
063-23
|
2517
|
5
|
— | 49.8 mm
|
Steel C 45 UNI 5007
|
3.0 kg
|
17319025 |
25
|
063-25
|
2517
|
5
|
— | 49.8 mm
|
Steel C 45 UNI 5007
|
3.98 kg
|
17319027 |
27
|
063-27
|
3020
|
4
|
140 mm
|
51 mm
|
Steel C 45 UNI 5007
|
3.9 kg
|
17319030 |
30
|
063-30
|
3020
|
4
|
140 mm
|
51 mm
|
Steel C 45 UNI 5007
|
5.64 kg
|
17319038 |
38
|
063-38
|
3020
|
4
|
140 mm
|
51 mm
|
Steel C 45 UNI 5007
|
11.58 kg
|
17319045 |
45
|
063-45
|
3020
|
4
|
159 mm
|
51 mm
|
Steel C 45 UNI 5007
|
12.11 kg
|
17319057 |
57
|
063-57
|
3020
|
8
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
11.4 kg
|
17319076 |
76
|
063-76
|
3020
|
8
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
17.2 kg
|
17319095 |
95
|
063-95
|
3030
|
8
|
160 mm
|
76 mm
|
Cast iron GG20 UNI 5007
|
27.6 kg
|
17319114 |
114
|
063-114
|
3030
|
8
|
160 mm
|
76 mm
|
Cast iron GG20 UNI 5007
|
35.0 kg
|
No products match the selected filters.
