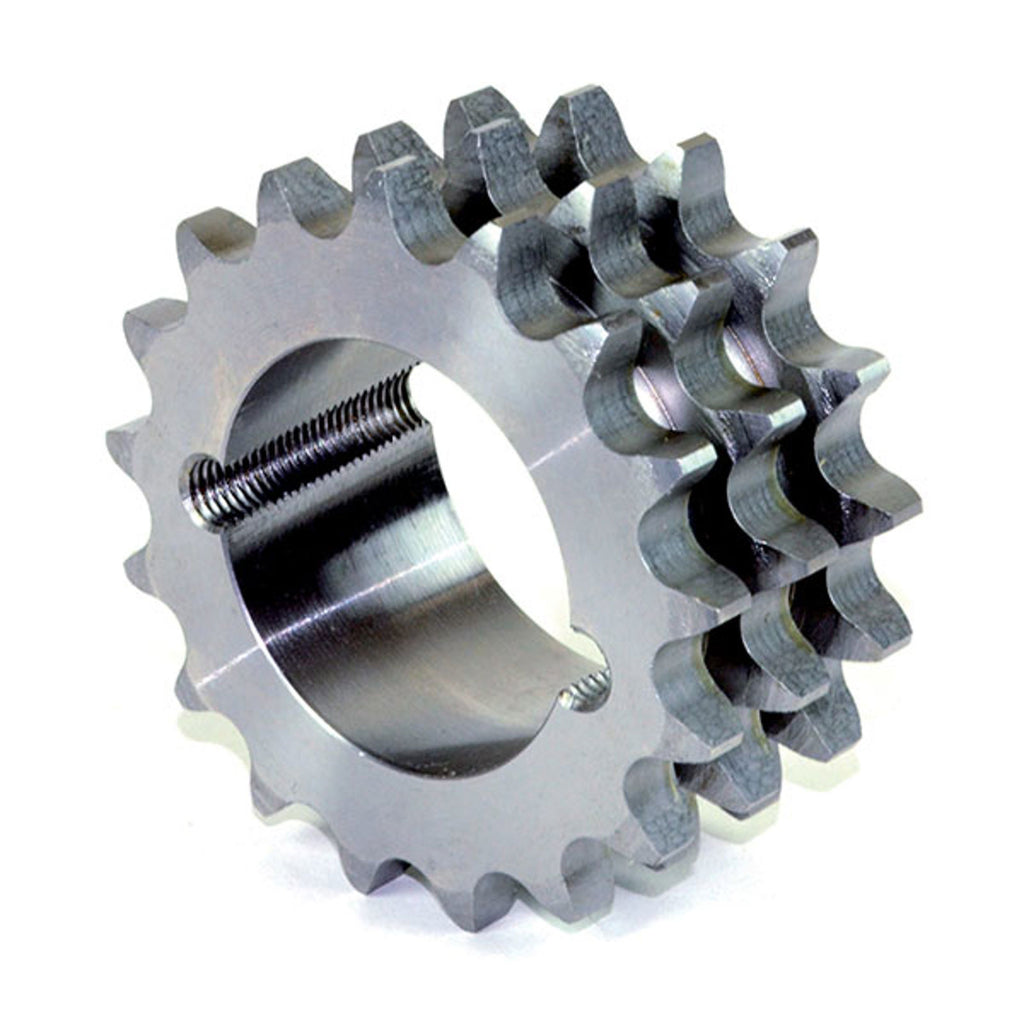

Taper-Lock® Chain Sprocket 16B-3 Triplex (1″)

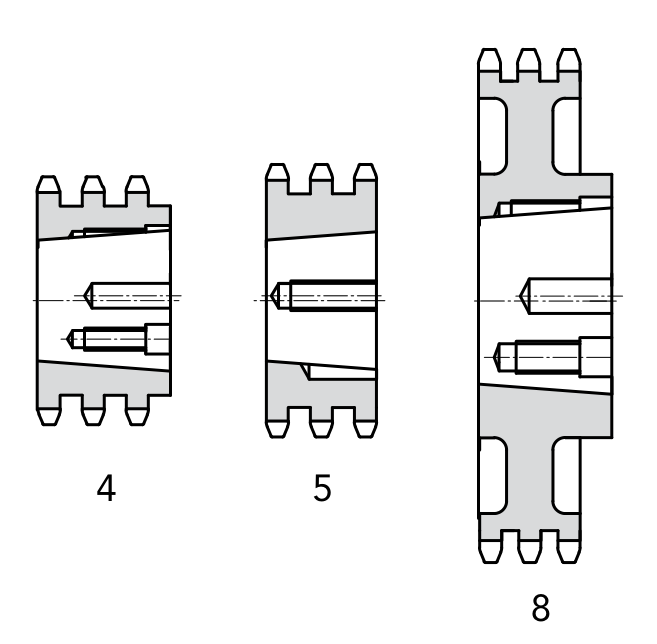

Triplex Taper-Lock® chain sprocket for 16B-3 roller chain (1″ pitch). The Exec. type column refers to the hub execution figures 4, 5 and 8 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Material | Weight |
|---|---|---|---|---|---|---|---|---|
17325017 |
17
|
083-17
|
2517
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
4.29 kg
|
17325019 |
19
|
083-19
|
3020
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
4.36 kg
|
17325021 |
21
|
083-21
|
3020
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
6.69 kg
|
17325023 |
23
|
083-23
|
3525
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
7.8 kg
|
17325025 |
25
|
083-25
|
3525
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
10.93 kg
|
17325027 |
27
|
083-27
|
3525
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
14.06 kg
|
17325030 |
30
|
083-30
|
3525
|
5
|
— | 79.6 mm
|
Steel C 45 UNI 5007
|
19.1 kg
|
17325038 |
38
|
083-38
|
3535
|
8
|
178 mm
|
89 mm
|
Cast iron GG20 UNI 5007
|
19.5 kg
|
17325045 |
45
|
083-45
|
4040
|
8
|
216 mm
|
102 mm
|
Cast iron GG20 UNI 5007
|
29.8 kg
|
17325057 |
57
|
083-57
|
4040
|
8
|
216 mm
|
102 mm
|
Cast iron GG20 UNI 5007
|
38.5 kg
|
17325076 |
76
|
083-76
|
4040
|
8
|
216 mm
|
102 mm
|
Cast iron GG20 UNI 5007
|
53.75 kg
|
17325095 |
95
|
083-95
|
4040
|
8
|
240 mm
|
102 mm
|
Cast iron GG20 UNI 5007
|
80.8 kg
|
17325114 |
114
|
083-114
|
4545
|
8
|
260 mm
|
114 mm
|
Cast iron GG20 UNI 5007
|
120.0 kg
|
