Taper-Lock® Chain Sprocket 20B-1 Simplex (1″1/4)

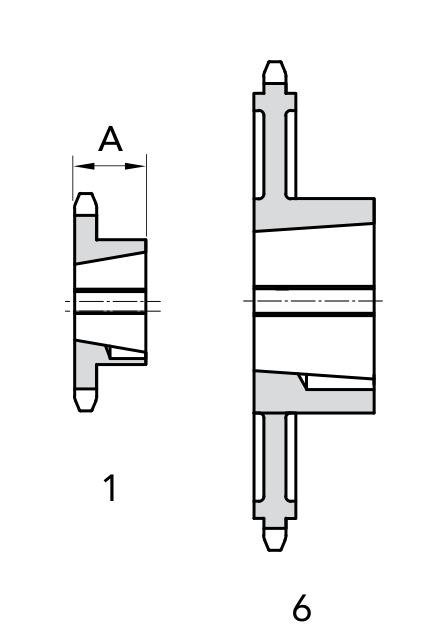

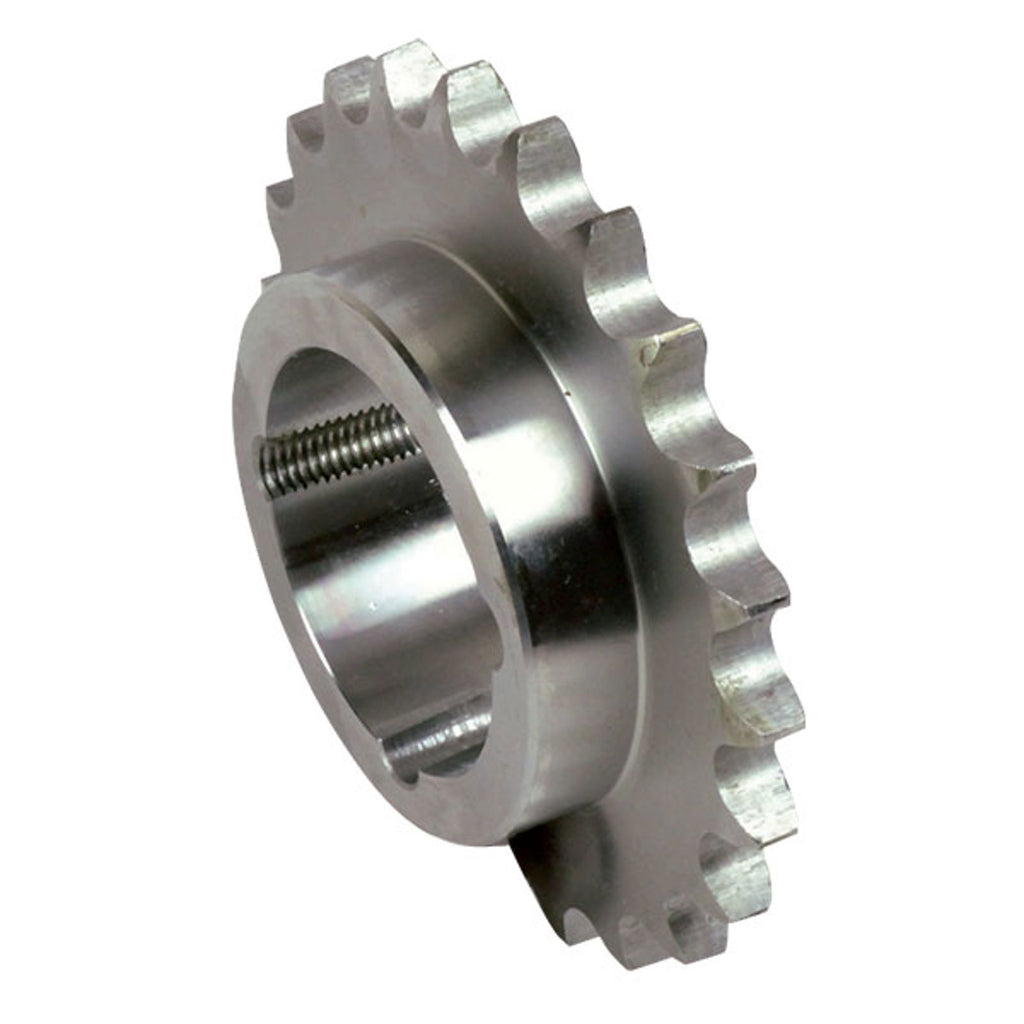

Simplex Taper-Lock® chain sprocket for 20B-1 roller chain (1″1/4 pitch). The Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
An induction-hardened-teeth version exists for part of the range — see the Hardened Teeth Taper-Lock® category.
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Material | Weight |
|---|---|---|---|---|---|---|---|---|
17131015 |
15
|
081-15
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
3.39 kg
|
17131017 |
17
|
081-17
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
5.07 kg
|
17131019 |
19
|
081-19
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
6.75 kg
|
17131021 |
21
|
081-21
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
7.7 kg
|
17131023 |
23
|
081-23
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
8.78 kg
|
17131025 |
25
|
081-25
|
2517
|
1
|
108 mm
|
45 mm
|
Steel C 45 UNI 5007
|
9.5 kg
|
17131030 |
30
|
081-30
|
3020
|
1
|
160 mm
|
51 mm
|
Steel C 45 UNI 5007
|
15.9 kg
|
17131038 |
38
|
081-38
|
3020
|
6
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
12.8 kg
|
17131045 |
45
|
081-45
|
3020
|
6
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
14.5 kg
|
17131057 |
57
|
081-57
|
3020
|
6
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
18.4 kg
|
17131076 |
76
|
081-76
|
3020
|
6
|
160 mm
|
51 mm
|
Cast iron GG20 UNI 5007
|
28.9 kg
|
17131095 |
95
|
081-95
|
3030
|
6
|
160 mm
|
76 mm
|
Cast iron GG20 UNI 5007
|
40.5 kg
|
17131114 |
114
|
081-114
|
4040
|
6
|
240 mm
|
102 mm
|
Cast iron GG20 UNI 5007
|
54.0 kg
|
No products match the selected filters.
